GUIDE TO INSTALLATION AND OPERATION
Kaleido-Solo | 27
5.4 Audio Menu

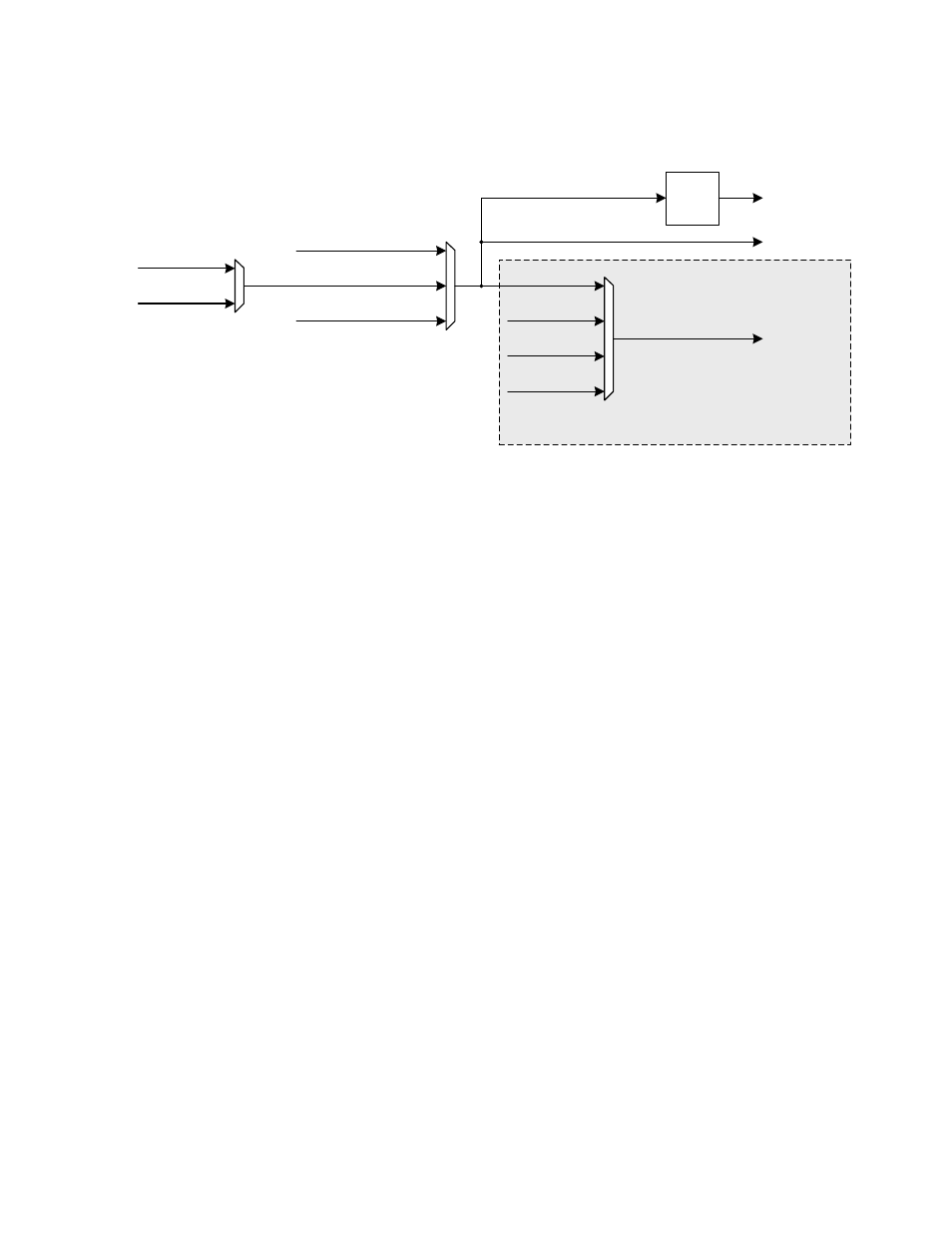

Audio output block diagram
Analog output
SPDIF output
HDMI output
Stereo pair
(Ch. 1-2, 3-4, etc.)
Downmix
OFF (Mute)
Output Stereo
Selection
5.1 no.1
5.1 no.2
OFF (Mute)
Audio HDMI
Analog
volume
control
5.1 no.1
5.1 no.2
Downmix
Channels
Stereo
The audio HDMI selection is not available if the monitor does not support audio. The audio capability is reported by
the monitor‟s EDID or described by configuring the monitor parameter in the safe mode menu or as described in the
custom resolution (see section 5.11)
When an NPCM audio is involved in a downmix selection, the output stereo selection will be muted. Downmix
channels selection is described in section 5.4.2 and section 5.4.4.
When an NPCM audio is involved in an HDMI 5.1, all channels will be muted, even the PCMs. 5.1 Channels selection
is described in section 5.4.2 and section 5.4.1.
To pass a compressed audio pair to the HDMI output, the audio stereo path must be used with the two channels
involved. 5.1 configuration only works for PCM audio.
All audio outputs are configured in section 5.4.1.
