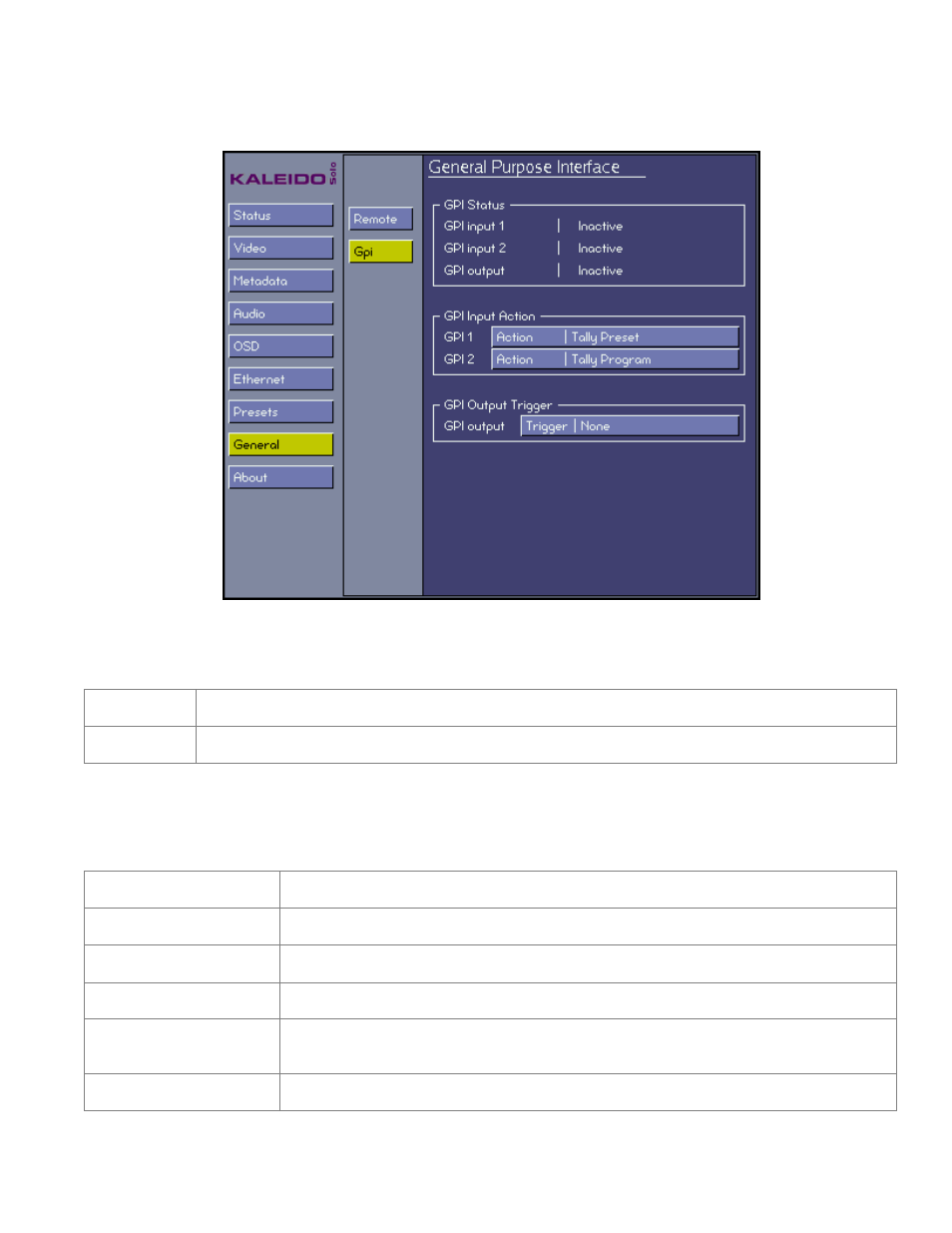

5.9 General - GPI
See section 2.3 for GPI connections.
GPI Status
Active:
Shows if the GPI inputs and/or output are considered active (closed).
Inactive:
Shows if the GPI inputs and/or output are considered inactive (open).
GPI Input Action
You can assign an action from a GPI input. This action will occur when the associated GPI is detected as active.
Here are the possibilities:
No Action:
Nothing.
Load User Preset 1 to 5:
Load a previously-saved associated preset (see section 5.7).
Tally Program:
Activate the left most tally (see section 5.5.9).
Tally Preset:
Activate the right most tally (see section 5.5.9).
Status WARNING:
Activate a Warning mode, UMD and UMD text will turn yellow and a yellow border will
appear on the border of the screen.
Status ERROR:
Activate an Error mode, UMD and UMD text will turn red and a red border will appear
