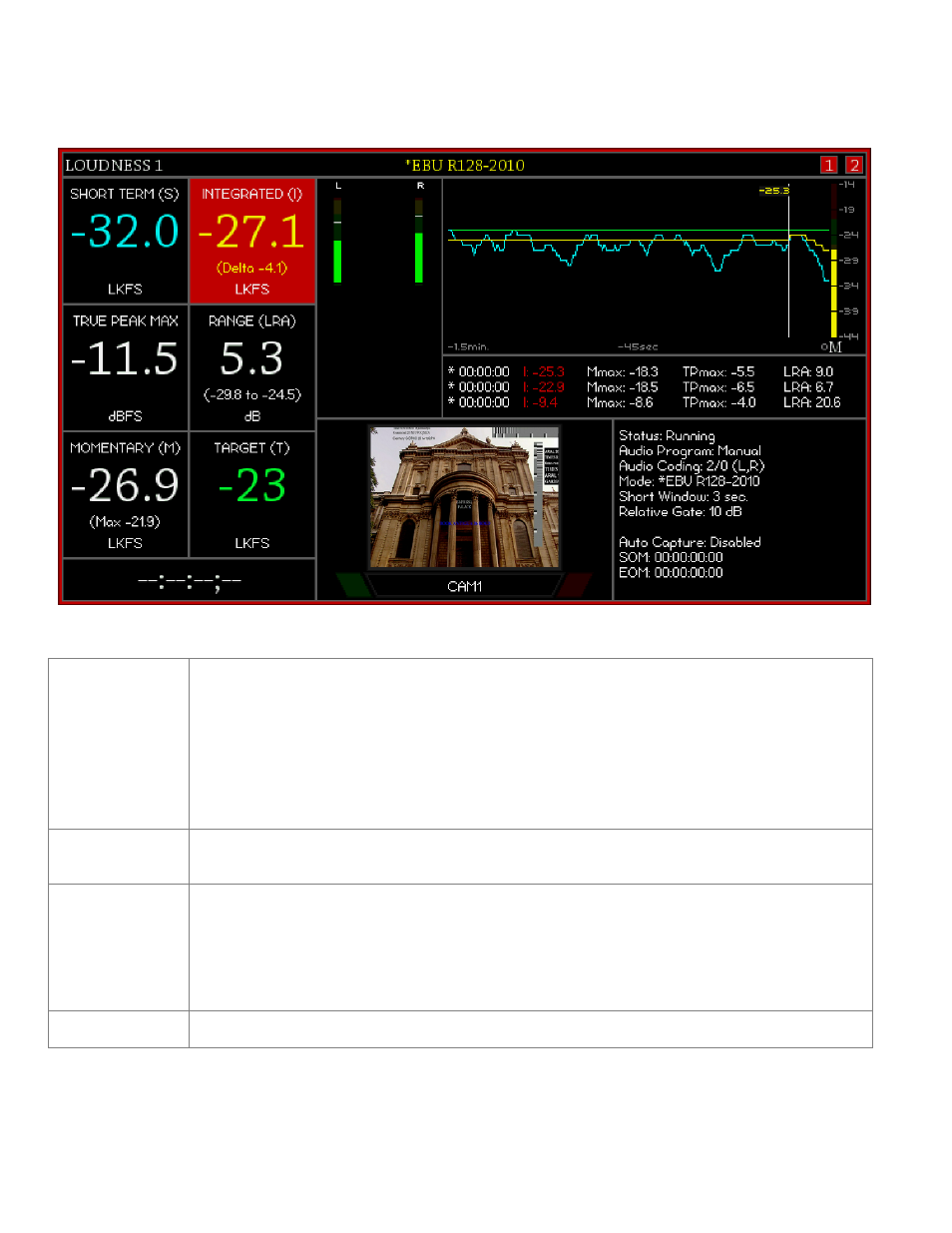

Loudness chart (Full Screen Meter)
The color identifies the traces (top right section) with their numeric values (left section).
Left section Refer to EBU R128, ATSC A/85 or ARIB TR-B32 specification for more details.
Short term (S): Short term, since last reset.
Integrated (I): Integrated, since last reset.
Target (T): Target.
True Peak Max: Maximal true peak, since last reset.
Range (LRA): Loudness range.
Momentary (M): Maximal Momentary, since last reset.
Top right corner Shows if the alarm condition is triggered (RED) by the measurement 1 and/or 2. Both charts are
active at all times, but only one can be displayed at a time.
Top right section Graphic representation of the short term and integrated measurements and the target value.
The time scale is represented at the bottom of this section. The three traces can be
independently shown or hidden (see section 5.5.2
). The “EBU Mode or A85 Mode” is displayed
only when the measurements are compliant to those specifications (see section 5.4.6). Markers
appear when an audio loudness control reset is applied (see section 5.4.7). The integrated
value for the segment will appear next to the marker.
Other Contains ALMs in EBU Digital only, Video, UMD, Tallies, Time code, etc.
