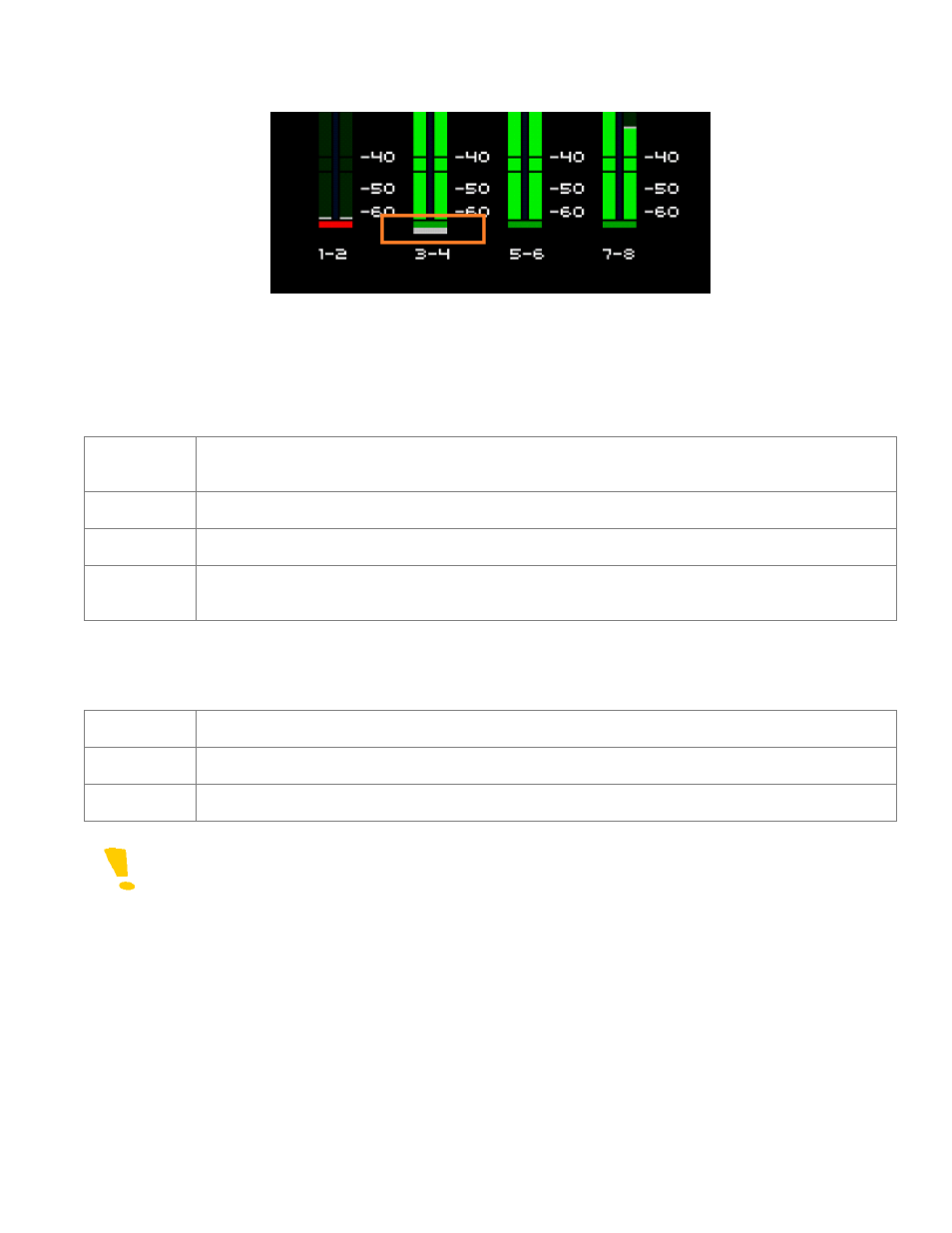

The OSD ALMs indicate which audio pair is being monitored. A grey marker at the bottom of the ALM shows the
selected pair. In this example the audio pair 1-2 is selected. If downmix or off is selected no grey marker is present.
Audio HDMI
Choose whether to send the audio channels selected for monitoring to the HDMI port.
Stereo
Enable stereo audio insertion in HDMI. The selected stereo pair is selected by the Output Stereo
Selection configuration.
5.1 No.1
Enable 5.1 audio insertion in HDMI. The selected channel are define in section 5.4.2.
5.1 No.2
Enable 5.1 audio insertion in HDMI. The selected channel are define in section 5.4.2.
Off
Disable audio insertion in HDMI (this could help with some monitors that do not support
compressed audio).
Volume (Analog)
Adjust the volume of the Kaleido-
Solo‟s analog audio output.
0 dB
The input level is unchanged.
...
-96 dB
The input level is attenuated.
Note that the audio output volume can also be adjusted by pressing the UP and DOWN keys when you
are in normal operation (i.e. menu not displayed).
