1. Overview: Location and Function of Parts 14
Viewfinder/Monitor Screen
During shooting (recording or standby) and playback, the information selected in Monitoring >
Overlays/Frame Line > Overlay A/B Setup (page 79) in the full menu is displayed.

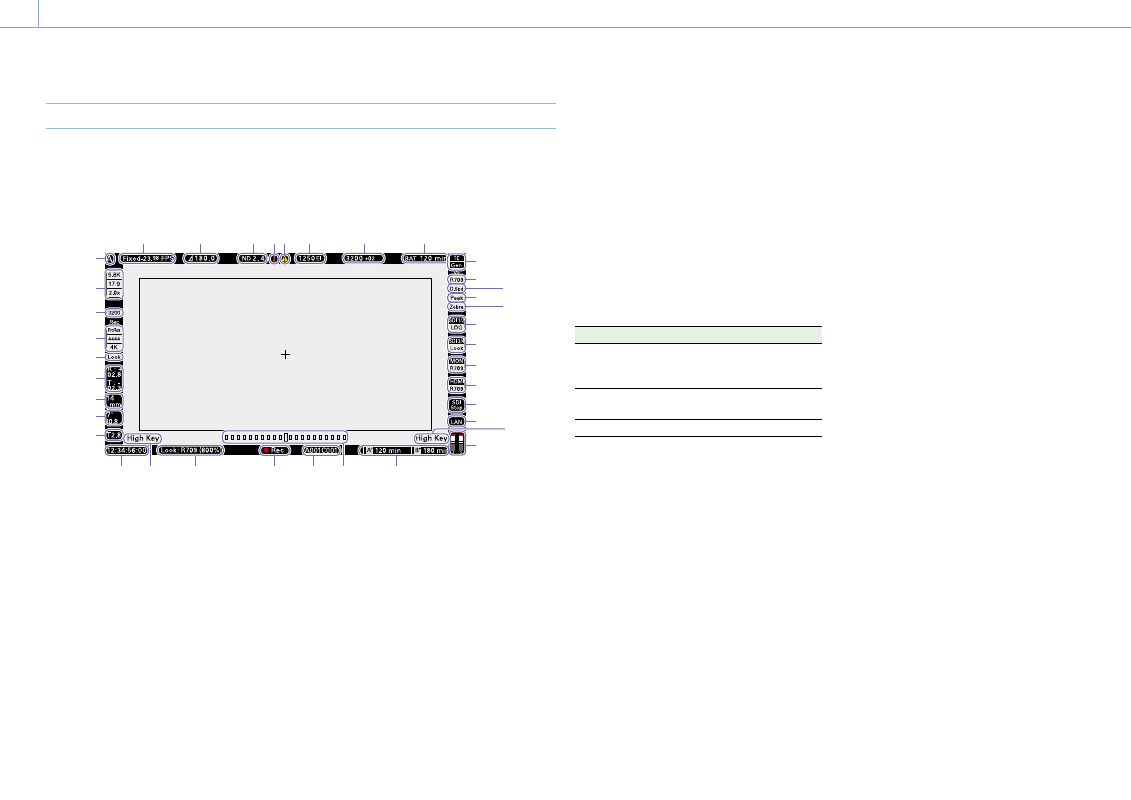

Information displayed on the screen while recording
29
1 2 3 6 4 5 7 8
22 23 25 26 24 27 28
10
9
11
14
15
16
17
18
19
21
12 13
20
35
30
31
32
34
33
36
37
1. Recording frame rate indicator
Displays the recording frame rate and project
frame rate.
2. Shutter angle/shutter speed indicator
Displays the shutter angle or shutter speed
of the electronic shutter, according to the
Technical > System Configuration (page 87)
setting in the full menu.
3. ND filter indicator
Displays the density of the ND filter. The
display value is a LOG (base 10) value
(page 66).
CLEAR
0.3 (1/2)
0.6 (1/4)
0.9 (1/8)
1.2 (1/16)
1.5 (1/32)
1.8 (1/64)
2.1 (1/128)
2.4 (1/256)
4. Thermometer icon
Displayed when a high temperature warning
message is issued.
The description is displayed in the Info
category in the menu.
5. Warning icon
Displayed when other than a high temperature
warning message is issued.
The description is displayed in the Info
category in the menu.
6. Exposure index (EI)/gain indicator
Displays the EI value, or the gain value (dB
units) set by an RM-B170 or other remote
control unit.
[Note]
The gain value is displayed only when Technical
> Special Configuration > RM/RCP Paint Control
(page 91) is set to On in the full menu.
7. Color temperature indicator
Displays the color temperature and Tint value
of the white balance.
8. Battery capacity/voltage indicator
Displays the following indicators according to
the type of battery power source.
Battery type Display
Sony Info battery Battery remaining capacity
and remaining recording
time
Anton/Bauer
battery Remaining battery capacity
(% indicator)
Other batteries Input voltage
9. Timecode external lock indicator/Genlock
status indicator
Displays locked status when the timecode is
locked to an external source. Displays locked
status when genlocked.
10. VF LUT indicator
Displays the viewfinder LUT (page 70).
11. VF Double Speed Scan indicator
Displays the on/off state of the function for
doubling the frame rate of the viewfinder
display.
12. VF Peaking indicator
Displays the on/off state of the peaking
function of the viewfinder display.
13. VF Zebra indicator
Displays the on/off state of the zebra function
of the viewfinder display (page 52).
14. SDI OUT 1/2 connector LUT indicator
Displays the LUT setting of the SDI OUT 1/2
connectors (page 68).
15. SDI OUT 3/4 connector LUT indicator
Displays the LUT setting of the SDI OUT 3/4
connectors (page 69).
16. Monitor LUT indicator
Displays the LUT setting of the Monitor output
(page 69).
17. HDMI LUT indicator
Displays the LUT setting of the HDMI output
(page 70).
