Qty Description
1 Bracket body
1 Pole clamp bracket
1 Connecting piece 1
1 Connecting piece 2
1 50mm, 1.98” long ¼” hex bolt
3 ¼” hex nuts
1 27mm, 1.06” long ¼” hex bolt
3 Flat washers 15mm, 0.59”
3 Locking washers 10mm, 0.39” long
1 U bolt
4 ¼-20 lock washers

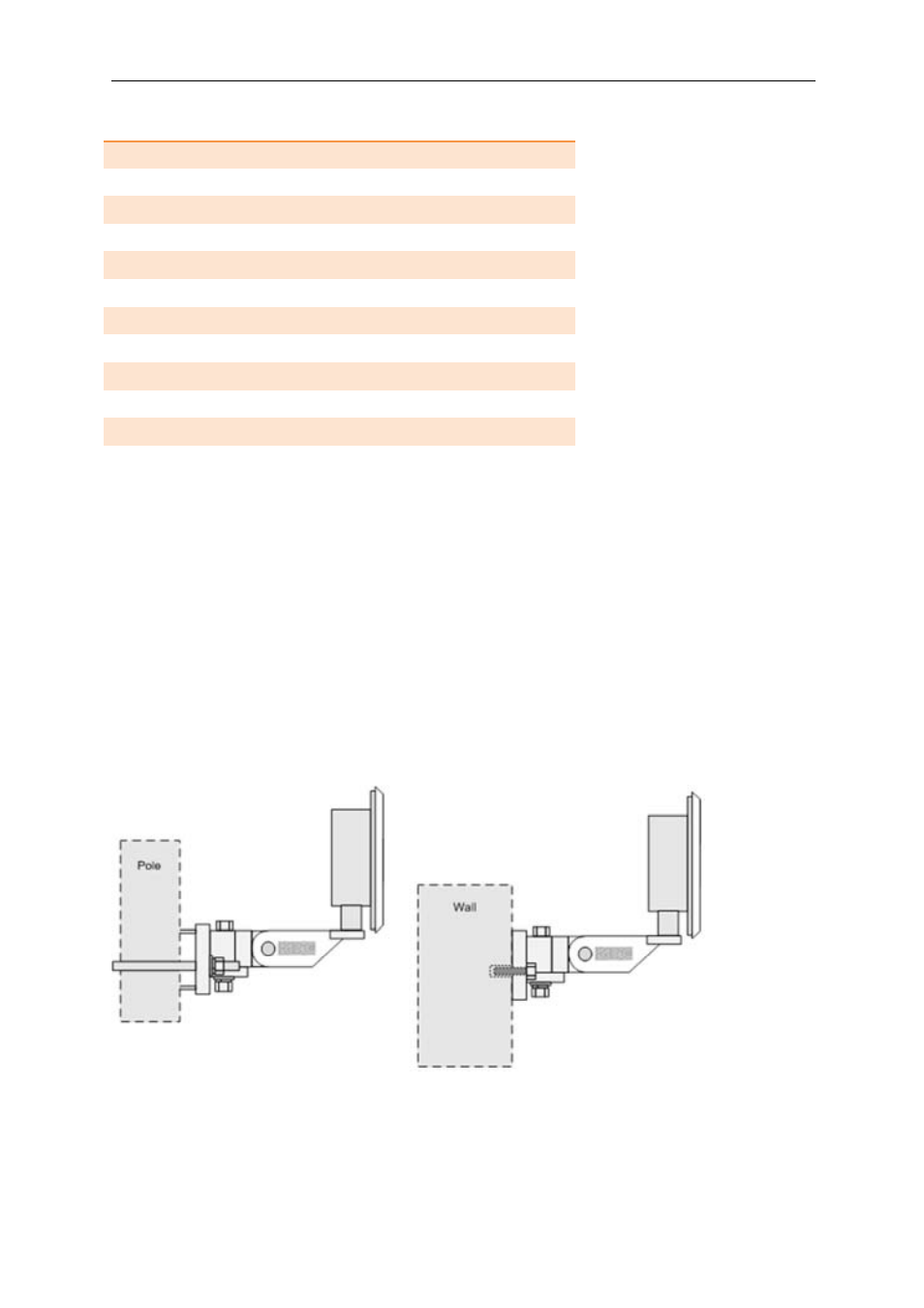

• Remove all packaging material
• Remove 50mm bolt, flat washer, locking washer and hex nut.
• Mount back plate to front WESII assembly plate.
• Replace flat washer, locking washer and hex nut.
• Remove ‘U’ shaped bolt.
• Bolt the unit to the pole.
• Up/Down Alignment offers one position when using the pre-fabricated channel
lock grooves on the swivel brackets. Directional antennas may require additional
up/down alignment angles than those allowed on the pre-fabricated grooves. To
achieve different angles, remove the 50mm Hex bolt. Insert the longer bolt and
add the star washer. Re-connect and tighten.
• Position the WESII unit to face the WESII unit at the other end of the link.
• Carry out the alignment process – see Section 10.4 for instructions and Section 7
for LED status information.
• When in the best position, tighten.
