9.5.2 Client configuration for point-to-multipoint - EMEA
Step 1: Remove the WESII PoE Clients or the WESII non-PoE Clients, Power Supply
Units (PSUs) and Power Injector Modules (PIMs) (for non-PoE units only)
from the box.

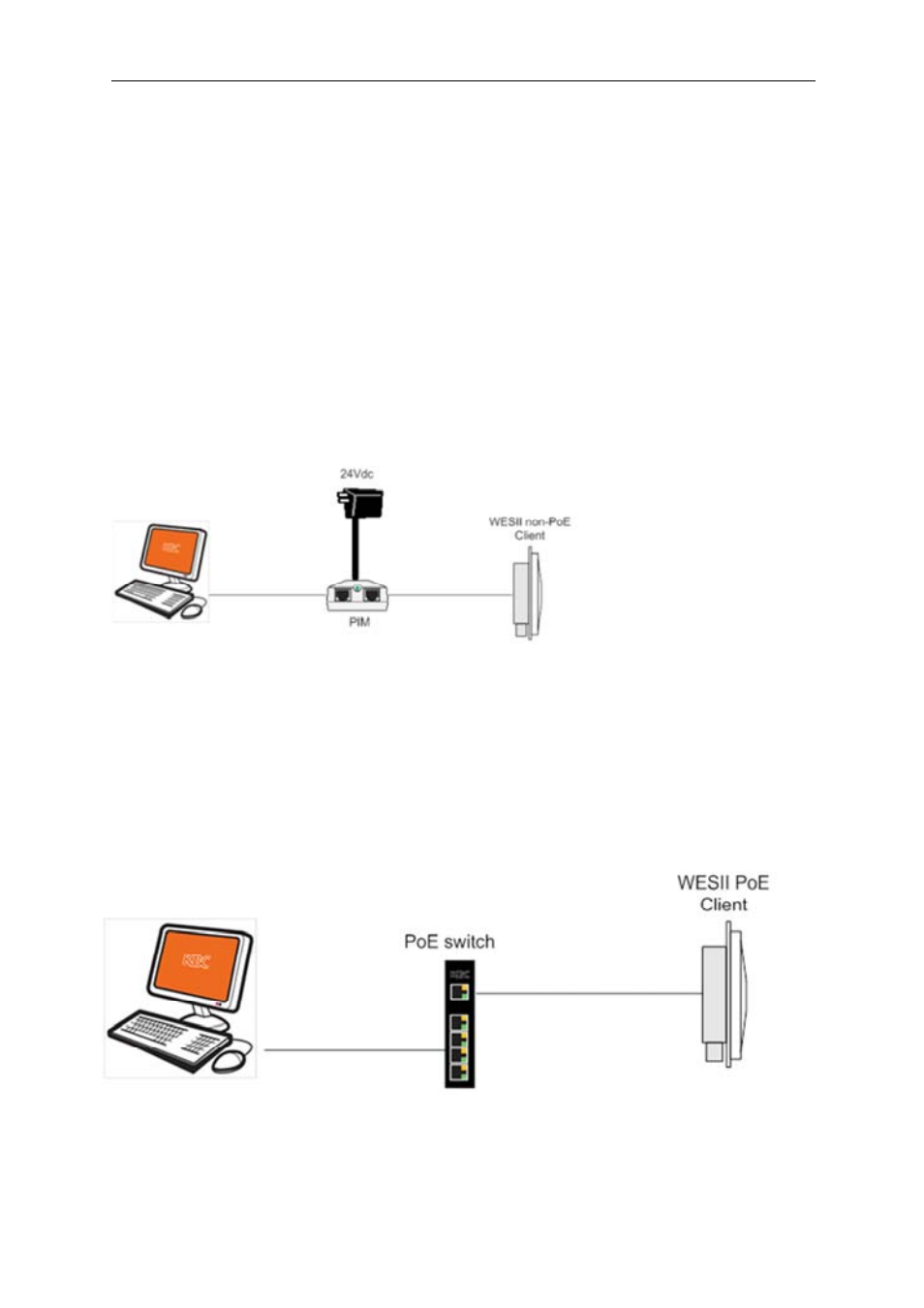

Step 2a: For the WESII non-PoE units:
Connect the first Ethernet straight through cable from the ‘IN’ on the PIM
to either a laptop or a PC LAN port.
Connect the second Ethernet straight through cable from ‘OUT’ on the
same PIM to the WESII Host LAN port.
Apply power to the PIM with the provided 24Vdc PSU and allow 60 seconds
for the unit to boot up.
Step 2b: For the WESII PoE units:
Connect an Ethernet cable from the PSE device (eg. Ethernet switch) to
the LAN port of the WESII unit.
Connect a second Ethernet cable from another port on the PSE to the
laptop or PC LAN port.
Apply power to the PSE device and allow 60 seconds for the unit to boot
up.
Step 3: Set the static IP address on the laptop to the 192.168.1.x subnet.
