27
3.2 M
ECHANICAL
SETTINGS
ALS
380
WARNING!
Risk of injury due to moving or rapidly rotat-
ing parts!
➔
Before carrying out the mechanical set-
tings, ensure that the machine is
switched off at the main switch.
3.2.1
Setting the ribbon guides
Operator panel support
➔
Loosen the knurled thumb screws on the guide
rings [19A].
➔
Setting the ribbon guides
– Distance between label ribbon and front plate of
housing: 31.5 mm
– The label ribbon must run between the guides with
as little play as possible, but it must not be pinched.
➔
Tighten the knurled thumb screws on the guide
rings.
Deflection rollers on the rewind unit
➔
Slide the guide bushes onto the deflection
rollers [19B]:
– The label ribbon must not run from the side behind
the dispenser head.

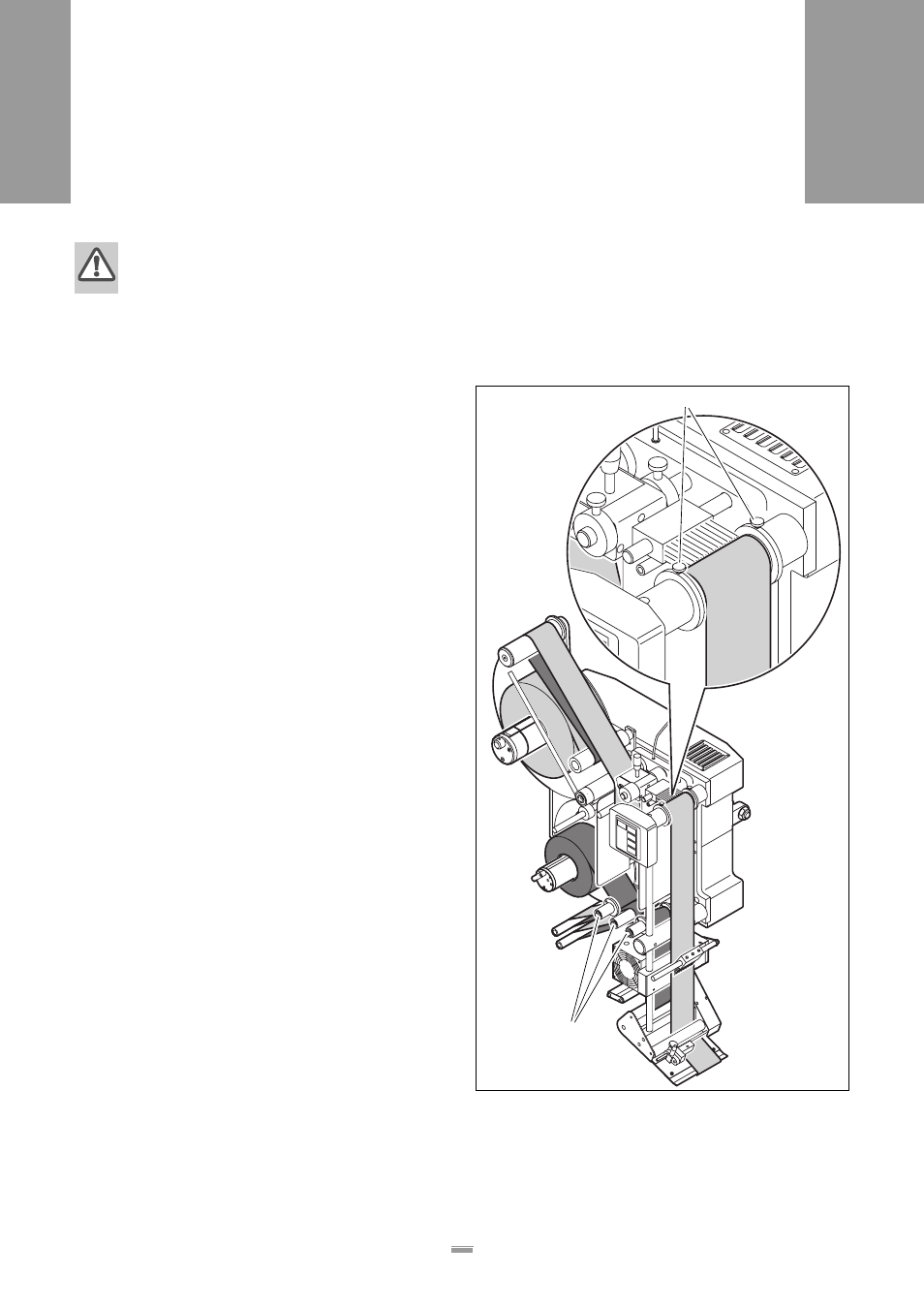

[19] Ribbon guides
B
A
3.2
MECHANICAL SETTINGS
