Flow Control
Limitorque Actuation Systems
FCD LMAIM1341-00
MX-85/140 Maintenance and Spare Parts
15

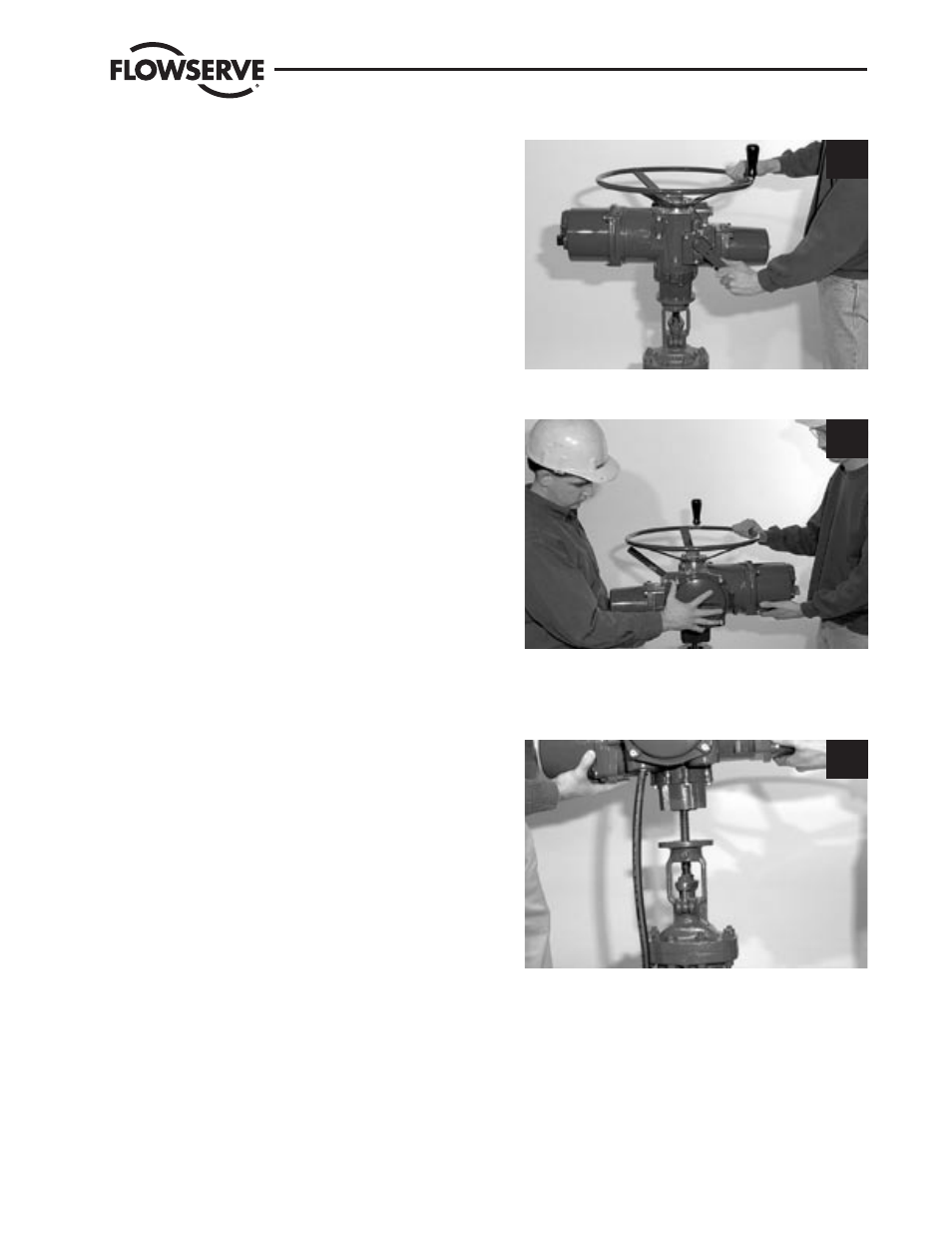

STEP 2
a
WARNING: Potential high-pressure vessel!
Before disassembling your actuator, ensure
that the valve or other actuated device is iso-
lated and is not under pressure.
Declutch the actuator to manual mode.
2
STEP 3
Rotate the handwheel until the actuator lifts off the
threaded stem.
3
3.2.4 Remounting (Type A1/A1E Base)—Actuator and thrust base as a unit
STEP 4
Actuator + thrust base remounting
Declutch the actuator to manual mode. Lift actuator
up to the threaded stem and carefully align threads
with thrust base threaded stem nut.
4
