19
Appendix Tips Settings Playback Connections Contents
Front panel Display Rear panel Index Remote

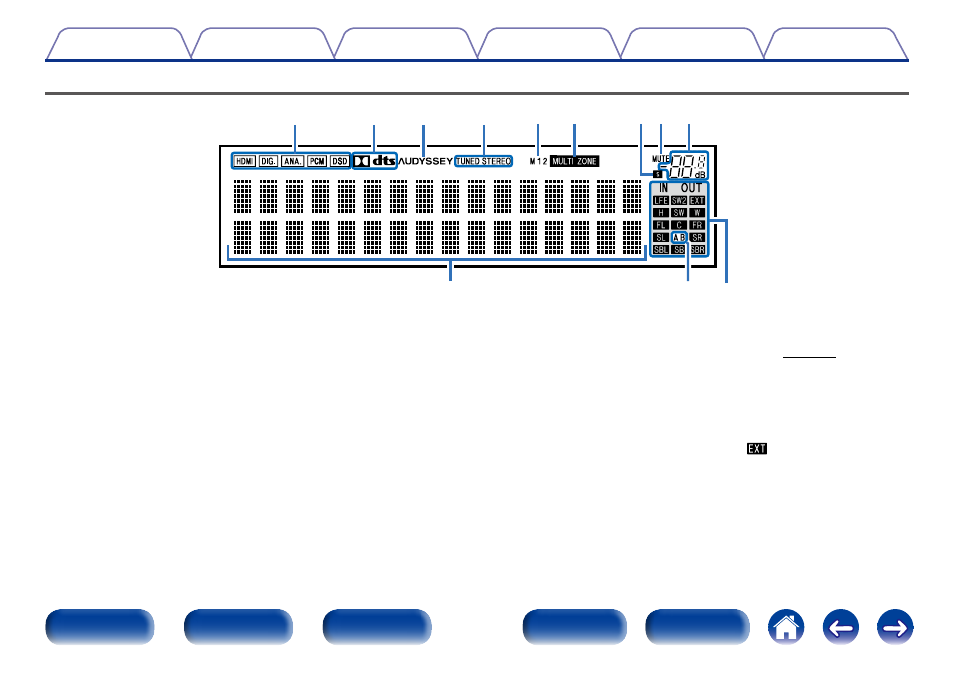

Sub Display
q w e
t y r u i o Q0 Q1 Q2
q Information display
The input source name, sound mode, setting values and other
information are displayed here.
w Front speaker indicator
This lights according to the setting of the front A and B speakers.
e Input/output signal channel indicators
The channel for input/output signals is displayed according to the
setting configured for “Channel Indicators” (vpage 206).
• When “Channel Indicators” is set to “Output” (Default)
These light when audio signals are being output from the speakers.
• When “Channel Indicators” is set to “Input”
These light corresponding to the channels that include the input
signals.
When playing HD Audio sources, the indicator lights when a
signal from an extension channel (a channel other than the front,
center, surround, surround back, front height, front wide or LFE
channel) is input.
