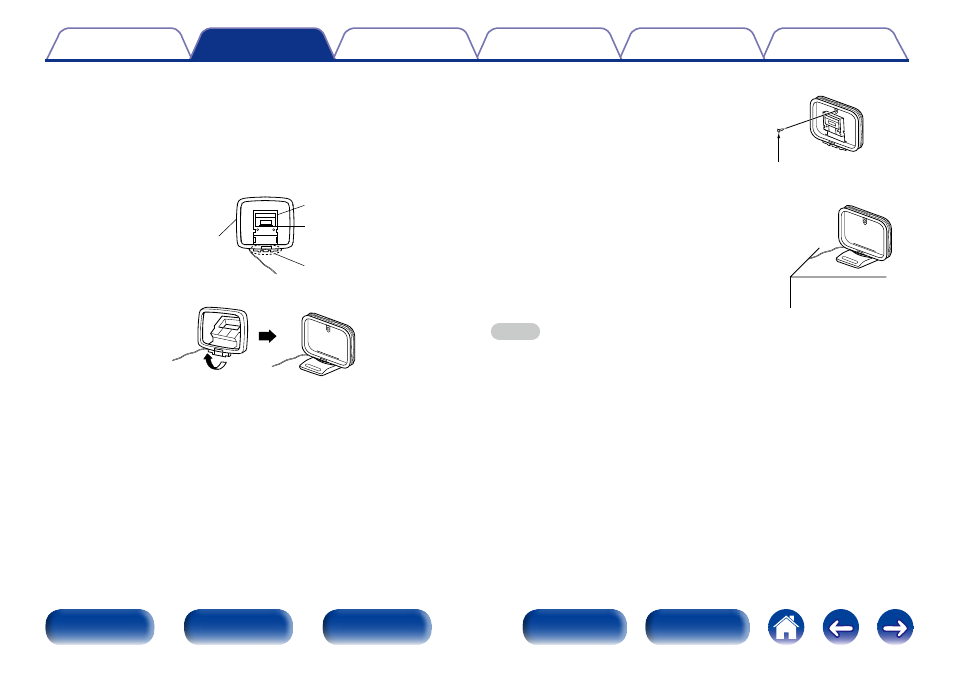

2 AM loop antenna assembly
1
Put the stand section through the bottom of the loop
antenna from the rear and bend it forward.
2
Insert the projecting part into the square hole in the
stand.
Stand
Square
hole
Projecting
part
Loop
antenna
2 Using the AM loop antenna
Suspending on a wall
Suspend directly on a wall without
assembling.
Nail, tack, etc.
Standing alone
Use the procedure shown above to
assemble.
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal parts of the
panel.
• If the signal has noise interference, connect the ground terminal (GND) to reduce
noise.
• If you are unable to receive a good broadcast signal, we recommend installing an
outdoor antenna. For details, inquire at the retail store where you purchased the
unit.
