• Remove the power supply.

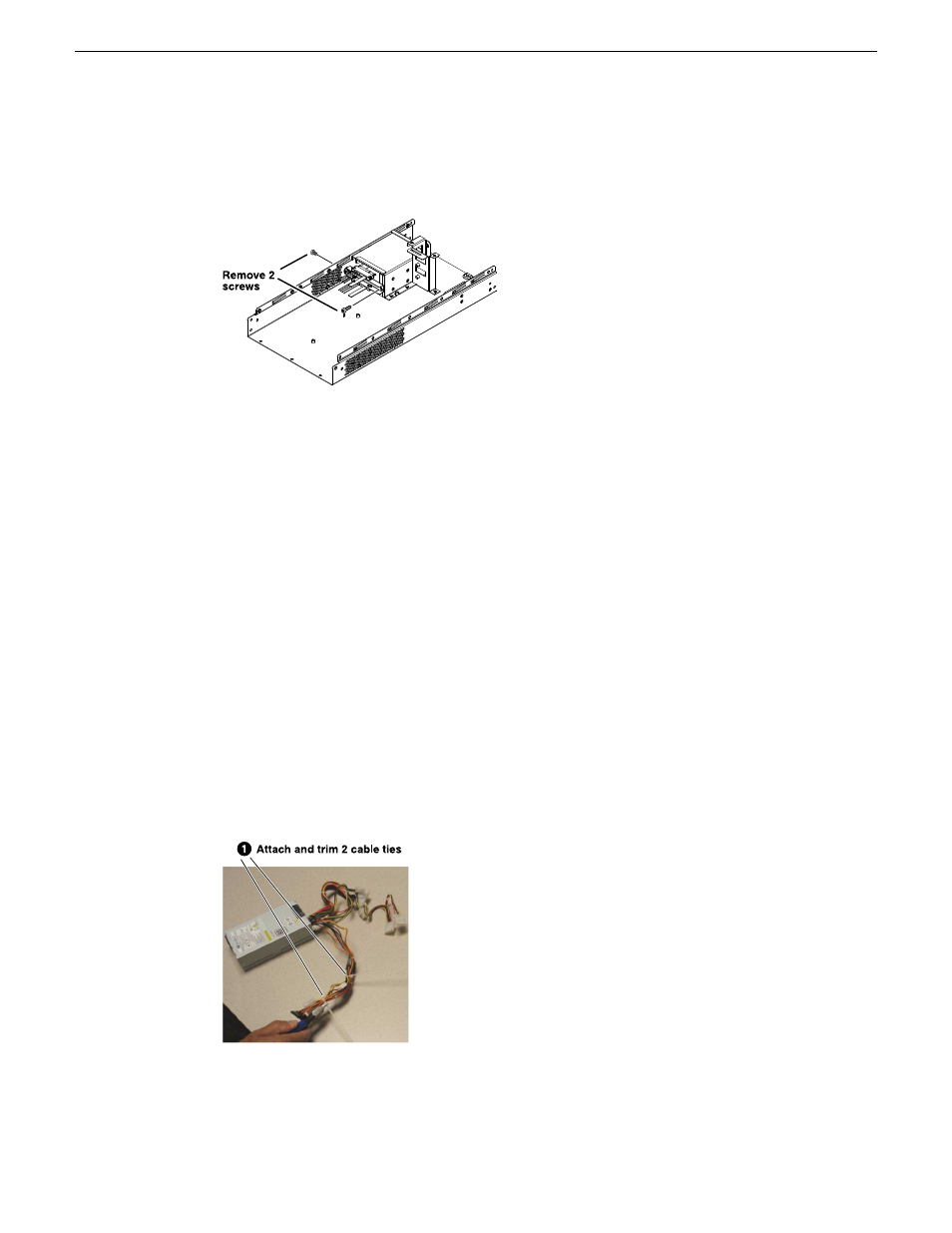

To remove the drive cable assembly proceed as illustrated.
Related Topics
Installing components and dressing cables on page 102
Installing components and dressing cables
Materials needed:
• Cable ties, as provided in FRU kit.
When installing internal components, follow the steps below, especially for cable routing and
dressing.
NOTE: Take care with cable dressing, as cables must be trapped in the lower chassis to maintain
clearance for codec module removal and installation. Incorrectly dressed cables can damage the
codec module.
When following the steps below, also refer to removal procedures earlier in this section, with
re-assembly being the reverse of the removal procedure.
1. If replacing a midplane board, install it in the chassis.
2. If replacing a power supply, pre-dress unused cables as illustrated:
NOTE: Use the faulty power supply that you removed as a model for cable dressing.
3. If replacing a power supply, install it in the chassis.
102 K2 Solo 3G Service Manual 06 November 2012
Removing and replacing FRUs
