Before doing this task, do the following:
•
Remove the front bezel.

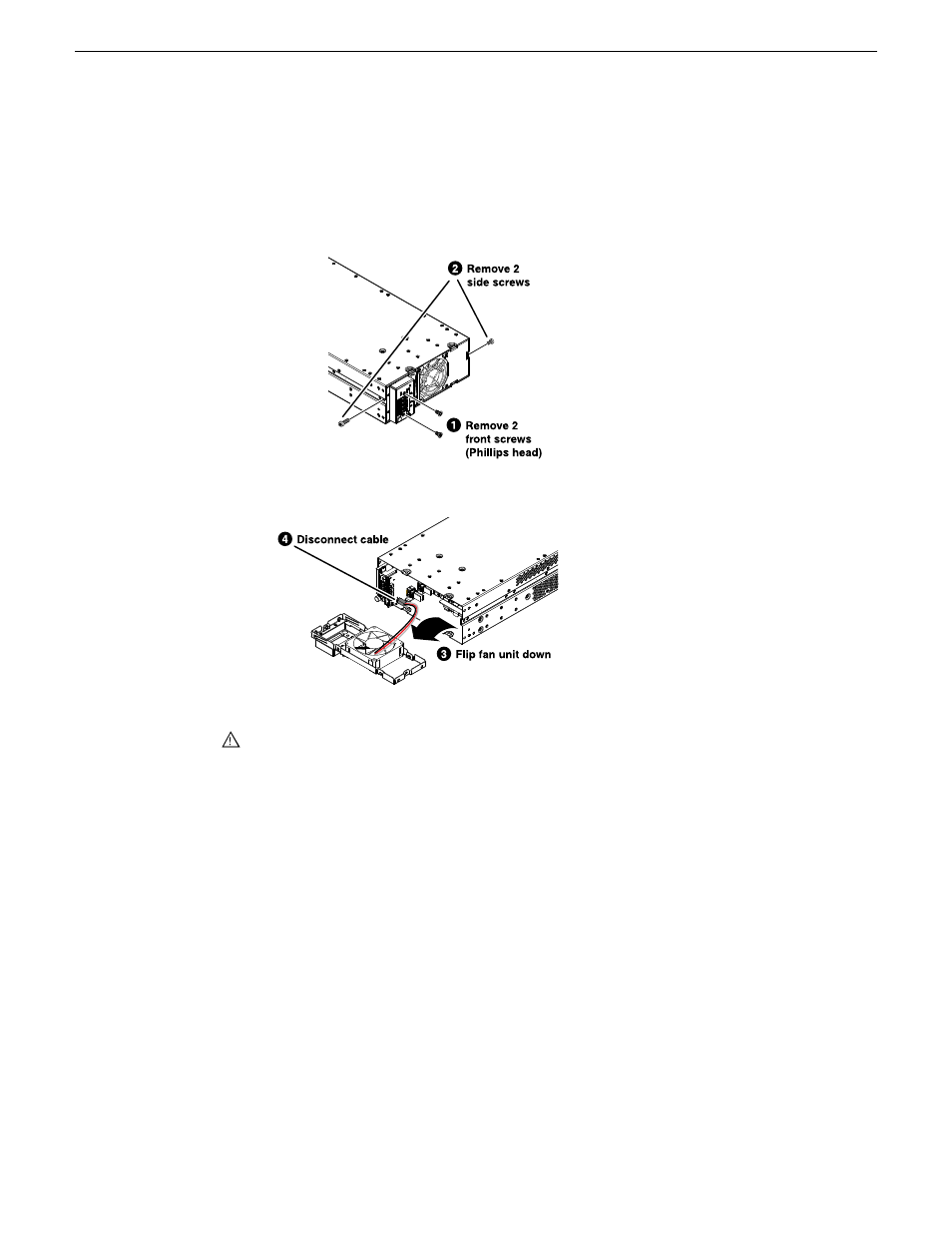

To remove the fan assembly, proceed as illustrated.
CAUTION: Do not remove fan assembly while power is on. The standby button is frequently
bumped during this procedure and if powered, circuits and fans are activated, which can
cause damage.
Fan removal
Additional tools needed:
•
#2 Phillips screwdriver
Before doing this task, do the following:
•
Remove the front bezel.
92
K2 Solo 3G Service Manual
06 November 2012
Removing and replacing FRUs
