12. Open the Modify Team dialog box as follows:
a) In Device Manager | Network Adapters , right-click Control Team and select Properties . The
Properties dialog box opens.
b) Select the Settings tab.
c) Click Modify Team . A dialog box opens.
13. On the Adapters tab, do the following:
a) Select the top entry, which is the adapter name that maps to Control Connection #1 and click
Set Primary .
b) Select the adapter name that maps to Control Connection #2 and click Set Secondary .
14. Click OK and OK and to close dialog boxes.
15. Restart the K2 Solo 3G system.
Next, proceed as follows:
• If network configuration is complete, enable the write filter.
• If continuing with network configuration, your next task is to name team and loopback.
Name team and loopback
Before beginning this task, make sure of the following:
• Adapters are named
• The control team is created
1. If K2 software is installed, disable the write filter, if it is not already disabled.

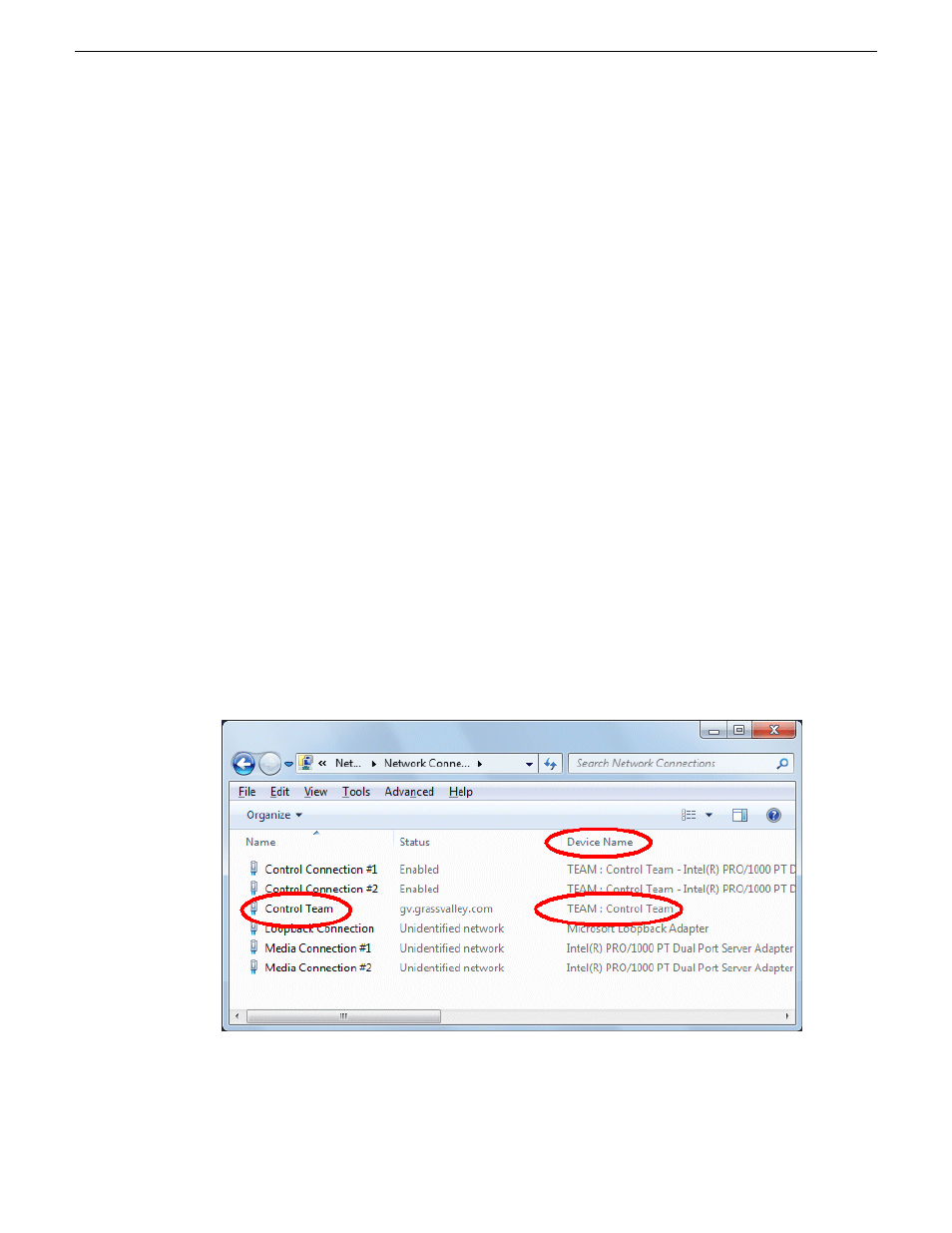

2. On the Windows desktop right-click Start | Control Panel | Network and Sharing Center | Change
adapter settings . The Network Connections window opens.
52 K2 Solo 3G Service Manual 06 November 2012
Service procedures
