3. Click Start .

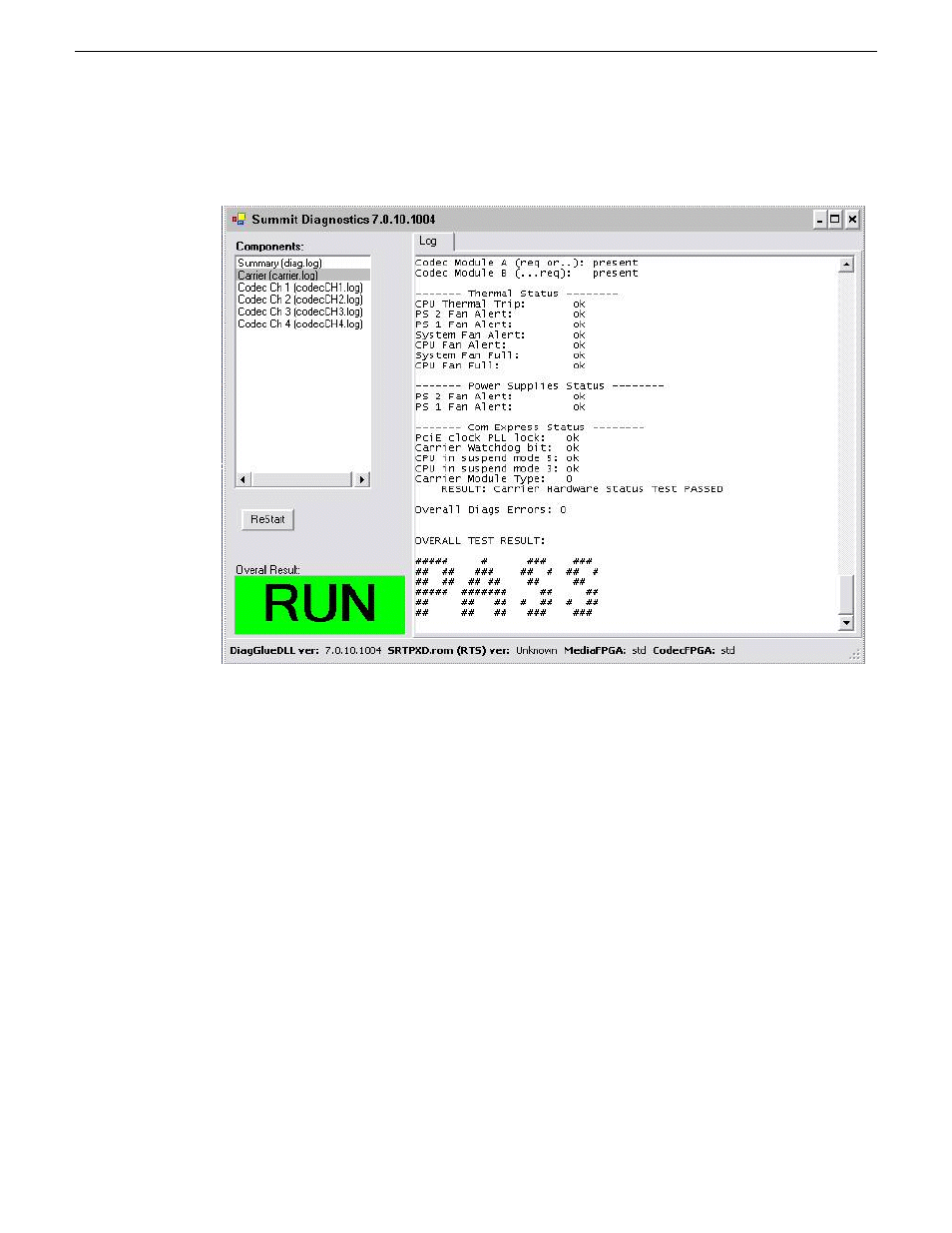

The Overall Result indicator displays RUN while diagnostics are underway.
When diagnostics complete, the Overall Result indicator reports results as follows:
• PASS – There are no problems reported in the diagnostic logs.
• FAIL – There are one or more problems reported in one or more diagnostic logs.
4. To view a diagnostic log, in the Components list, select a log.
The log's contents appear in the Log pane.
5. To close the Summit Diagnostics application, allow any currently running diagnostics to complete,
then click the window close button ( X ) in the upper right corner of the application window.
A "...should be restarted..." message appears.
6. Click OK and then restart the K2 Solo 3G system.
You must restart before you can use the K2 Solo 3G system. Running diagnostics puts the real
time processor and other services in a non-production state.
