4. Setup and Maintenance
4 – 5 Operating Instructions – Rev. 1 / 7.2002
2nd
3rd
Aux Panel
M/E1 M/E2 M/E3 P/P
M/E1 M/E2 M/E3 P/P
M/E1 M/E2 M/E3 P/P
On air On air On air On air
M/E Delegation
M/E1 M/E2 M/E3 P/P
Button in P/P row
+
+
+
+
+
+
+
+
= Test 1
= Test 2
= Test 3
= Test 4
2nd
2nd
2nd
2nd
3rd
3rd
3rd
3rd
Button in M/E1 row
Button in M/E2 row
Button in M/E3 row

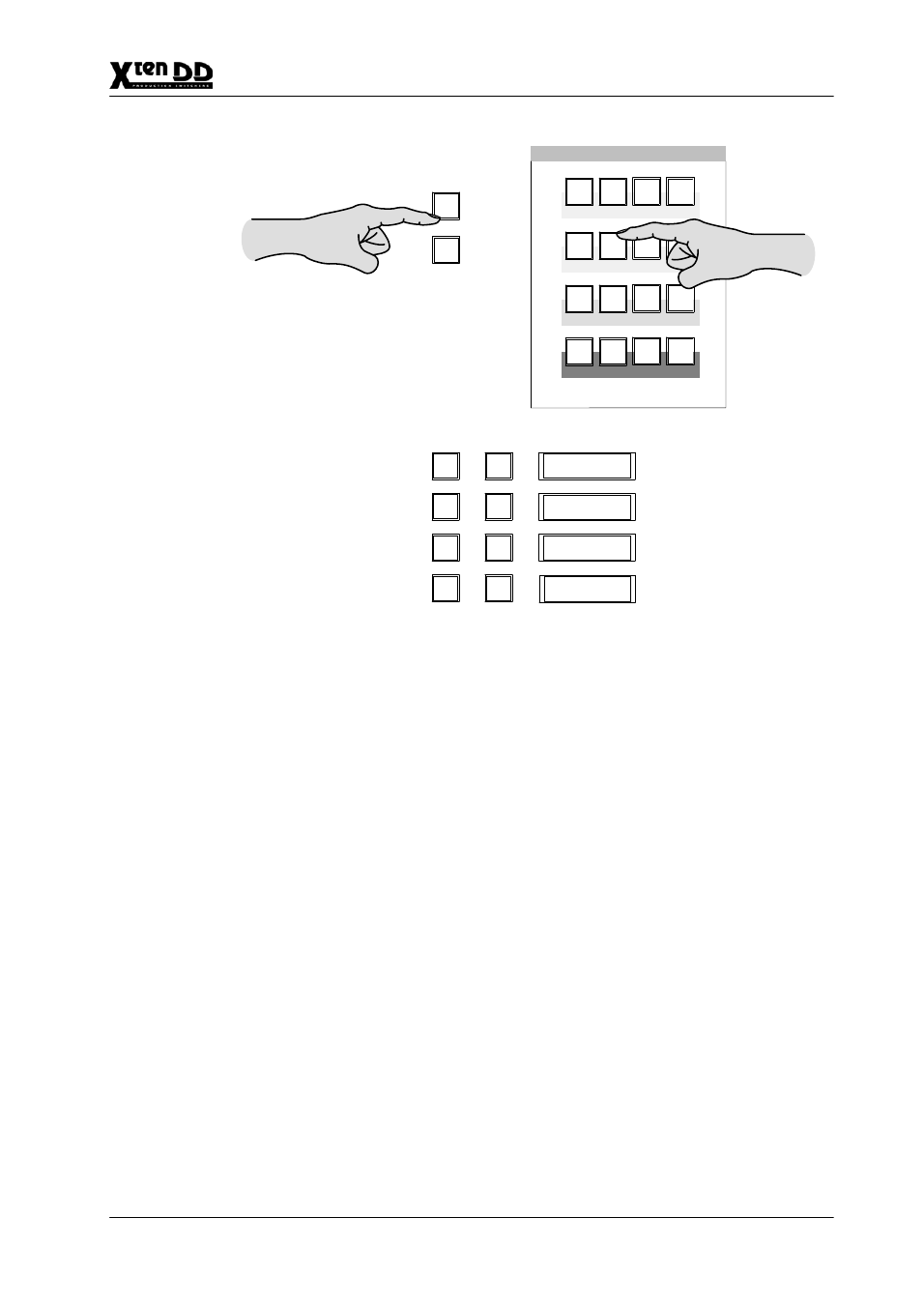

Exit Test mode by pressing the same button again that you have pressed when you
entered the current test mode.
4.3.2 TEST 4
The test shows in the display of the Master TiM/E panel section the last byte of the
IP address of the connected mainframe (EBox).
