User’s Manual of IGS-10020PT / IGS-10020HPT
337

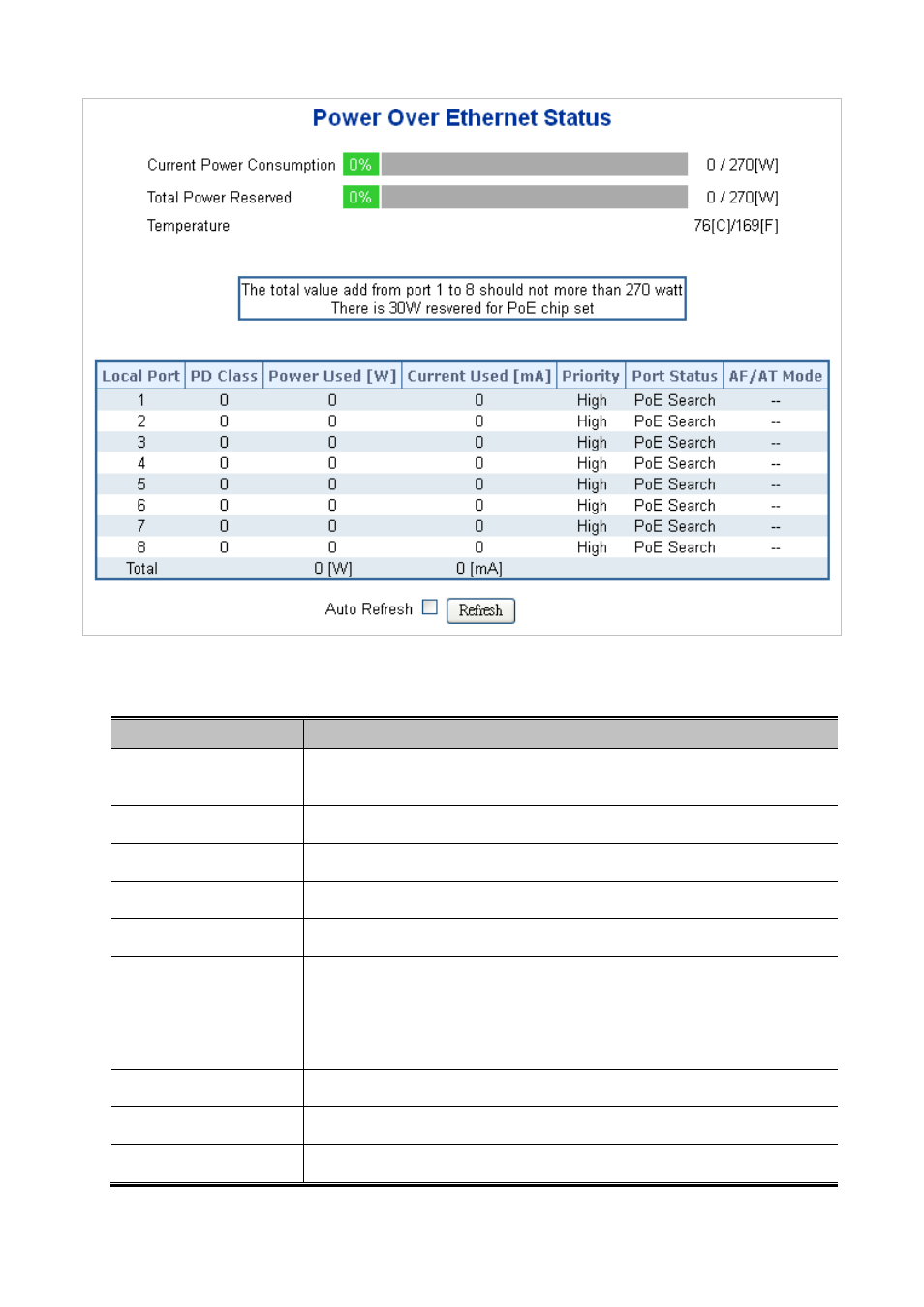

Figure 4-16-4: PoE Status Screenshot
The page includes the following fields:
Object Description
• Current Power
Consumption
Show the total watts usage of Managed PoE Switch.
• Total Power Reserved
Shows how much the total power is reserved for all PDs.
• Temperature 1
Display the current operating temperature of the first PoE chip unit.
• Temperature 2
Display the current operating temperature of the second PoE chip unit.
•
Local Port This is the logical port number for this row.
•
PD Class Display the class of the PD attached to the port, as established by the classification
process. Class 0 is the default for PDs. The PD is powered based on PoE Class
level if system working on Classification mode. A PD shall return Class 0 to 4 in
accordance with the maximum power draw as specified by Table 4-16-1 .
•
Power Used [W] The Power Used shows how much power the PD currently is using.
•
Current Used [mA] The Power Used shows how much current the PD currently is using.
• Priority
The Priority shows the port's priority configured by the user.
