APPENDIX
59
D
Half-rack Coupler Kit
The
Half-Rack Coupler Kit
(sold separately) lets
you mount the UltraLite-mk5 side by side with
another UltraLite-mk5 (or similar unit) in a
standard 19-inch equipment rack. Visit the web
store at motu.com to purchase this kit or contact
your authorized MOTU reseller.
PACKING LIST
■
(2) L-shaped rack mounting brackets (A)
■
(1) Rectangular joiner bracket (B)
■
(4) Hex screws for joiner bracket (C)
■
(1) 2.5 mm L-shaped hex wrench (not pictured)
■
(1) Instruction sheet (this sheet)
Questions? Contact MOTU technical support at
motu.com/support.

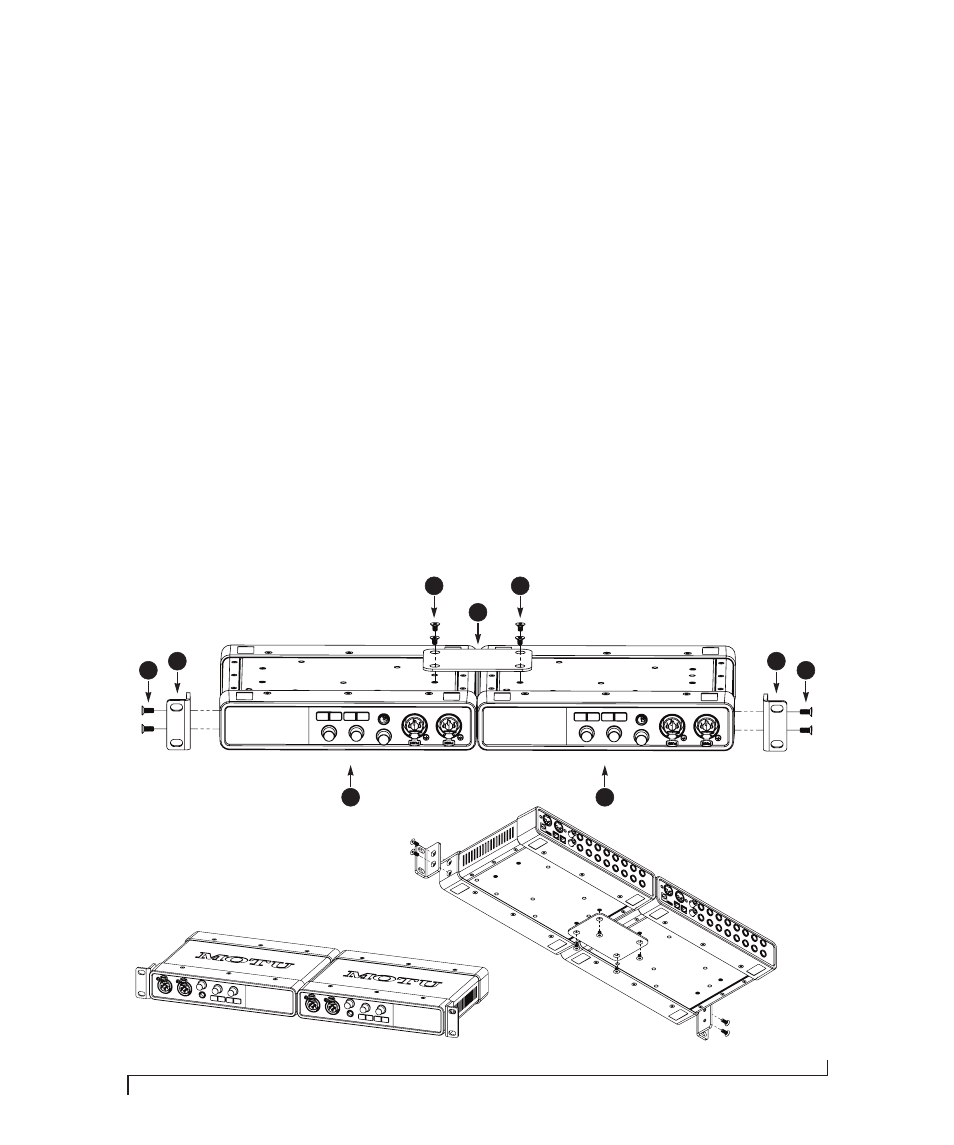

INSTRUCTIONS
1
On a smooth flat surface, place two half-rack
units (D) upside down and side by side. Make sure
their front panels are facing in the same direction.
2
Using the hex wrench and the four (4) hex
screws included with this kit (C), attach the
rectangular joiner bracket (B) as shown.
3
Using the hex wrench, remove the hex screws
(E) on the outer side panels of each half-rack unit
(D).
4
Use the removed screws (E) to attach the half-
rack mounting brackets (A) as shown.
5
Be sure to tighten all screws securely for best
results.
E
E
A
A
C
C
B
D
D
