Function buttons and display appearance in each mode
█ MIXER mode

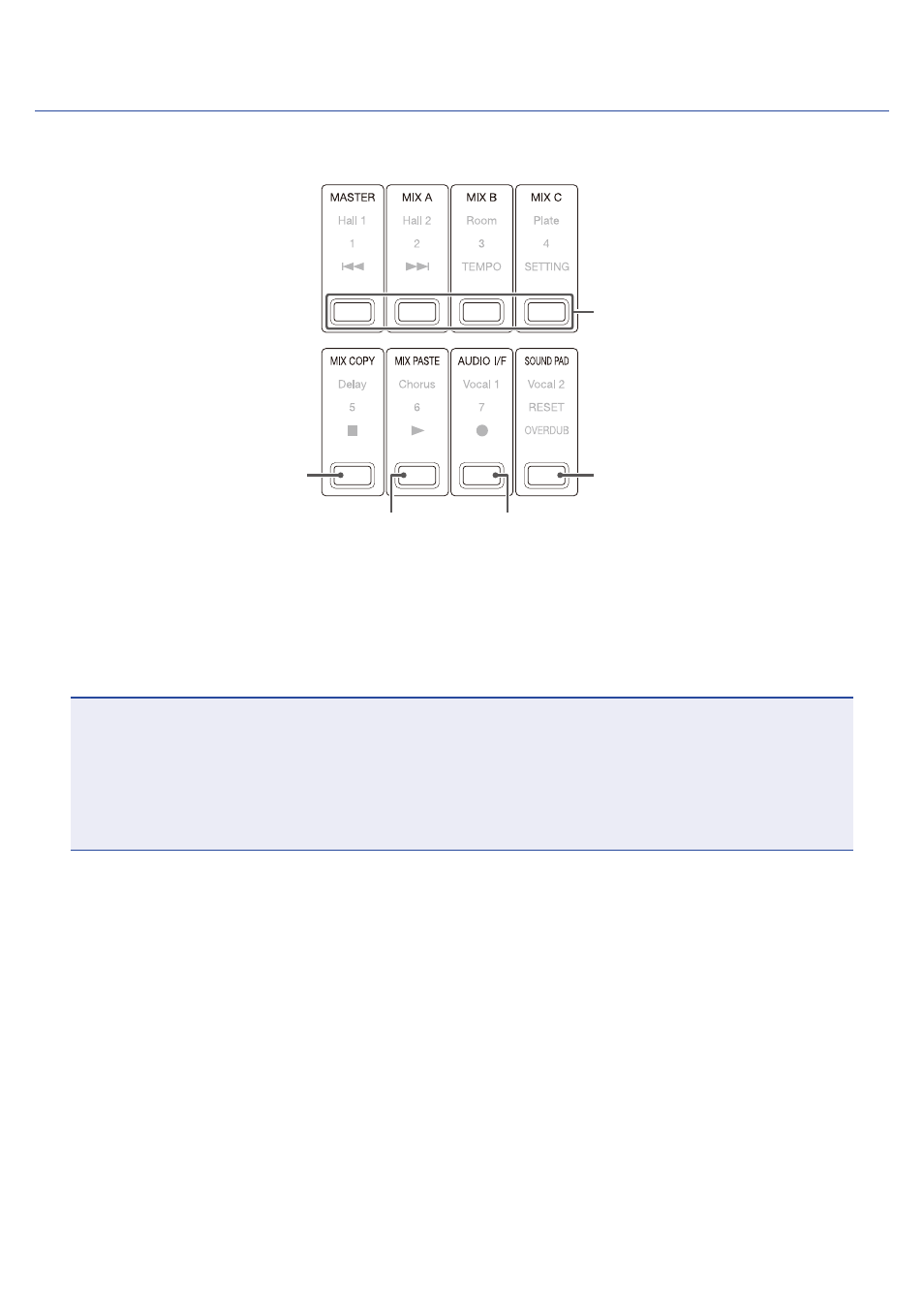

① MASTER and MIX A–C buttons
⑤ SOUND PAD settings button
④ AUDIO I/F button ③ MIX PASTE button
② MIX COPY button
① MASTER and MIX A–C buttons
The signal balance set using the channel faders can be switched as layers according to the outputs you want
to show and adjust.
• MASTER button: Show and adjust the settings used for MASTER OUT output.
• MIX A–C buttons: Show and adjust the settings used for MONITOR OUT A–C outputs.
NOTE
• The following parameters can have separate settings for the MASTER and MONITOR OUT A–C.
– Fader positions (each channel)
– Fader positions (EFX RETURN)
• The following parameters are shared by the MASTER and the MONITOR OUT A–C mixes.
MUTE ON/OFF, LOW CUT ON/OFF, EQ HIGH, EQ MID, EQ LOW, SEND EFX, PAN, SEND EFX TYPE, SEND EFX
parameters 1 and 2
② MIX COPY button
This copies fader position information for the currently selected mix.
③ MIX PASTE button
This applies the copied fader position information to the currently selected mix.
④ AUDIO I/F button
This opens a screen where audio interface function settings can be changed.
⑤ SOUND PAD settings button
This opens a screen where SOUND PAD settings can be changed.
