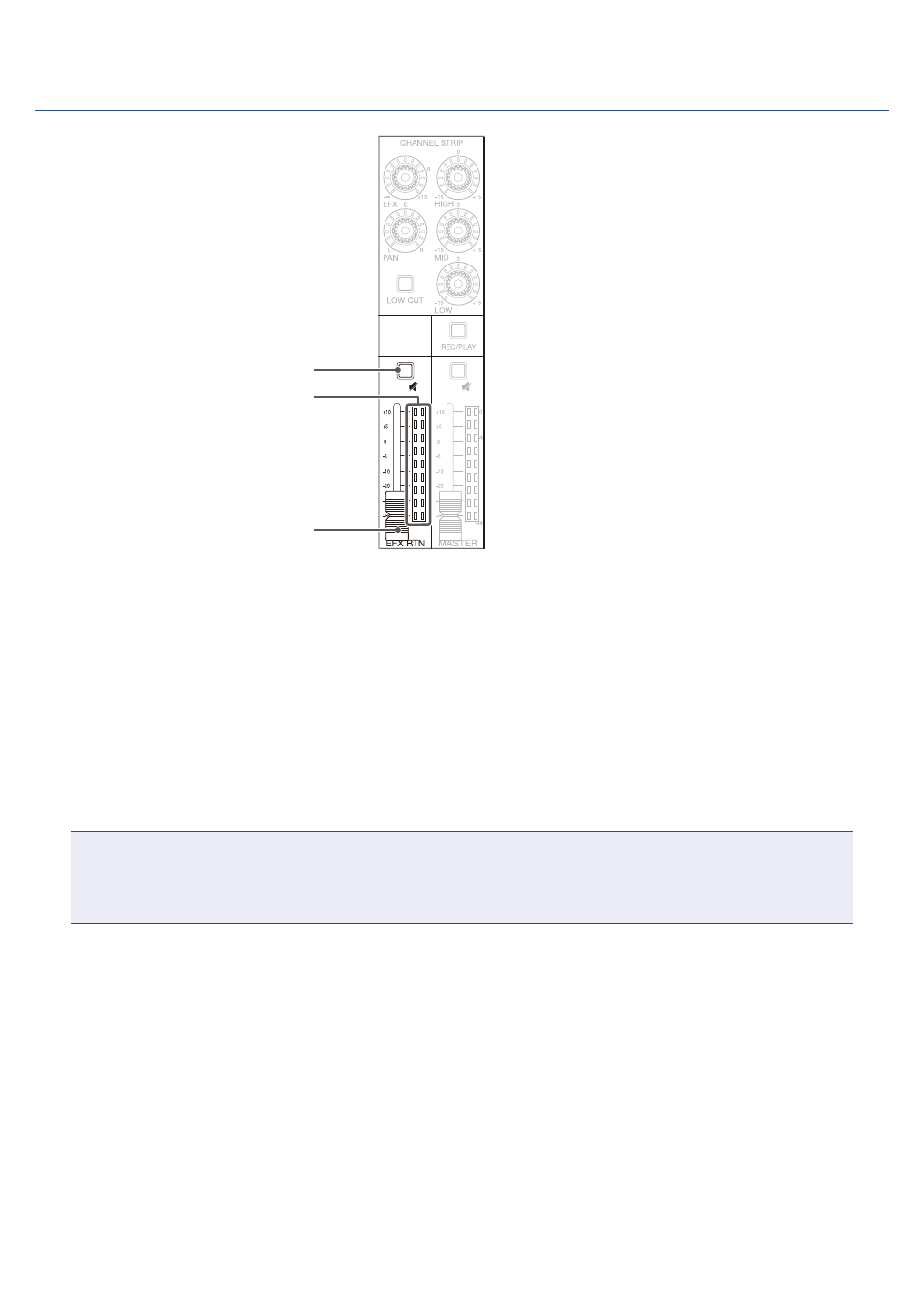

Send effect (SEND EFX) section
① EXT RTN MUTE button
② EFX RTN level meters
③ EFX RTN fader
① EXT RTN MUTE button
This mutes or unmutes the signal sent from the built-in effect.
To mute the signal, press this button to light it.
② EFX RTN level meters
These show the levels of the signals sent from the built-in effect to the master bus after adjustment by the EFX
RTN fader. Their range is from −48 dB to 0 dB.
③ EFX RTN fader
This adjusts the levels of the signals sent from the built-in effect to the master bus in a range from −∞ dB to
+10 dB.
NOTE
If the actual EFX RTN fader position differs from the EFX RTN fader position recalled using the scene function,
for example, the level meter will show the recalled fader position. To enable fader operation, move the fader to
the position shown by the level meter.
