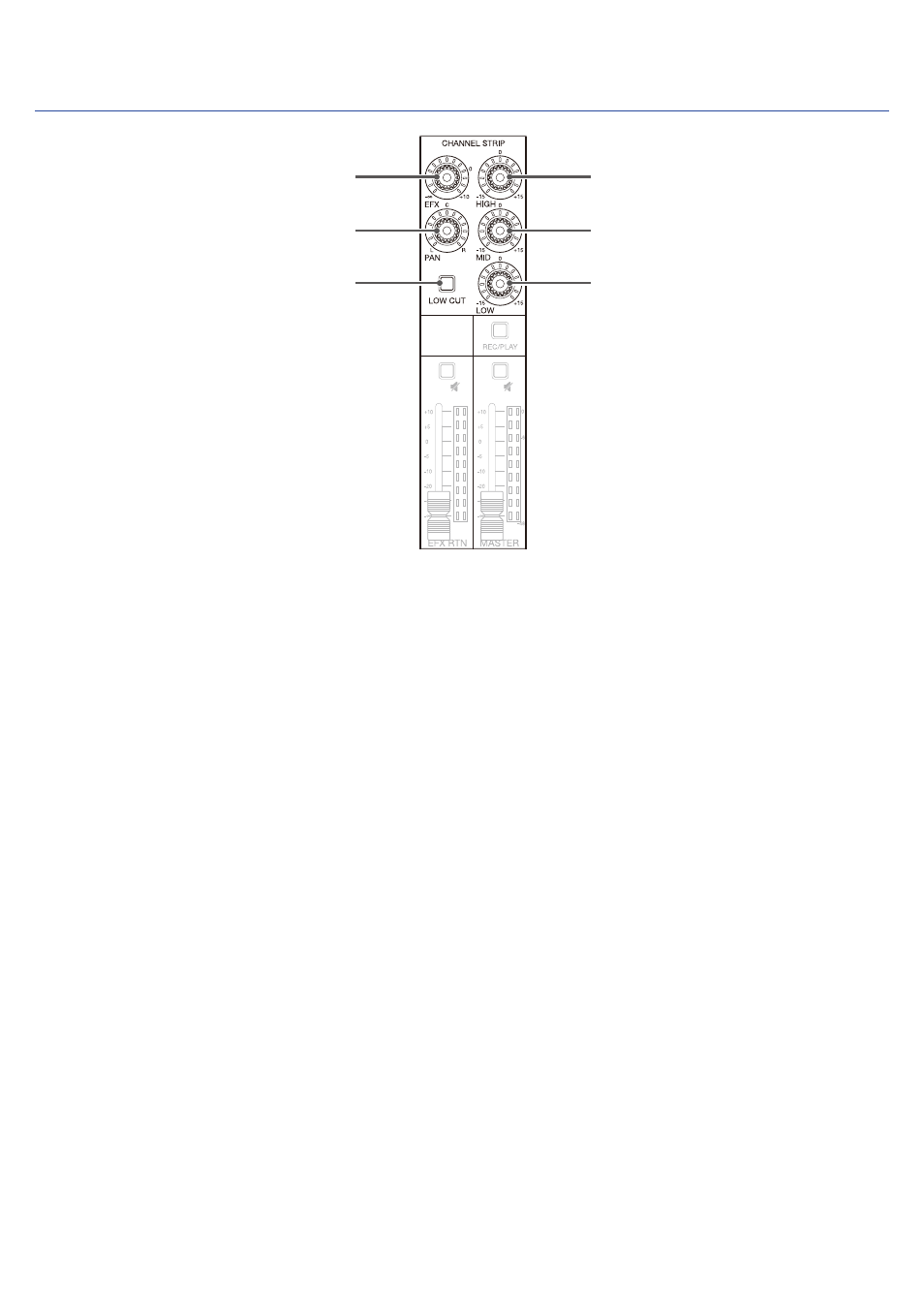

CHANNEL STRIP section
⑤ MID knob
⑥ LOW knob
④ HIGH knob ① EFX knob
② PAN knob
③ LOW CUT button
① EFX knob
The amount that can be sent to the EFX bus can be set from −∞ to +10 dB.
② PAN knob
This adjusts the position in the stereo output bus.
On channels 7 and 8, this adjusts the left and right volume balance.
③ LOW CUT button
This turns on/off the high-pass filter, which cuts low frequencies. When ON, signals below 75 Hz are attenu-
ated 12 dB/octave.
④ HIGH knob
This adjusts the boost/cut of high-frequency equalization.
Type: shelving
Gain range: −15 dB – +15 dB
Frequency: 10 kHz
⑤ MID knob
This adjusts the boost/cut of mid-frequency equalization.
Type: peaking
Gain range: −15 dB – +15 dB
Frequency: 2.5 kHz
⑥ LOW knob
This adjusts the boost/cut of low-frequency equalization.
Type: shelving
Gain range: −15 dB – +15 dB
Frequency: 100 Hz
