Names and functions of parts
Top

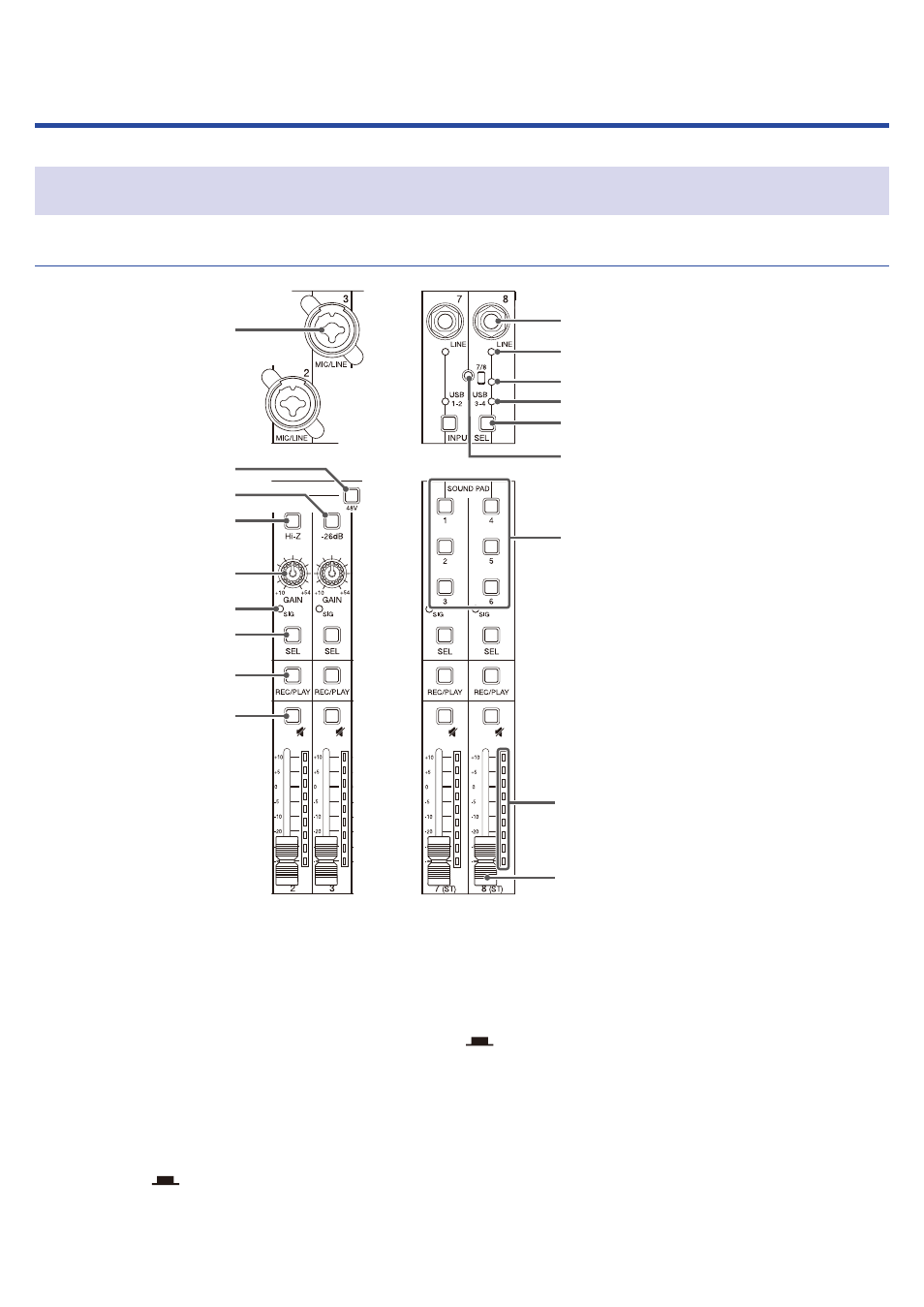

Input channel section
⑩ LINE input jack
⑫ Smartphone connection indicator
⑭ INPUT SEL button
① MIC/LINE input jack
② 48V switch
④ Hi-Z switch
③ −26dB switch
⑥ SIG indicator
⑤ GAIN knob
⑦ SEL button
⑧ REC/PLAY button
⑨ MUTE button
⑰ Level meter
⑱ Channel fader
⑪ LINE input indicator
⑬ USB indicator
⑮ Smartphone connection jack
⑯ SOUND PAD 1–6 buttons
① MIC/LINE input jack
These input jacks have built-in mic preamps. Connect mics, keyboards and guitars to them. These can be used
with both XLR and 1/4-inch (balanced or unbalanced) phone plugs.
② 48V switch
This turns +48V phantom power on/off. Turn this on ( ) to supply phantom power to MIC/LINE input jacks
1–6.
③ −26dB switch
This attenuates (reduces) the input signal of the equipment connected to the MIC/LINE input jack (3–6) by 26
dB.
Turn this on (
) when connecting line level equipment.
