IPv6 PIM-SM Non-Scoped Zone Configuration Example
Network requirements
•
Receivers receive VoD information through multicast. The receiver groups of different organizations
form stub networks, and one or more receiver hosts exist in each stub network. The entire IPv6 PIM
domain operates in the sparse mode.
•
Host A and Host C are IPv6 multicast receivers in two stub networks, N1 and N2.
•
Device D connects to the network that comprises the IPv6 multicast source (Source) through
GigabitEthernet 1/1.
•
Device A connects to N1 through GigabitEthernet 1/1, and to Device D and Device E through
GigabitEthernet 2/0 and GigabitEthernet 3/0 respectively.
•
Device B and Device C connect to N2 through their respective GigabitEthernet 1/1, and to Device
E through their respective GigabitEthernet 3/0.
•
Both GigabitEthernet 3/0 on Device D and GigabitEthernet 3/2 on Device E act as C-BSRs and
C-RPs; the C-BSR on Device E has a higher priority; the range of IPv6 multicast groups served by the
C-RP is FF0E::101/64; modify the hash mask length to map a certain number of consecutive IPv6
multicast group addresses within the range to the two C-RPs.
•
MLDv1 is to run between Device A and N1, and between Device B/Device C and N2.

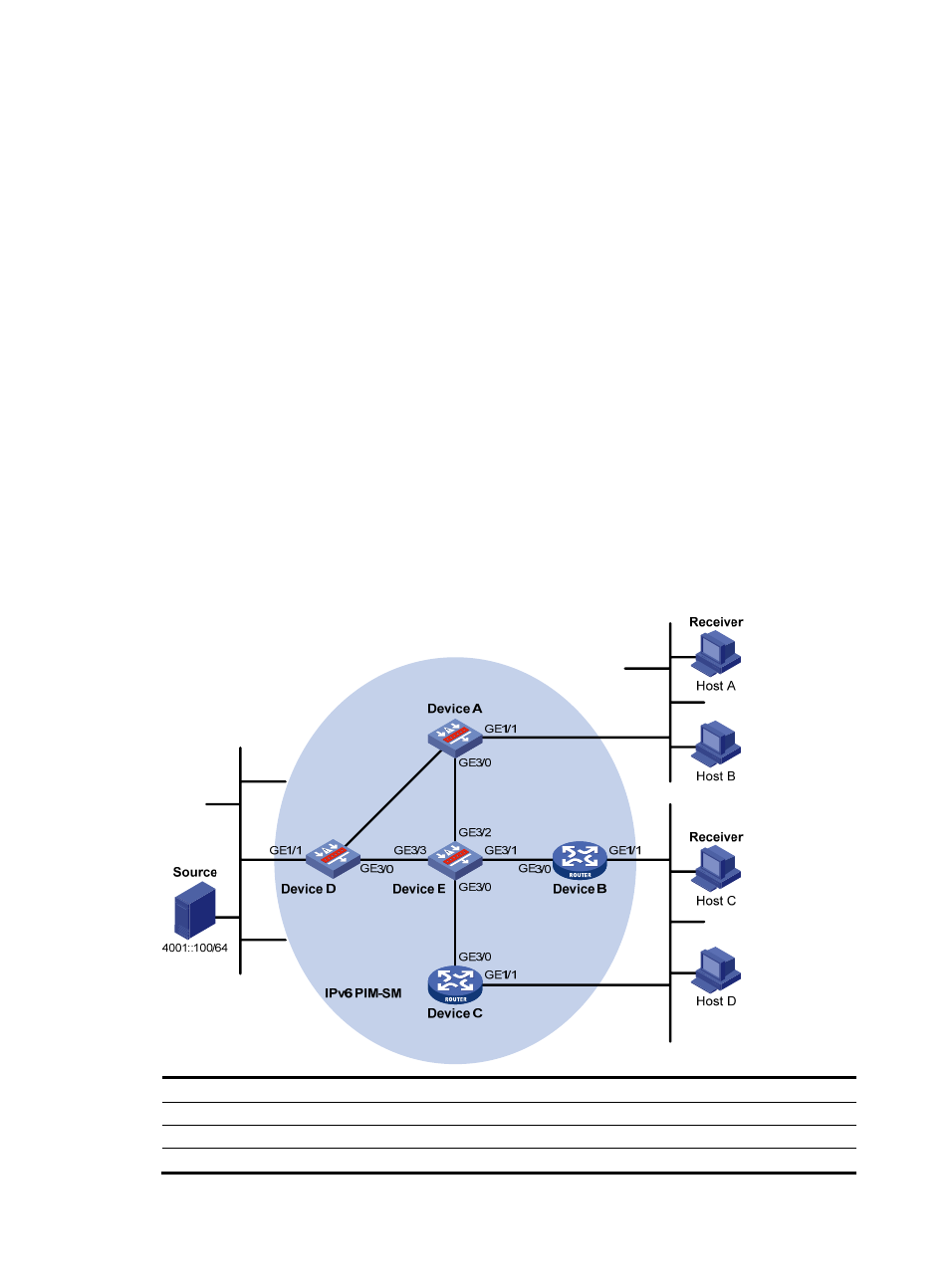

Figure 11 Network diagram for IPv6 PIM-SM non-scoped zone configuration
Ethe
rnet
Ethe
rnet
Ethern
et
N1
N2
GE2/0
G
E2/
0
Device Interface
IP
address
Device Interface
IP
address
Device A
GE1/1
1001::1/64
Device D
GE1/1
4001::1/64
GE2/0
1002::1/64
GE2/0
1002::2/64
GE3/0
1003::1/64
GE3/0
4002::1/64
