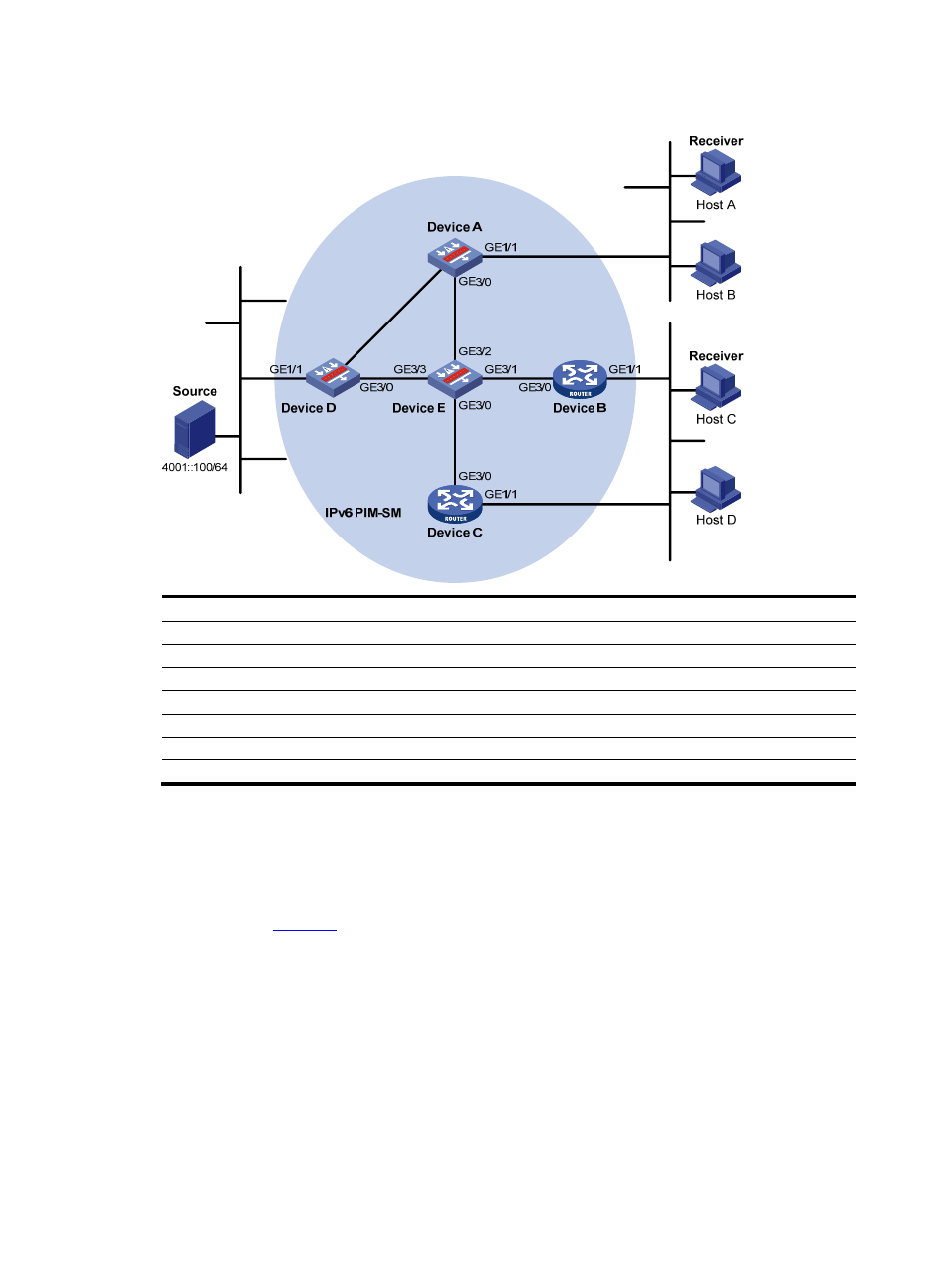

Figure 13 Network diagram for IPv6 PIM-SSM configuration
Ethe
rnet
Ethe
rnet
Ethern
et
N1
N2
GE2/0
G
E2
/0
Device Interface IP address Device Interface IP address
Device A GE1/1 1001::1/64 Device D GE1/1 4001::1/64
GE2/0 1002::1/64 GE2/0 1002::2/64
GE3/0 1003::1/64 GE3/0 4002::1/64
Device B GE1/1 2001::1/64 Device E GE3/0 3001::2/64
GE3/0 2002::1/64 GE3/1 2002::2/64
Device C GE1/1 2001::2/64 GE3/2 1003::2/64
GE3/0 3001::1/64 GE3/3 4002::2/64
Configuration procedure
Step1 Enable IPv6 forwarding and configure IPv6 addresses and IPv6 unicast routing
Enable IPv6 forwarding on each device and configure the IPv6 address and prefix length for each
interface as per Figure 13 . Detailed configuration steps are omitted here.
Configure OSPFv3 on the devices in the IPv6 PIM-SSM domain to ensure network-layer reachability
among them. Detailed configuration steps are omitted here.
Step2 Enable IPv6 multicast routing, and enable IPv6 PIM-SM and MLD
# Enable IPv6 multicast routing on Device A, and enable IPv6 PIM-SM on each interface, and run MLDv2
on GigabitEthernet 1/1, which connects Device A to N1.
<DeviceA> system-view
[DeviceA] multicast ipv6 routing-enable
[DeviceA] interface gigabitethernet 1/1
[DeviceA-GigabitEthernet1/1] mld enable
[DeviceA-GigabitEthernet1/1] mld version 2
