5.5 Installing the expansion cards 5500 Installing the expansion cards 5- 5.5.1 Expansion cards for slot 1
Expansion cards for slot 1 5- Montage_Erweiterung_1
The following expansion cards are available for slot 1:
` I/O expansion
` PROFIBUS
` DeviceNet
` SERCOS

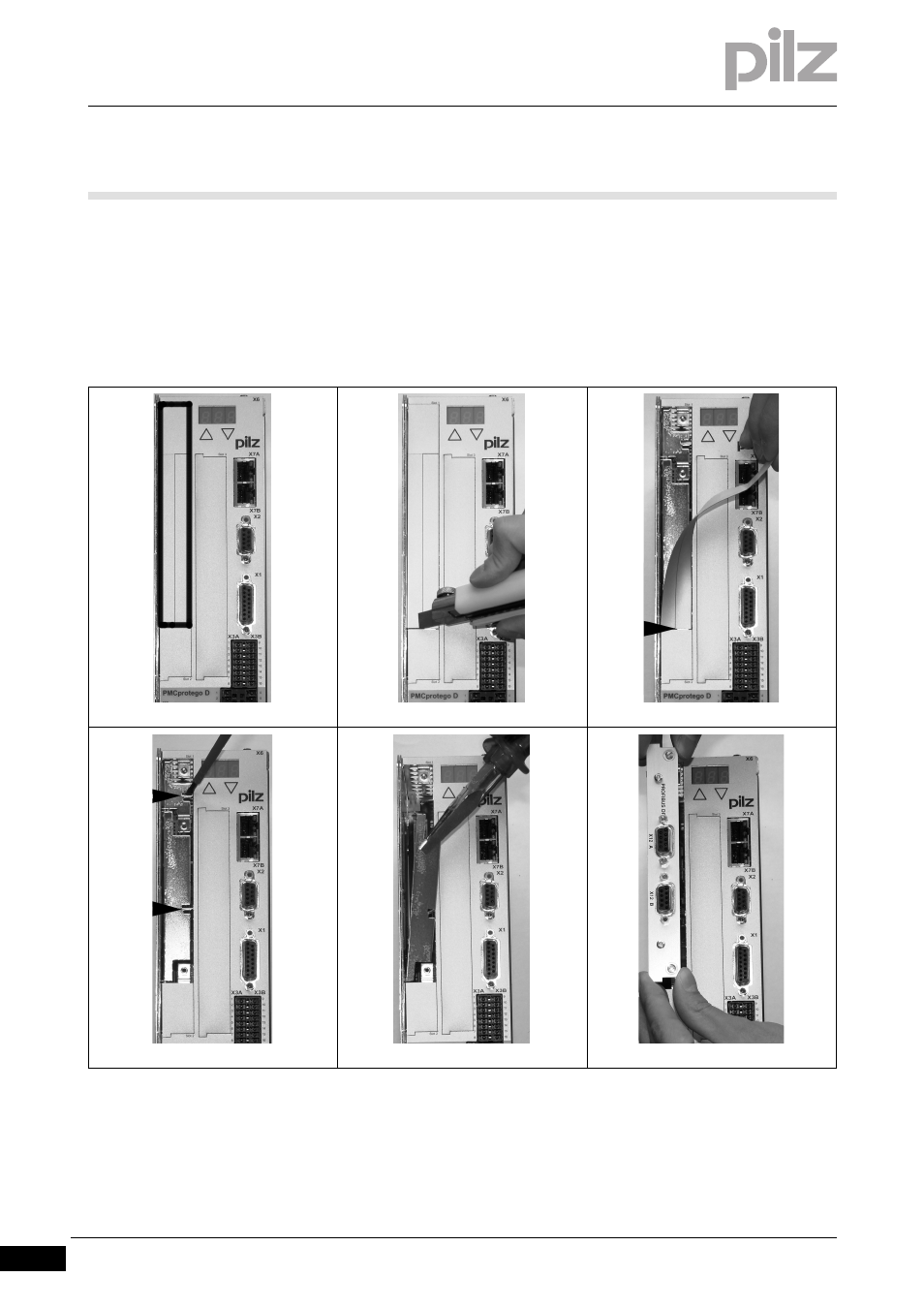

1. Set the boundary for slot 1 2. Remove the film (perforation) 3. Tear off the film as far as the marker
4. Break the top and bottom link 5. Break out the top and bottom plate 6. Insert the expansion card
