4-63
4.6
Implementation of stop categories
4
Function Description
Wiring suggestion
Implementation of Category 2 E-STOP, control function with auxiliary
contactors

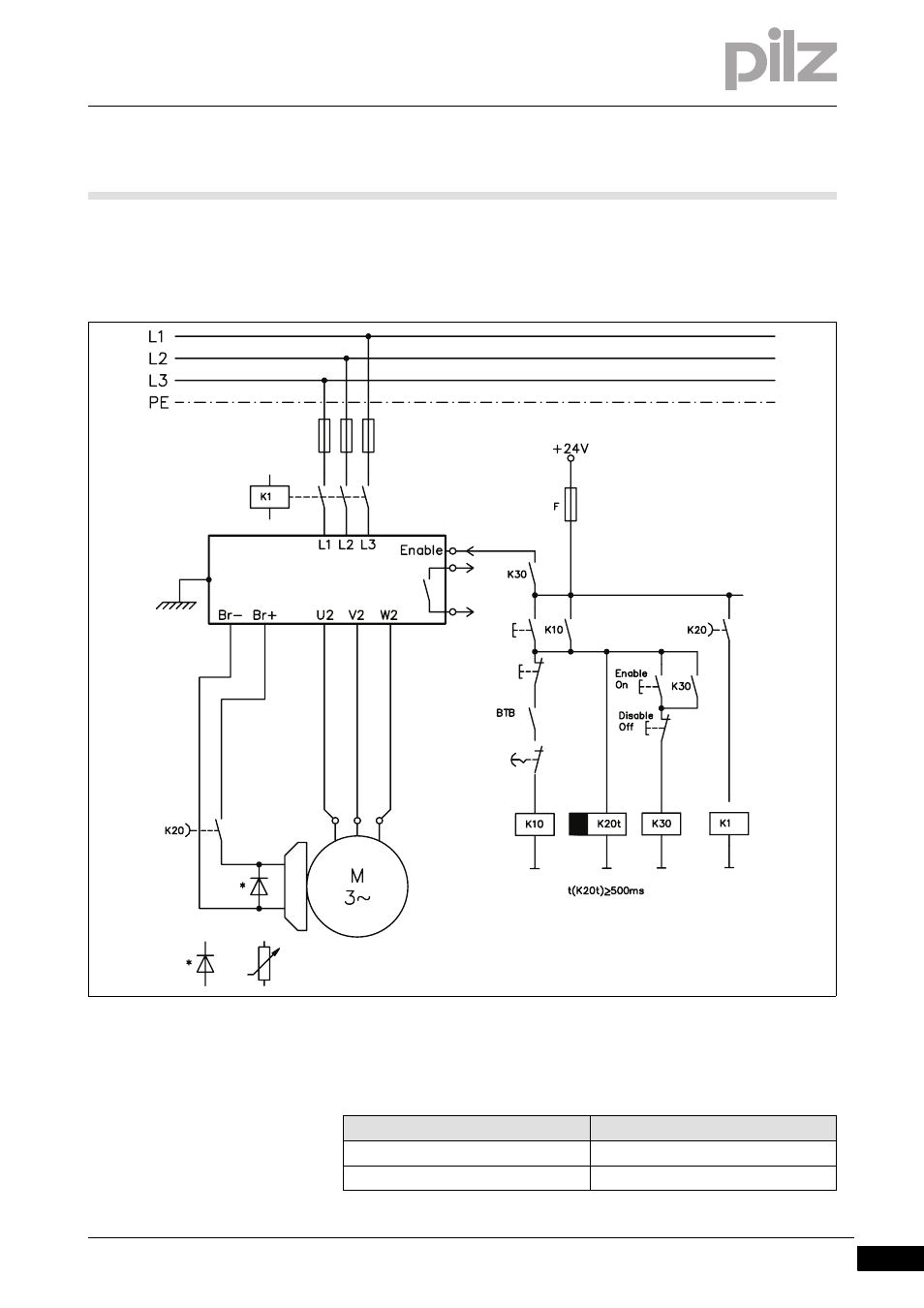

Fig. 4-21:
Stop Category 2
][Funktion_Stopp_Motorleistung
`
S1: On
`
S2: Off
`
S3: E-STOP
Motor output P
M
Motor circuit brake resistor R
M
Up to 2.5 kW
27
Ω
(20 W) 1000 V
2.5 kW - 5 kW
8.2
Ω
(50 W) 1000 V
or
S1
S2
S3
BTB
