Chapter 7 Effect
Document No: 2.3.004 Revision: 2.0 Updated: 3/21/2012

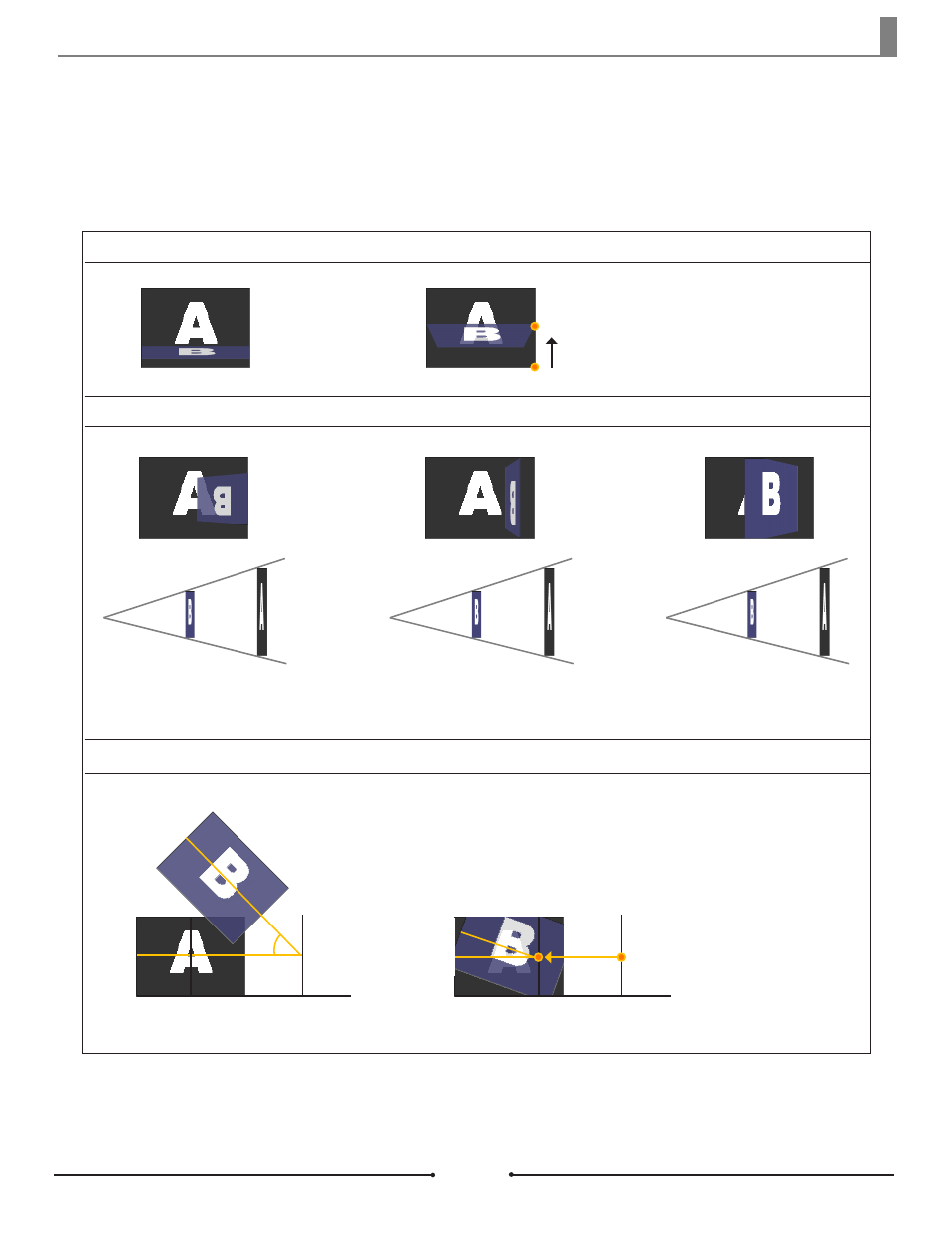

DVE Effect examples by Rotation and Center values of X, Y, and Z
The values for Center X, Y, and Z change the position of the axis for rotation. Different DVE transitions can be created by ap-
plying different values to X, Y, and Z.
Rotation X = 360, Center Y = 50
Center Y = 50
Center Y = 0
Y axis moves to point 0 while
X axis rotates.
Rotation Y = 180, Center Z = -100
Center Z = -100
Center Z = 0
Center Z = -100
Center Z = 0
Center Z = -100
Center Z = 0
Z axis moves to point 0 while
Y axis rotates.
Rotation Z = 45, Center X = 100
Z = 45
Center X = 0 Center X =100
X axis moves to point 0 while
Z axis rotates.
