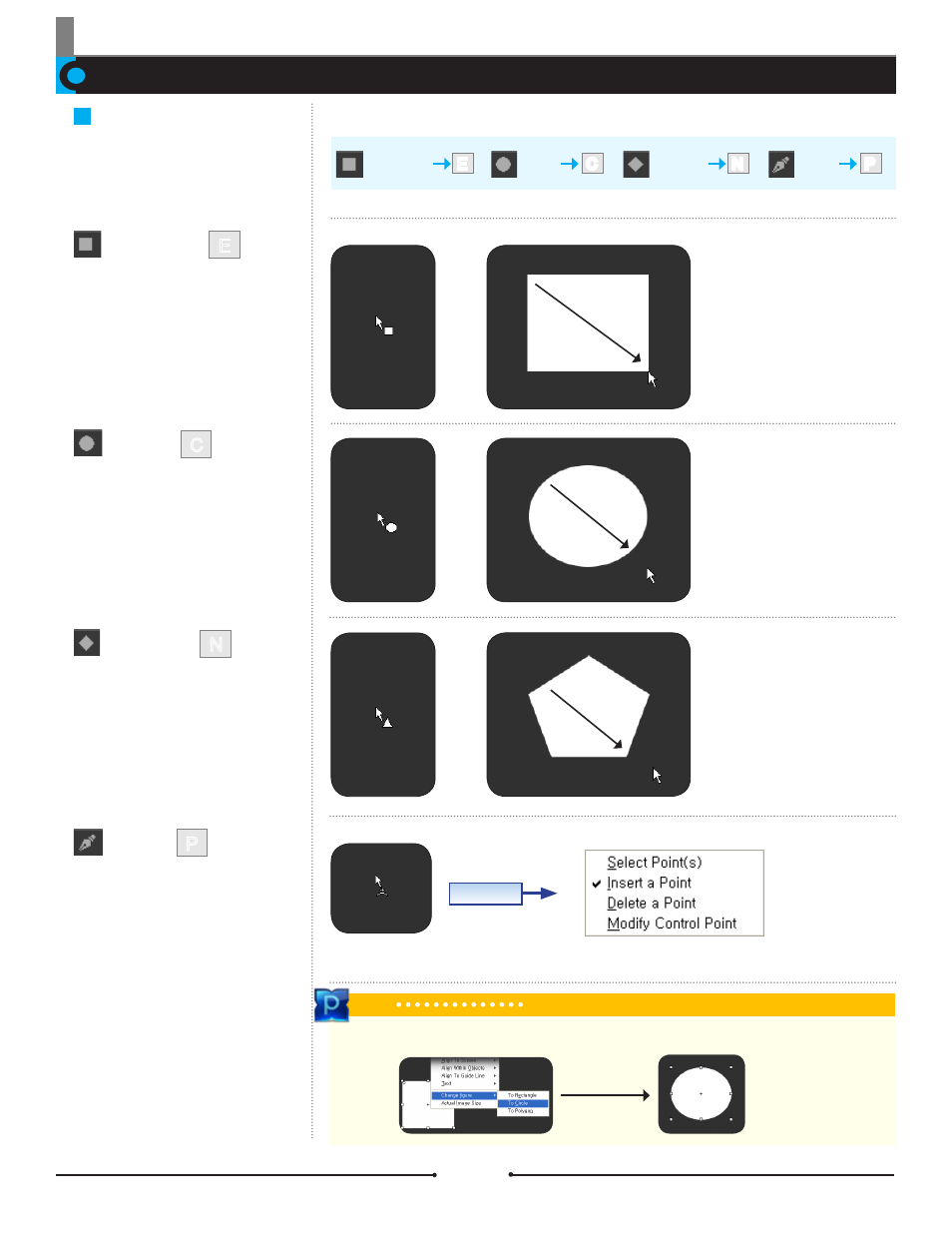

Drawing Shapes
To create a rectangle, select the
Rectangle Tool then click and drag
on the edit window.
E
Follow the same procedure as the
Rectangle Tool above to create a
Circle.
C
Follow the same procedure as the
Rectangle Tool above to create a
Polygon.
N
The Path Tool allows for creation of
freehand polygons. When selected,
a cursor will appear as shown to the
right. Right click to bring up the Path
Tool menu.
P
Right Click
Tip
Change the selected shape to another one by selecting [Change Figure] from the context menu on
the object.
Drawing Shapes
Rectangle Tool
Circle Tool
Polygon Tool
Path Tool
Create diagrams such as rectangles,
circles, and polygons by simply click-
ing and dragging.
E Rectangle C Circle N Polygon P Path
