Wiring Pump (Self-contained Unit) for All Models
Page 6-16 MDE-4331M Atlas® Fuel Systems Installation Manual · September 2014
Wiring Pump (Self-contained Unit) for All Models
For dispenser wiring, refer to
“Wiring Dispenser (STP-supplied Unit) for All Models”
on
Preparing Field Wiring
Self-contained factory units have the factory-installed J-box on side 1 of the unit. For
information on identifying side 1 of the unit, refer to
.

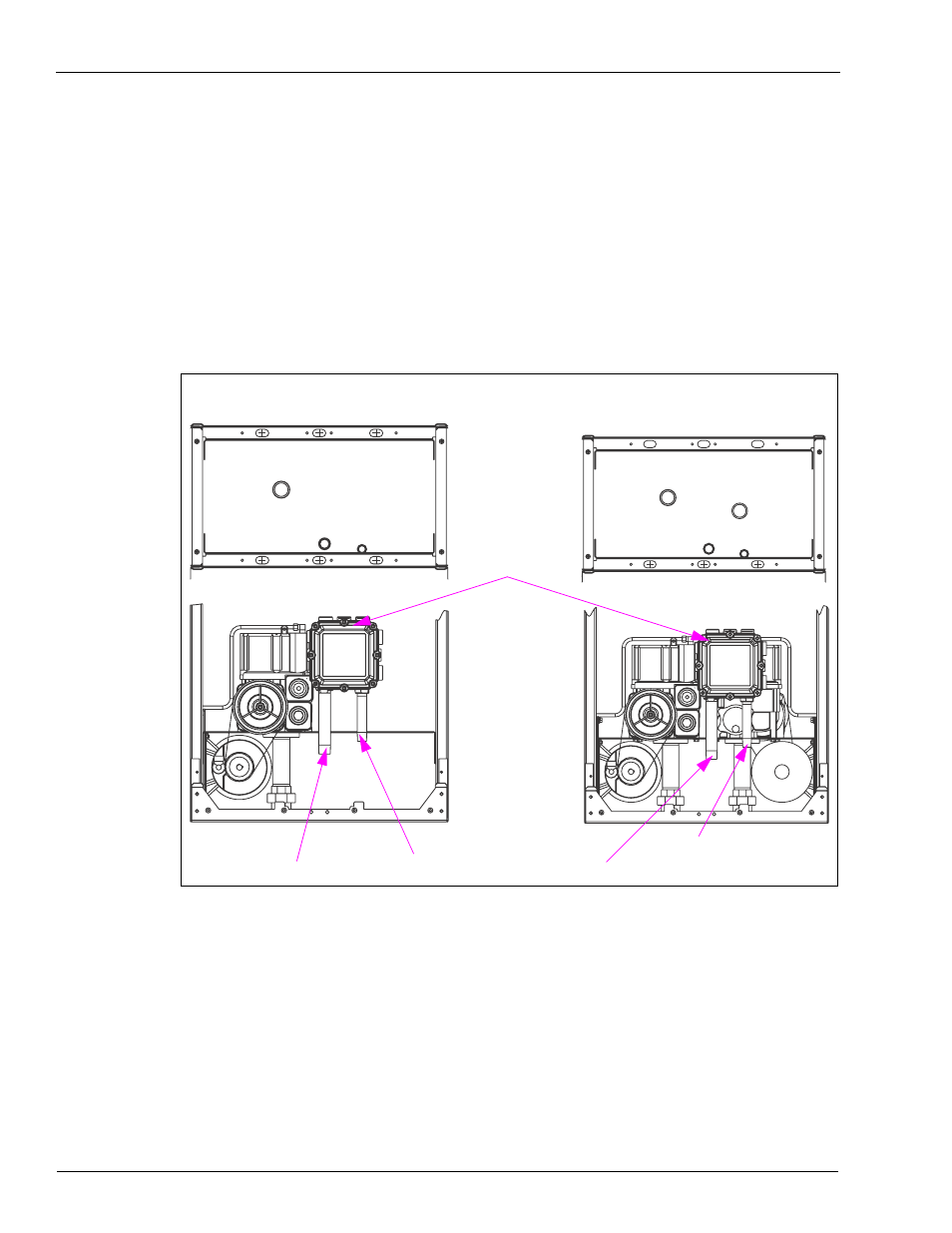

Figure 6-7: J-box Conduit Layout - Standard Models
J-box
Commercial DC Application
Power Connection
Atlas Footprint 1 Grade
Self-contained Pump
Atlas Footprint 2 Grade
Self-contained Pump
Commercial DC Application
Power Connection
Note: The motor and ground wiring must be sized to match the load and distance (length of
the wire). Wiring must be gas- and oil-resistant, color coded, or tagged for
identification purposes, and rated for 300 V or later. It is recommended that data wires
be a twisted-pair with 10 to 12 twists per foot (applicable only for electronic retail
units).
