MDE-4331M Atlas® Fuel Systems Installation Manual · September 2014 Page A-11
Foundation Diagrams Atlas Diagrams

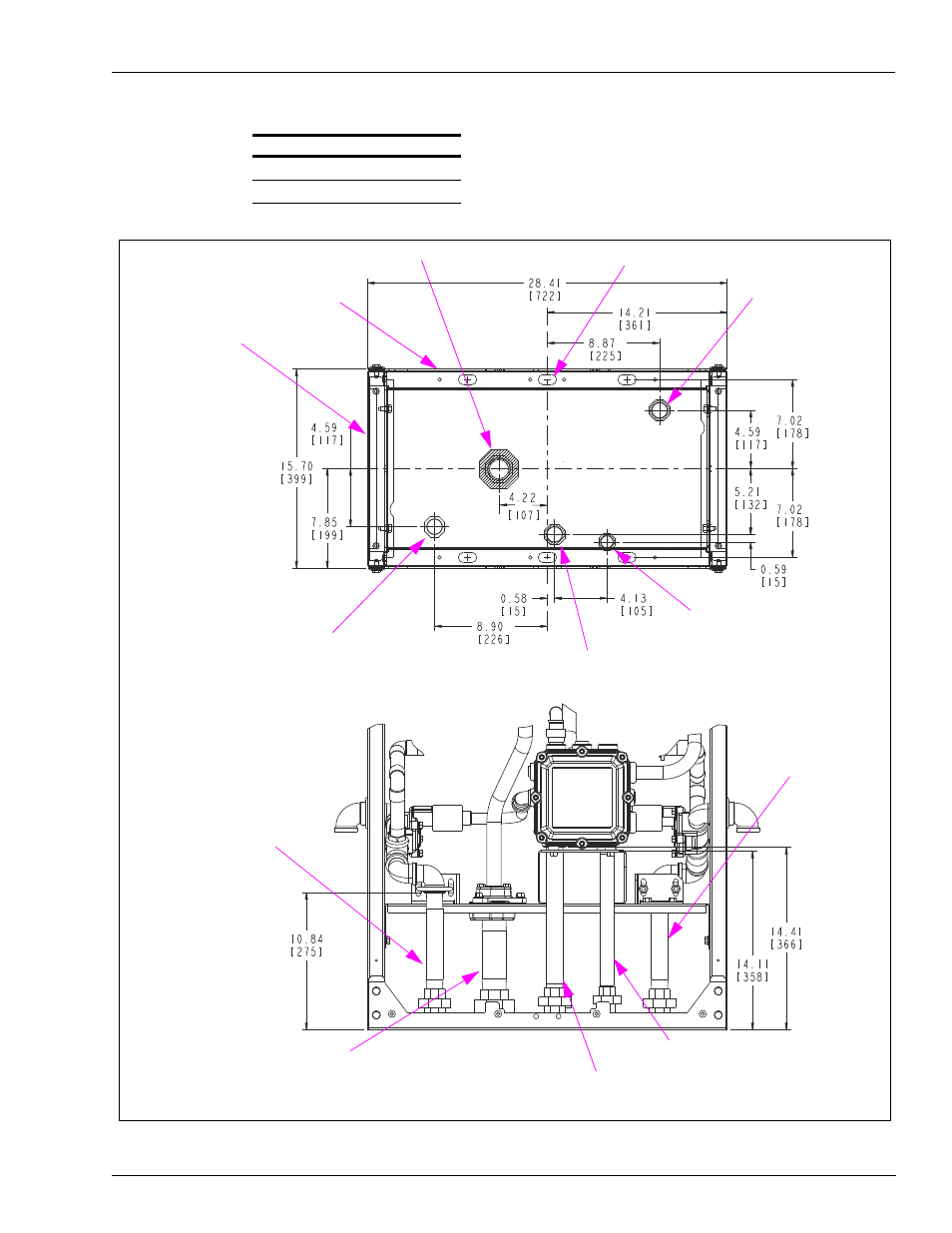

Figure A-10: Dispenser - HF with Satellite Outlet-TW1-Model
Model Numbers
8753KXTW1-S 9153KXTW1-S
8853KXTW1-S 9853KXTW1-S
Side 1 Nozzle Boot
(Side Load Units)
1-1/2-inch NPT Product Inlet
Anchor Bolt Slots (Use 1 minimum each side)
Side 1 Nozzle Boot (Front Load Units)
1-inch NPT Discharge
to Satellite
1-inch NPT Conduit Connection AC Power
3/4-inch NPT Nozzle Boot (Side
Load Units)
1-inch NPT Discharge to Satellite
Footprint
Dispenser - High Flow w/Satellite Outlet Model 9100KXTW1-S and 9800KXTW1-S
Product Inlet
Grade 1 Satellite Outlet
AC Power Connection
Optional DC Power Connection
Grade 2
Satellite Outlet
