MDE-4331M Atlas® Fuel Systems Installation Manual · September 2014
Page A-1
Elevation Diagrams
Atlas Diagrams
Appendix: Atlas Diagrams
Elevation Diagrams

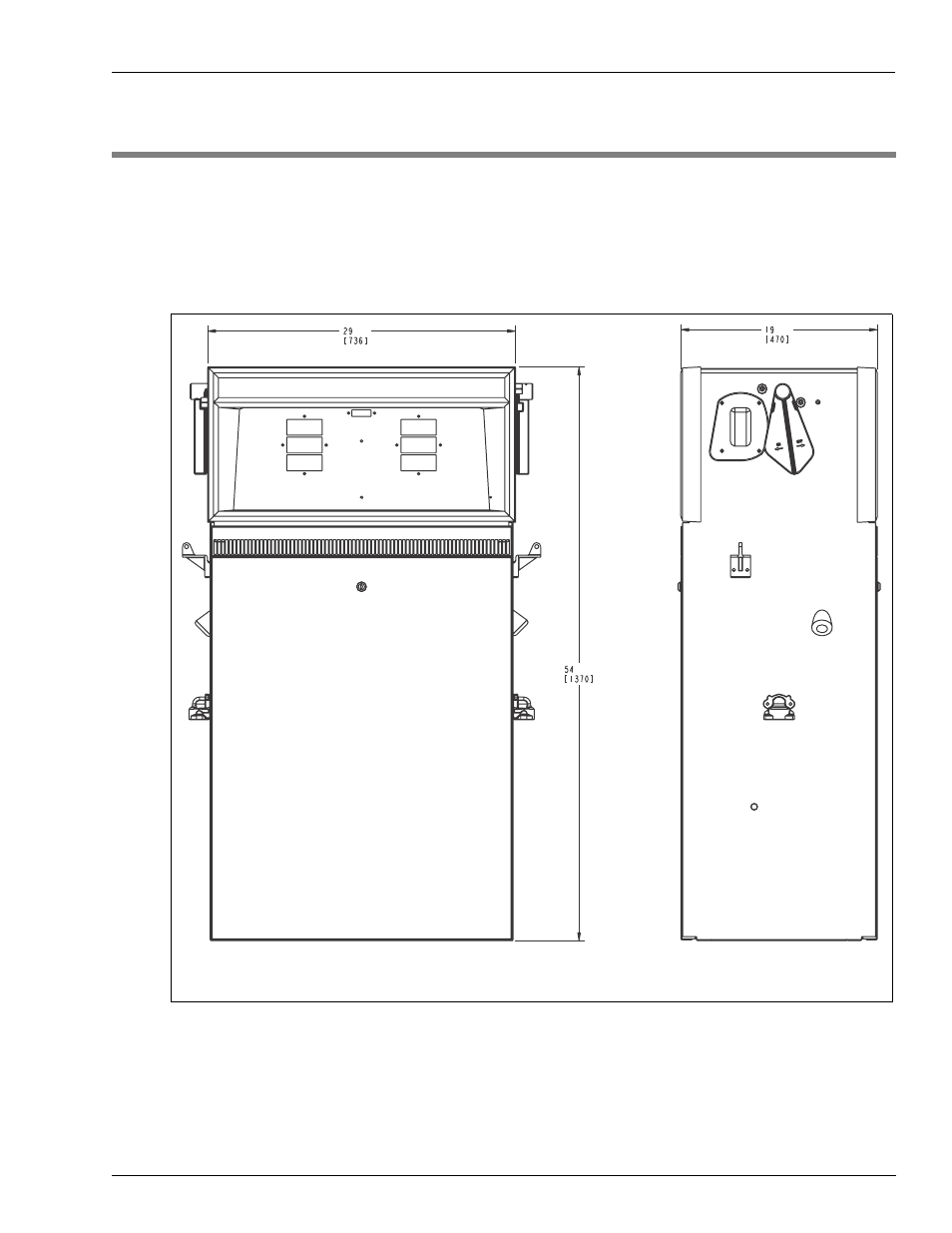

Figure A-1: Atlas Elevation Electronic Dual Model
Atlas Elevation
Electronic Dual Model Shown
Note: Unless noted differently, all dimensions are in inches first and then in millimeters.
