Installation
Calibration
Page 6-30 MDE-4331M Atlas® Fuel Systems Installation Manual · September 2014
Notes: 1) If the fuel/DEF is not dispensed within four minutes (approximately) of switching on
the pump handle (or within the time period set by the controller for pulser time out),
the error code 574 appears indicating that the pump handle must be switched off to
clear the error. Scrolling will resume after you replace the nozzle.
2) If the fuel/DEF dispensing has started but stopped and the pump times out, the
calibration switch must be turned to “Off” position. Otherwise, error code 993
appears as shown in
(99 indicates that the product is not available, and 3
indicates the product is not calibrated). The procedure must then be restarted from
step
.

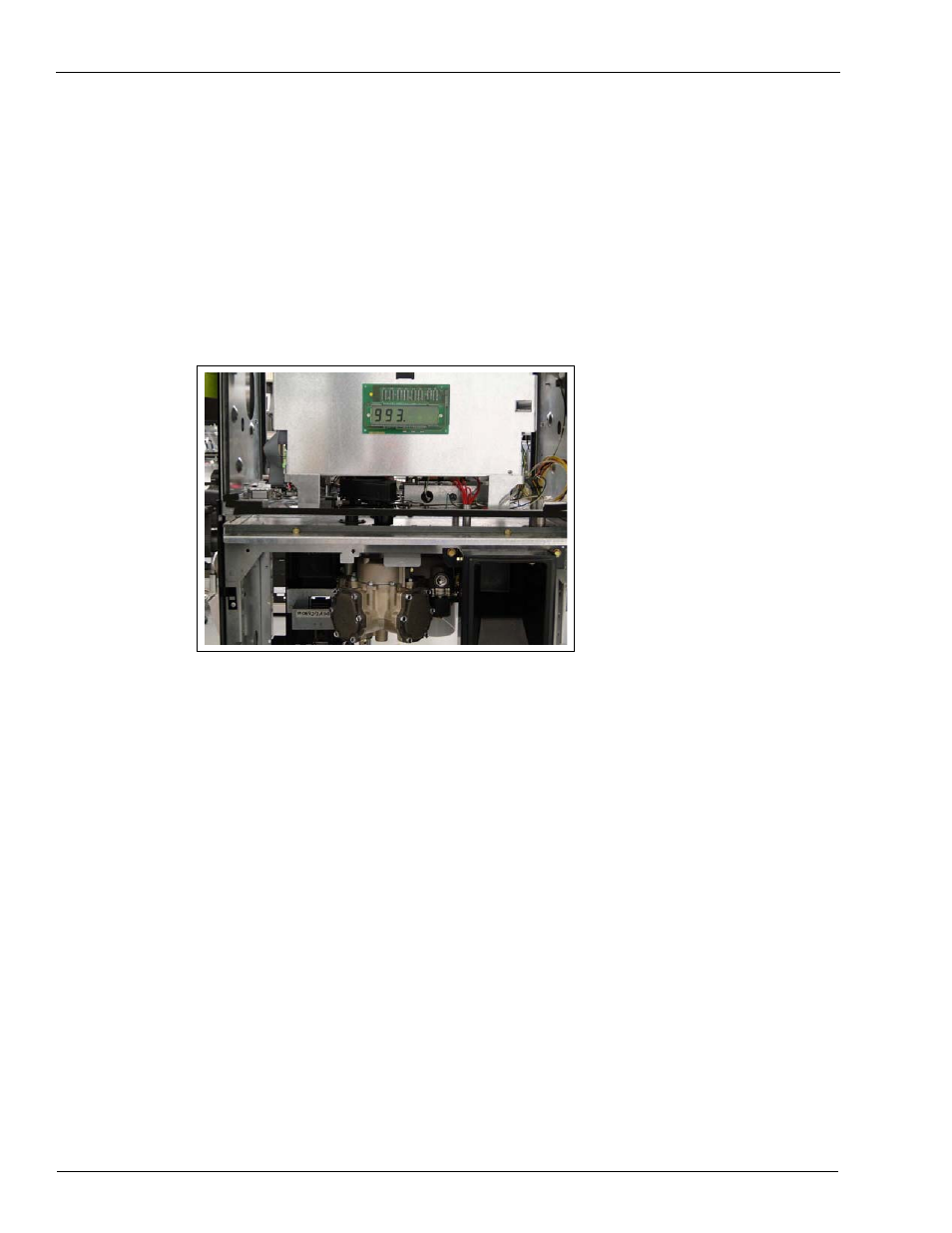

Figure 6-14: Displaying Error Code
4
Switch off the pump handle and return the nozzle to the boot. After three seconds, the
calibration factor appears on the display for three seconds and then zeros are displayed
indicating that the meter is now calibrated. No further transactions will be allowed until the
calibration switch is turned to “Off” position.
Note: If an additional transaction is attempted, error code 994 appears (99 indicates product
not available, and 4 indicates calibration mode error). Turn the calibration switch to
“Off” position and switch off the pump handle to clear the error. The error code 993
appears indicating that the calibration procedure must be restarted from
.
5
Turn the calibration switch to “Off” position and slide the switch cover back over the
switch.
