MDE-4331M Atlas® Fuel Systems Installation Manual · September 2014
Page A-5
Foundation Diagrams
Atlas Diagrams

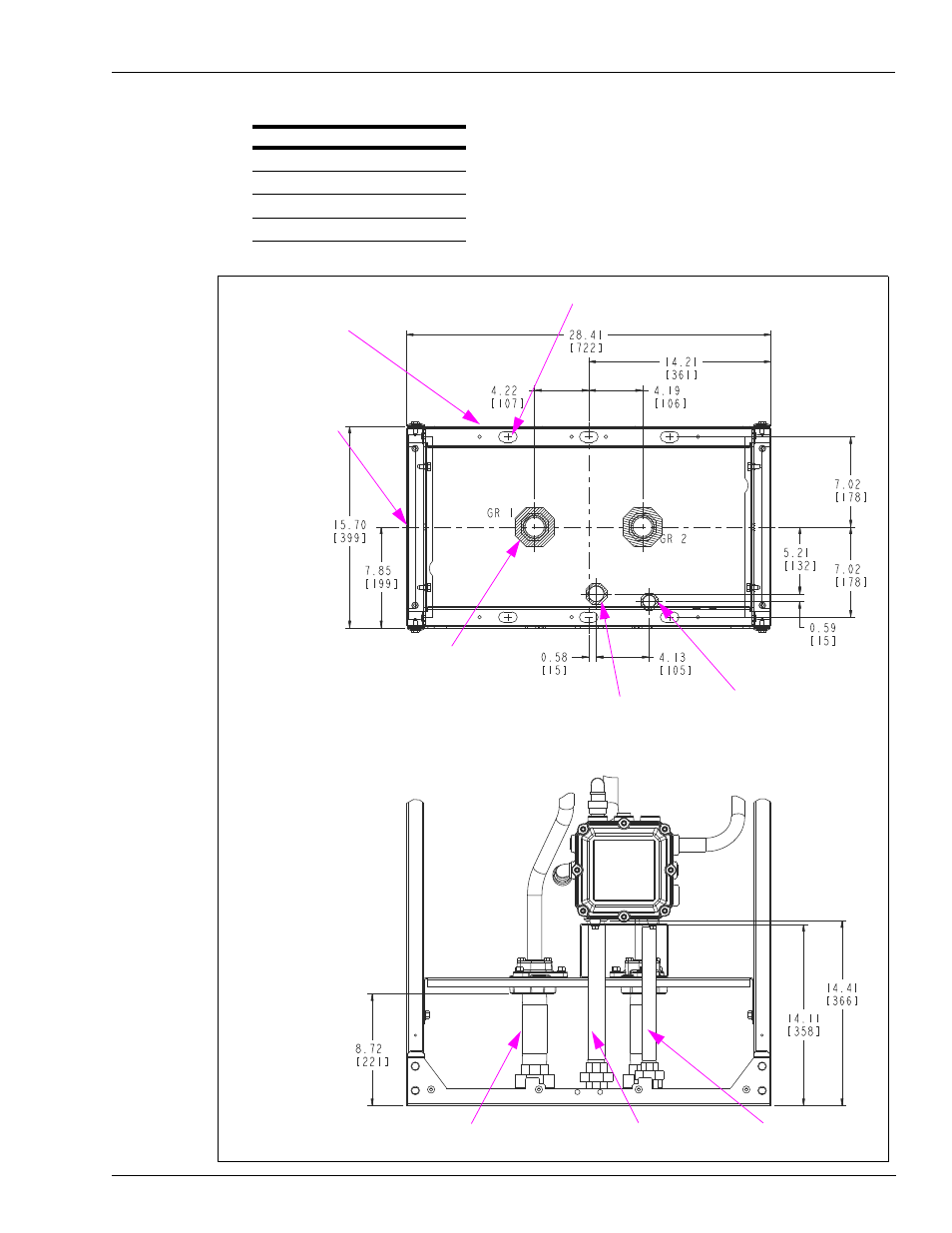

Figure A-4: 2 Grade TW2 Dispenser - SF and HF
Model Numbers
8752KXTW2
9152KXTW2
8753KXTW2
9153KXTW2
8852KXTW2
9852KXTW2
8853KXTW2
9853KXTW2
Anchor Bolt Slots (Use 1 minimum each side)
Side 1 Nozzle Boot
(Front Load Units)
Side 1 Nozzle Boot
(Side Load Units)
3/4-inch NPT
Conduit Connection
Optional DC Applications
1-inch NPT
Conduit Connection
AC Power
1-1/2-inch NPT
Product Inlet
Footprint
Product Inlet
AC Power
Connection
Optional DC
Power Connection
2 Grade
