Atlas Diagrams
Foundation Diagrams
Page A-16 MDE-4331M Atlas® Fuel Systems Installation Manual · September 2014

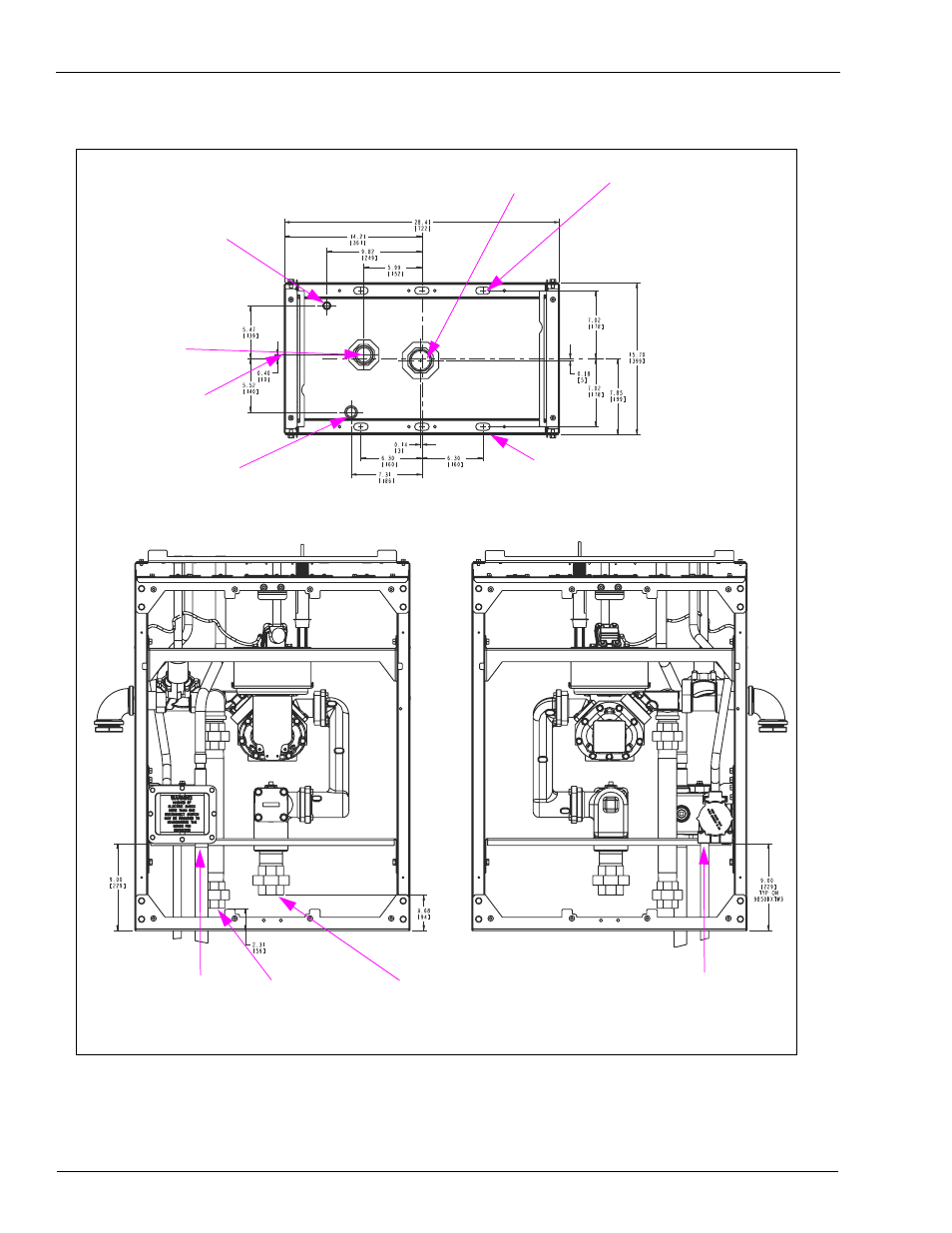

Figure A-15: Model 9850KX - UHF Dispenser
1-1/2-inch NPT
Discharge to Satellite
1/2-inch NPT Conduit
Connection Optional
DC Applications
2-inch NPT
Product Inlet
Anchor Bolt Slots
(Use 1 minimum
each side)
1-inch NPT Conduit
Connection AC Power
Side 1 Nozzle Boot
(Side Load Units)
Side 1 Nozzle Boot
(Front Load Units)
Footprint
AC Power
Connection
Product Inlet
Discharge to
Satellite
DC Power
Connection
MODEL 9850KX
