Gasboy Atlas Fuel Systems Installation Manual - Manual (Page 96)

Atlas Diagrams Foundation Diagrams
Page A-20 MDE-4331M Atlas® Fuel Systems Installation Manual · September 2014

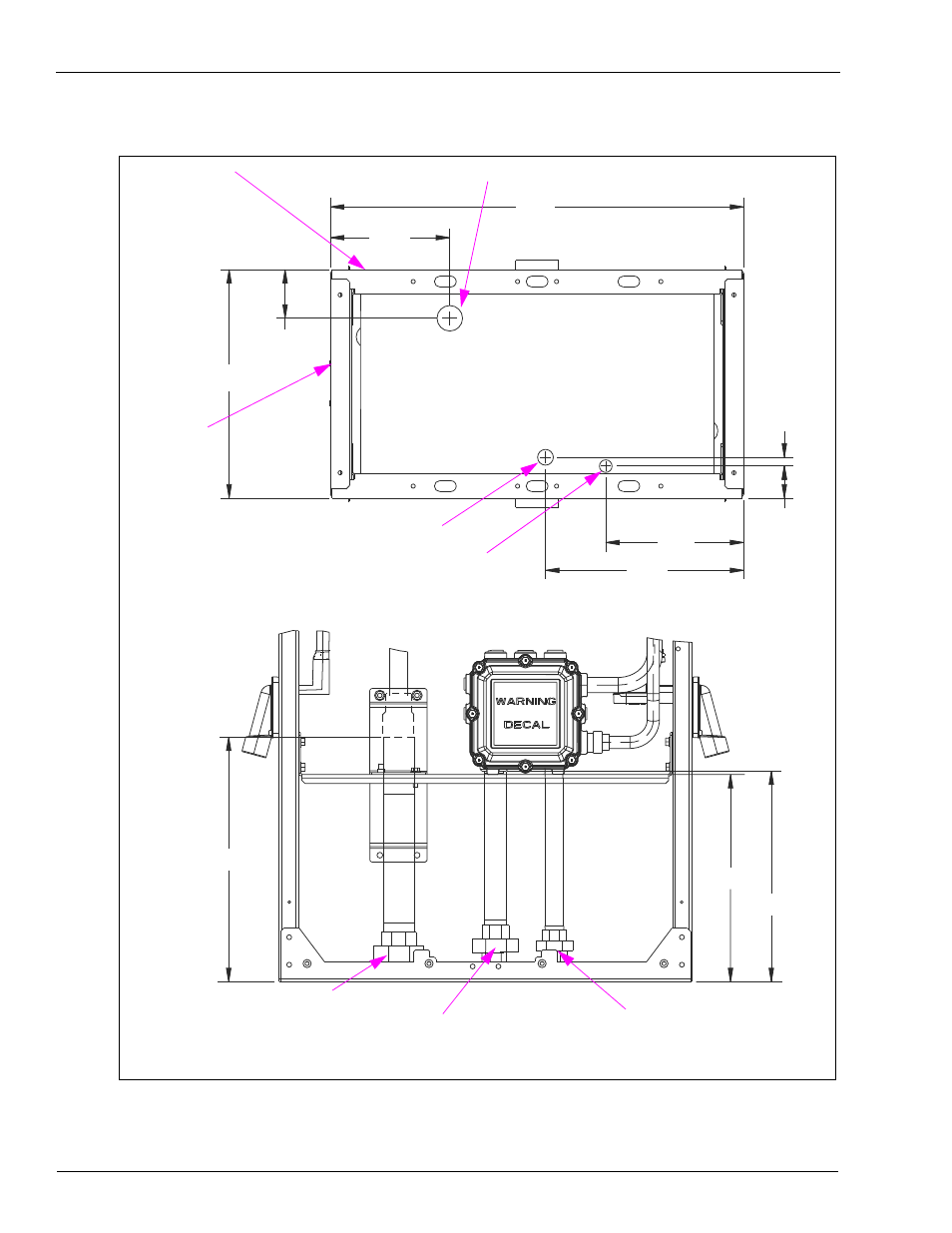

Figure A-19: Model 9872KX, 9872KXTW1 (E85 Dispenser)
8.21
(208.62)
28.41
(721.62)
3.34
(85.06)
15.96
(398.72)
0.59
(15)
2.21
(56.27)
9.49
(241.15)
13.62
(346.15)
Product Inlet
Conduit Connection Optional DC Application
Conduit Connection AC Power
1-1/2-inch NPT
1-inch NPT
3/4-inch NPT
16.83
(427.71)
14.26
(362.4)
14.50
(368.42)
Product Inlet
AC Power Connection
Optional DC Connection
Side 1 Nozzle
Boot (Side
Load Units)
Models 9872KX and 9872KXTW1 (E85 Dispenser)
Footprint
Side 1 Nozzle Boot
(Front Load Units)
