Mechanical PCU Option

TopKAT Master/Satellite Communications Wiring

Page 108

MDE-4319E TopKAT™ Fuel Management System Installation Manual · August 2008

TopKAT Master/Satellite Communications Wiring

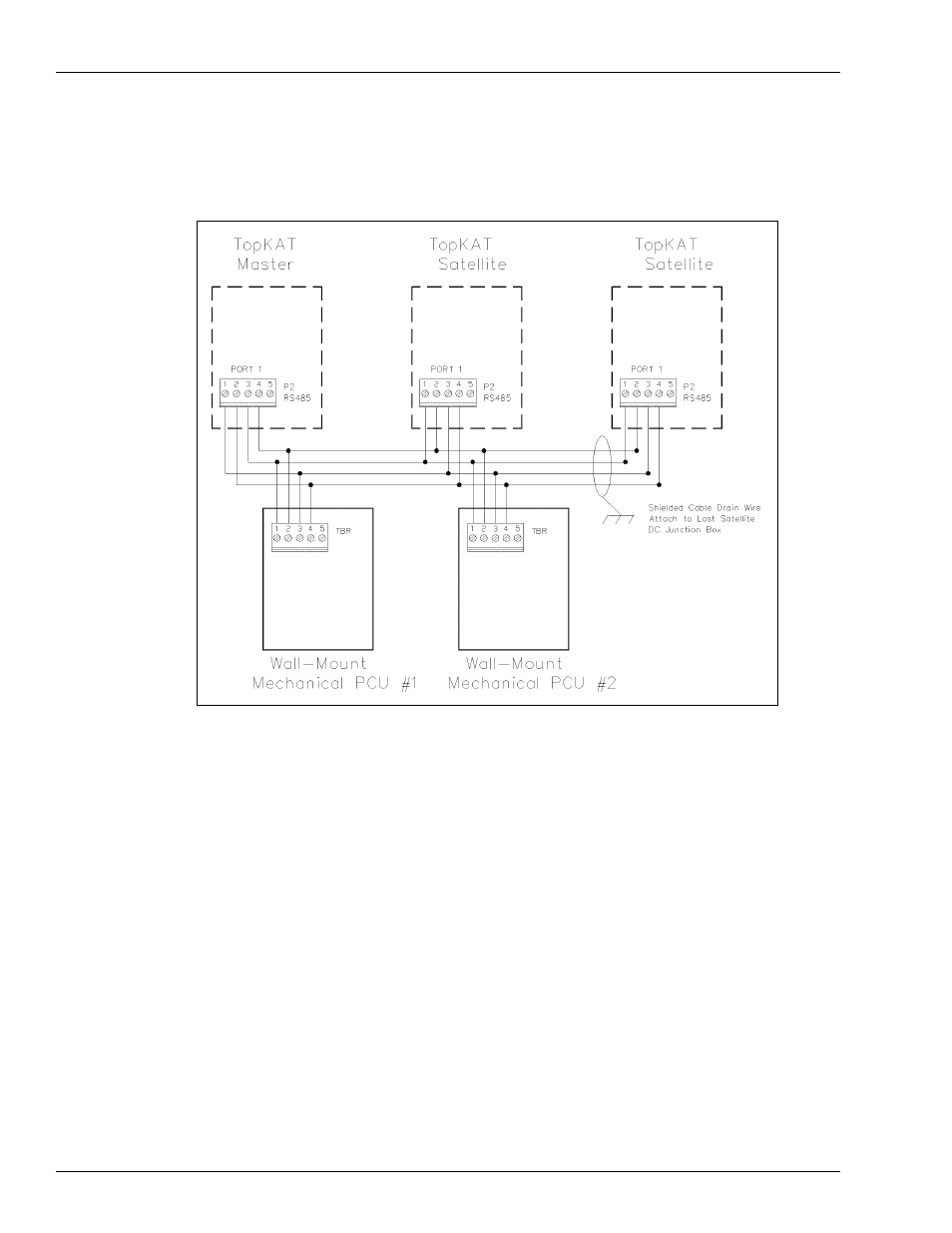

Figure 8-26: Wiring Diagram: TopKAT Master, 2 TopKAT Satellites, 2 Wall-mount PCUs
