Mechanical Interface Option
Wiring Diagrams
Page 68
MDE-4319E TopKAT™ Fuel Management System Installation Manual · August 2008

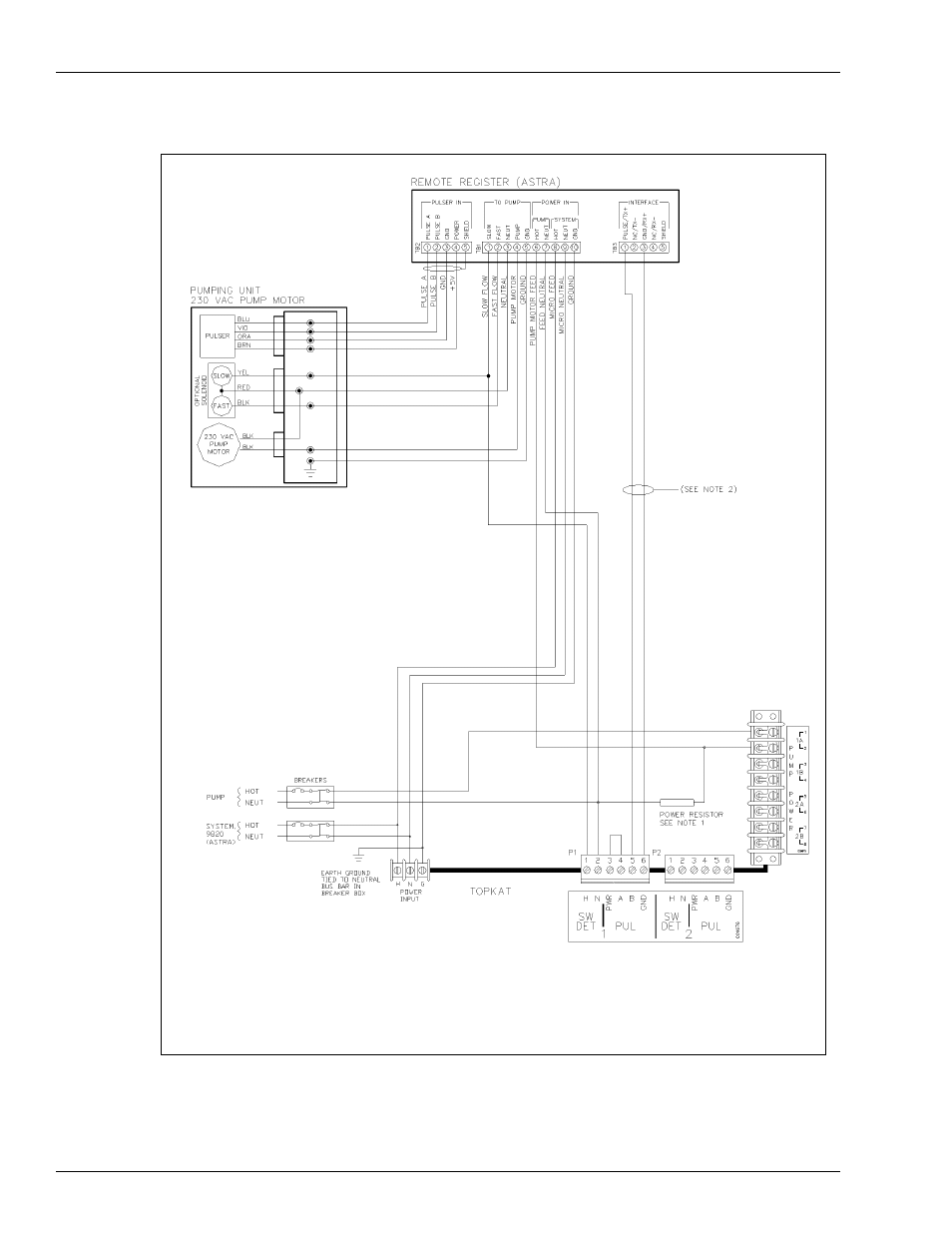

Figure 7-23: Wiring Diagram: 9820 230 VAC International Dispensers
Notes:
1. The power resistor assembly is 8.2 kilo-ohm, 10 W (part number C05818) for 115/230 VAC domestic units and 30
kilo-ohm, 10 W (part number C06683) for 230 VAC International units.
2. Before applying power, the TopKAT Pump Control PCB jumpers must be set for electronic pulser as shown in
. Failure to properly set the jumpers will damage the TopKAT.
