Terminal Block ID Mechanical PCU Option
Figure 8-5 shows the mechanical PCU components. Refer to “Terminal Block ID” on page 24
for the TopKAT Comm Assembly.

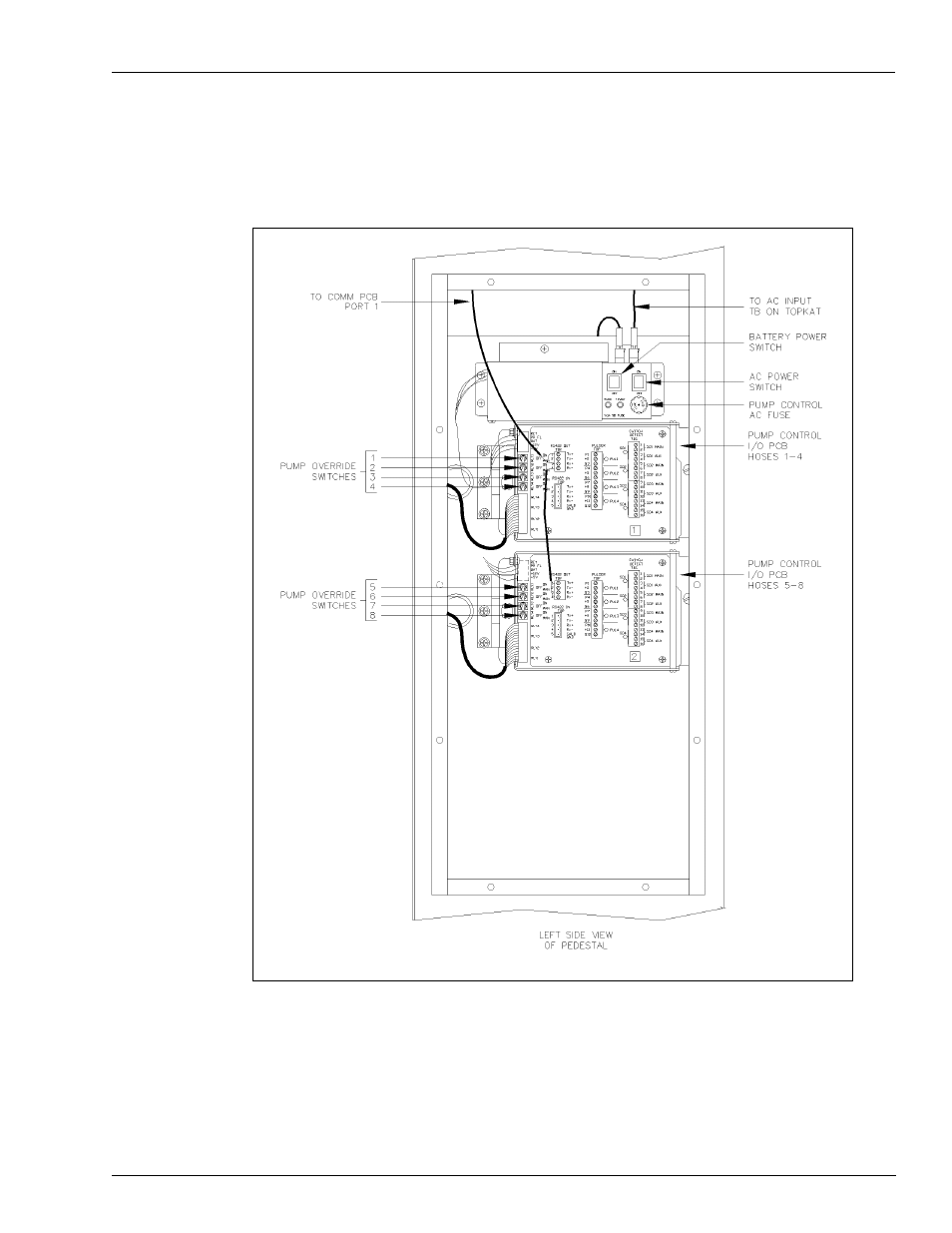

Figure 8-5: Terminal Block ID: Standard Pedestal - Left Side
