Gasboy TopKAT Fuel Management System Installation - Manual (Page 124)

TopKAT Master/Satellite Communications Wiring
Page 118 MDE-4319E TopKAT™ Fuel Management System Installation Manual · August 2008
TopKAT Master/Satellite Communications Wiring

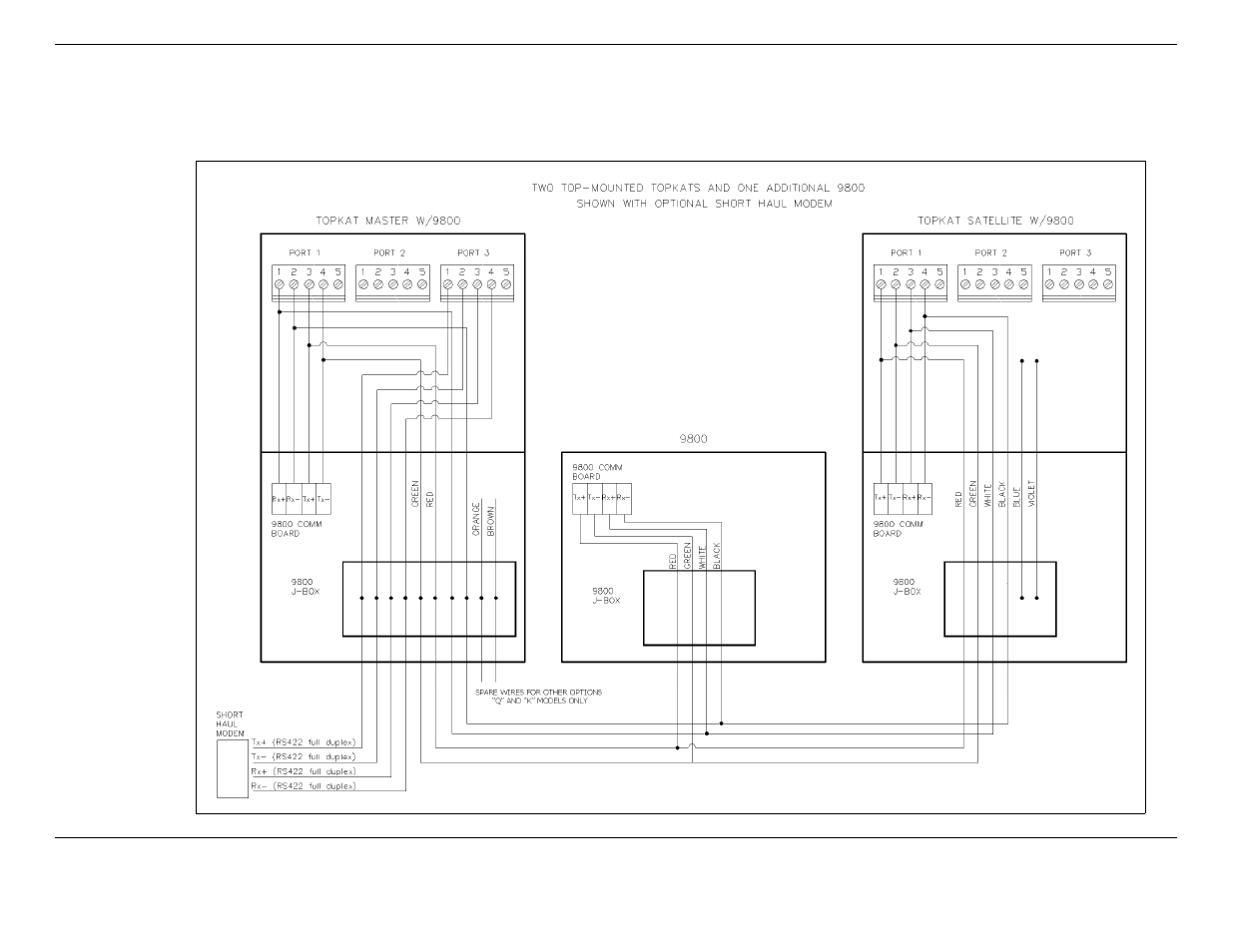

Figure 9-8: 2 Top-mounted TopKATs with Short Haul Modem and 1 Series 9800
