Appendix A: Base Layout for Shelf Mounting
Appendix A: Base Layout for Shelf Mounting
The TopKAT system can be mounted on a shelf of your own design, if desired. If you choose
to do this, use the following base layout, in addition to following all installation precautions
and instructions for your system type as outlined in the earlier sections of this manual.

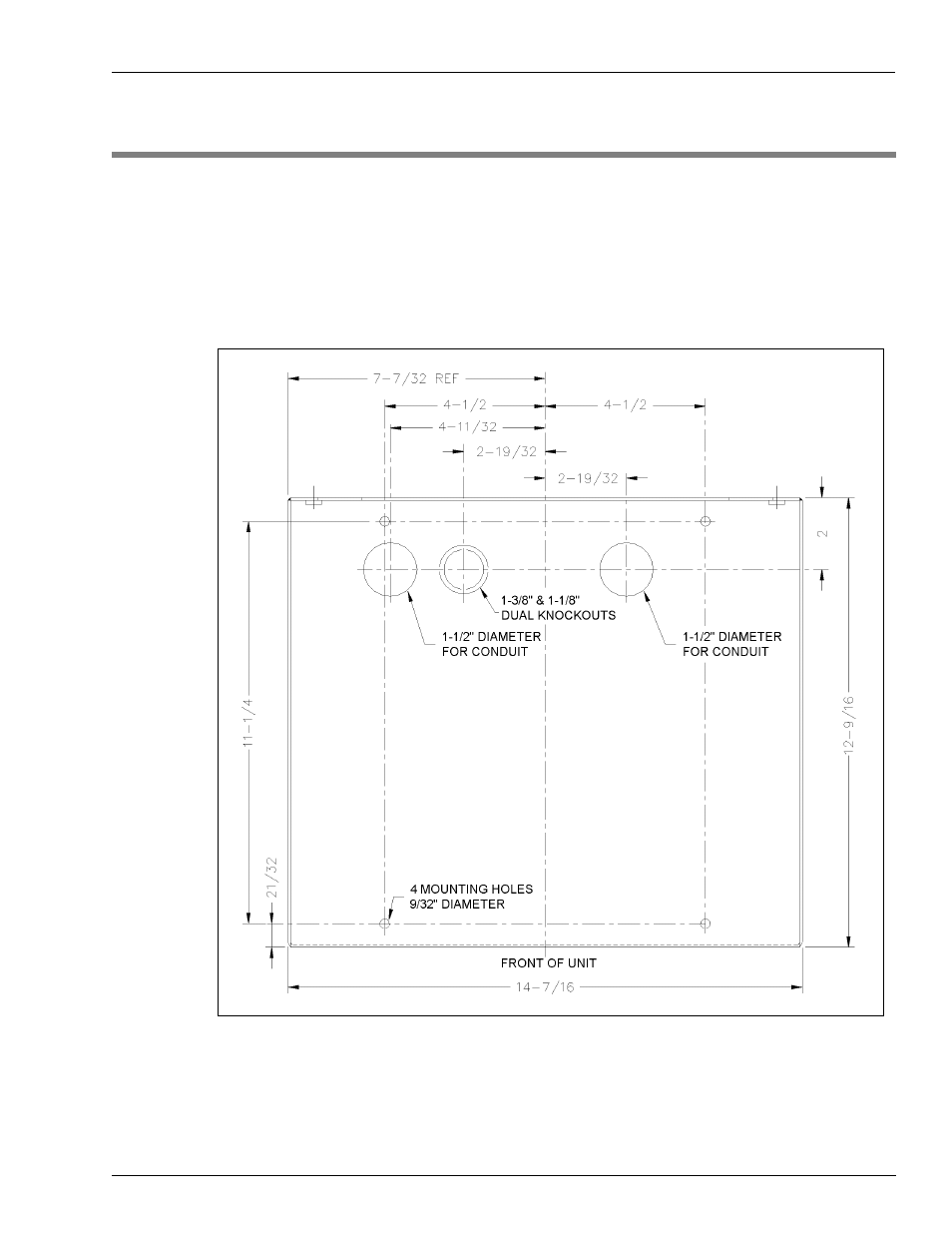

Figure A-1: Base Layout for TopKAT Shelf Mounting
