TopKAT Master/Satellite Description
Page 36 MDE-4319E TopKAT™ Fuel Management System Installation Manual · August 2008

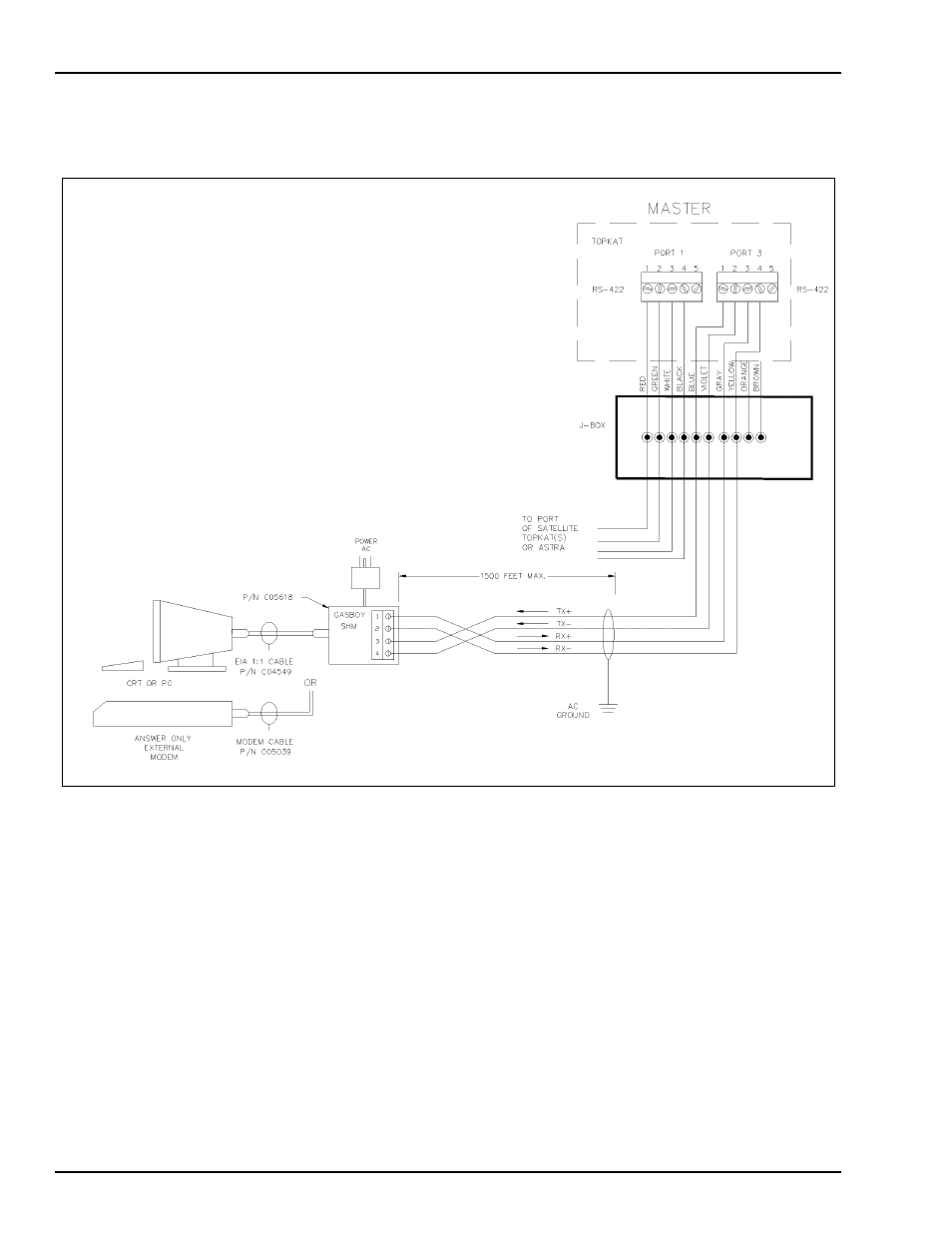

Figure 6-3: Wiring Diagram: RS-422 - Gasboy Short Haul Modem - Master/Satellite
Modem
TWO SPARE WIRES FOR
OTHER OPTIONS “Q” AND “K”
MODELS ONLY
1
