Figure 8-10: wiring diagram: pulsers – Gasboy TopKAT Fuel Management System Installation User Manual

Page 99

Advertising

background image

MDE-4319E TopKAT™ Fuel Management System Installation Manual · August 2008

Page 93

Wiring Diagrams: Pulsers, Pumps, Dispensers

Mechanical PCU Option

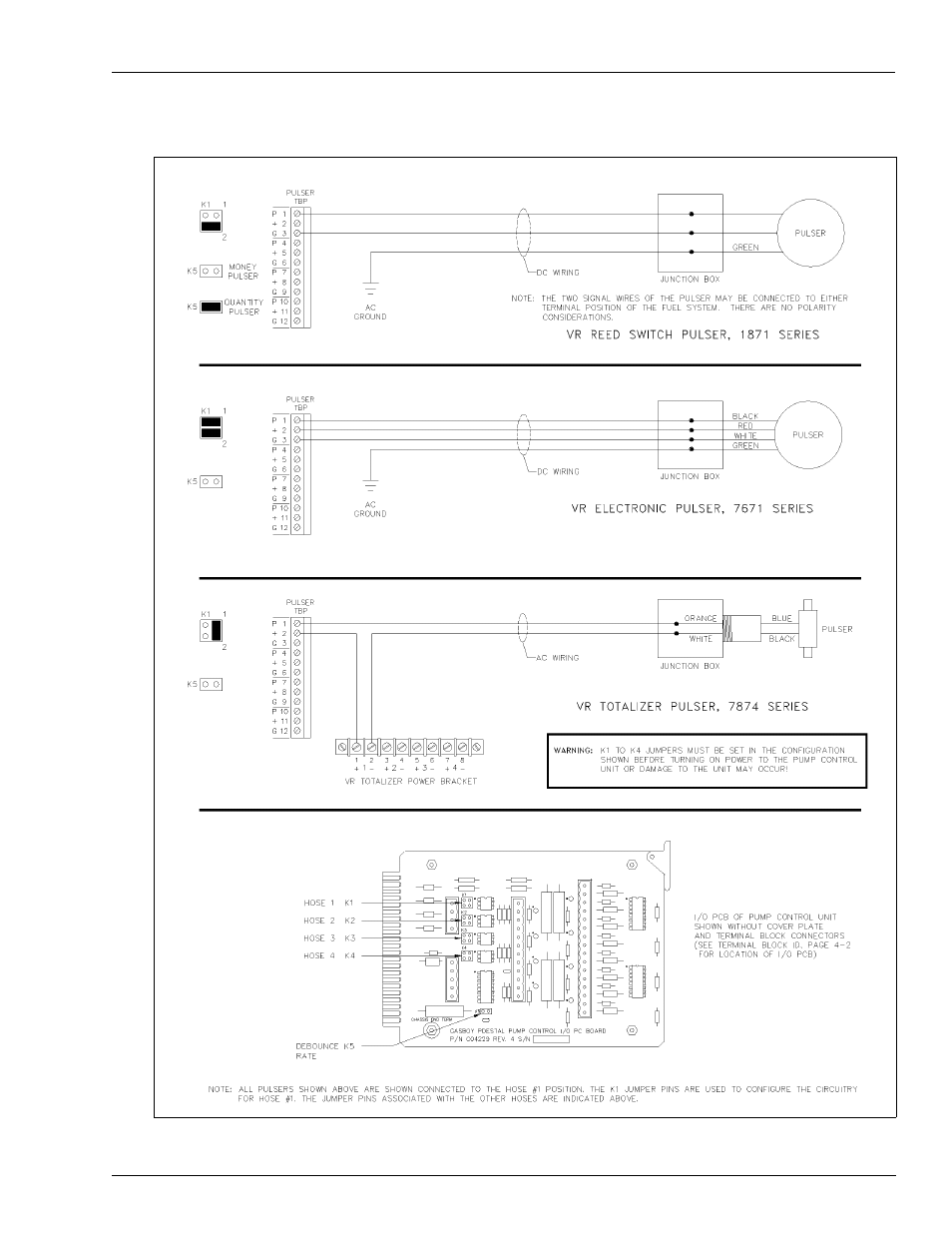

Figure 8-10: Wiring Diagram: Pulsers
