Serial-to-LAN Connection Installation
11 – Serial-to-LAN Connection Installation
A serial-to-LAN converter ( Figure 11-1 ) can be used ( Figure 11-2 on page 124 ) to connect to
the TopKAT over a LAN and/or over the Internet. With the appropriate configuration, the
TopKAT can be polled via the serial to LAN converter using the Gasboy polling software.
Refer to MDE-4520 Enhanced Communications Installation Manual for more specific
information regarding installation of this device with TopKAT and other Gasboy fuel
management systems.

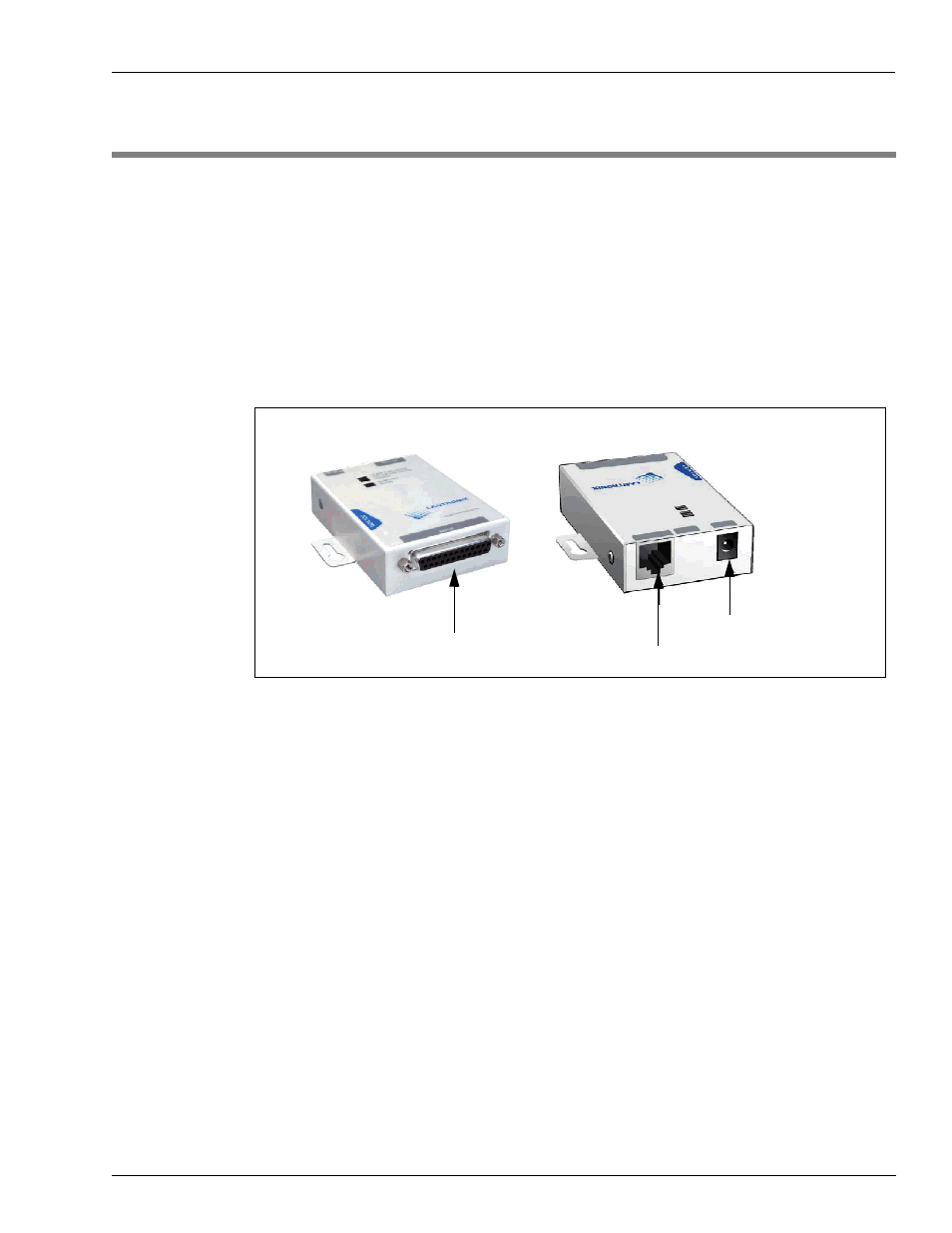

Figure 11-1: Serial-to-LAN Converter
Serial Connector End LAN Connector End
CAT-5 LAN connection
Power Supply Connection
DB-25 Serial connection
