MDE-4319E TopKAT™ Fuel Management System Installation Manual · August 2008

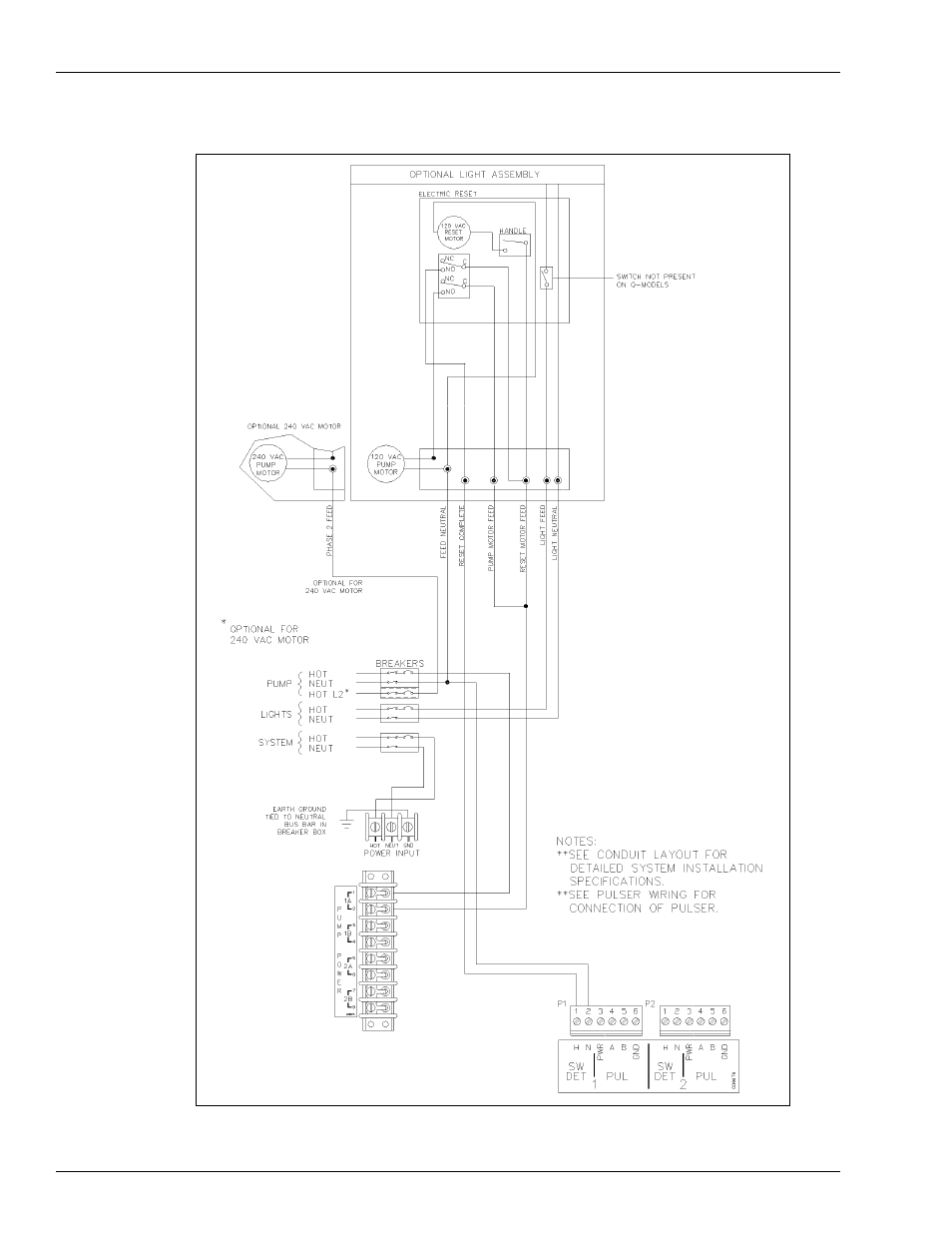

Figure 7-11: Wiring Diagram: Single Suction Pump, 115 VAC/230 VAC, Gasboy Reset
Note: For units with two motors, the pump may have to be operated at 240 VAC to limit the
AC current required.
