November 2014
Identifying encoder output signals (encoder interfaces)
25
4
Identifying encoder output signals (encoder interfaces)
4.1
Incremental interfaces

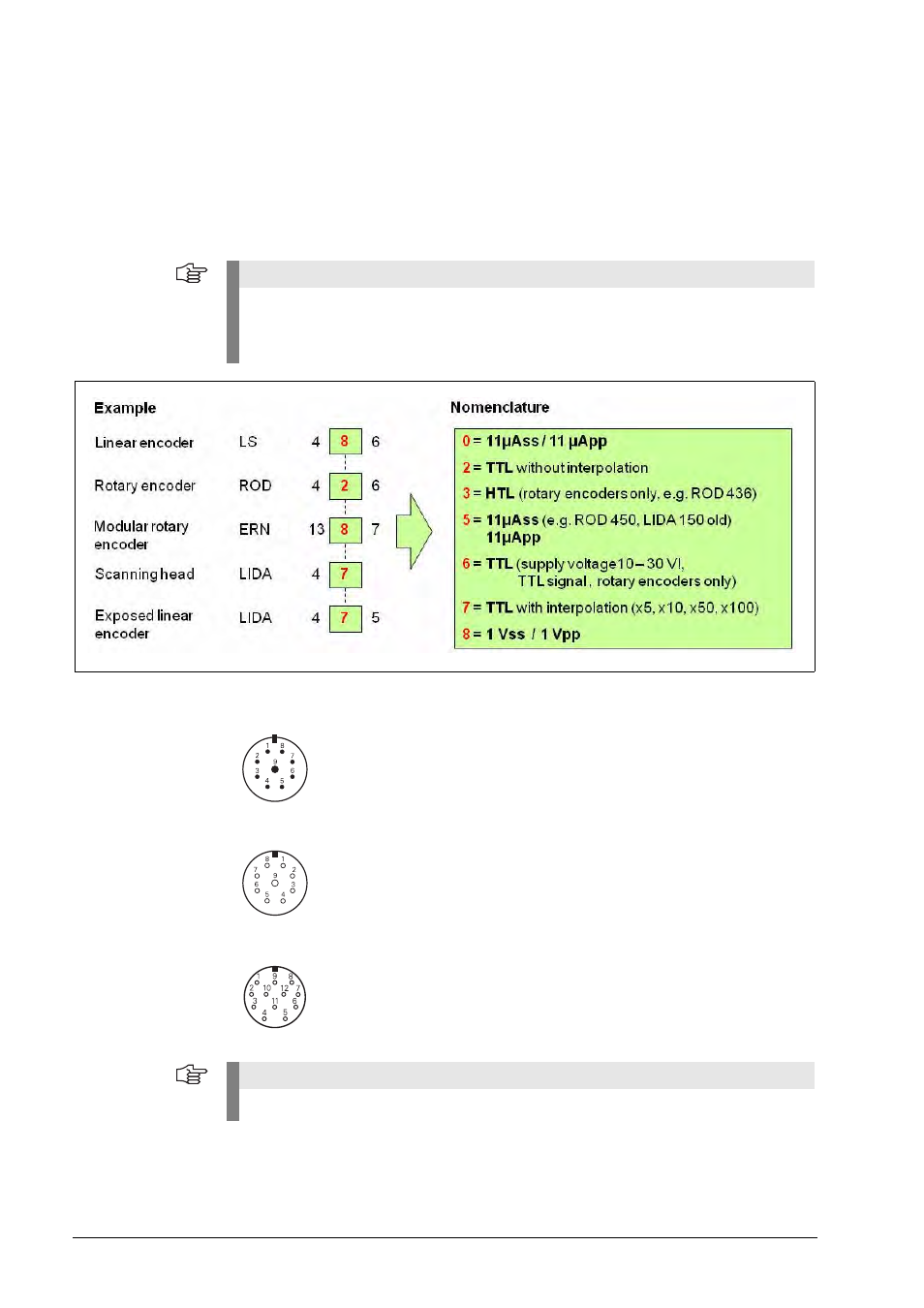

Determine interface
from encoder
designation
Other identifiers
A 9-pin M23 connector always means an 11 µApp interface.
Encoders connected to the encoder inputs of EXE interpolation electronics are always
11 µApp encoders.
Encoders connected to the encoder inputs of IBV interpolation electronics are always
1 Vpp encoders.
Note
The identification of the interface type applies to standard HEIDENHAIN encoders.
Deviations from the designation structure are possible (in particular with customer-specific
encoders).
Note
For encoders with D-sub connectors no conclusions can be made about the interfaces.
