4.2 EtherNet/IP Transmission Definition
4.2.6 I/O Status Tab Page
4-13
4
EtherNet/IP
T
ransmission
Definition

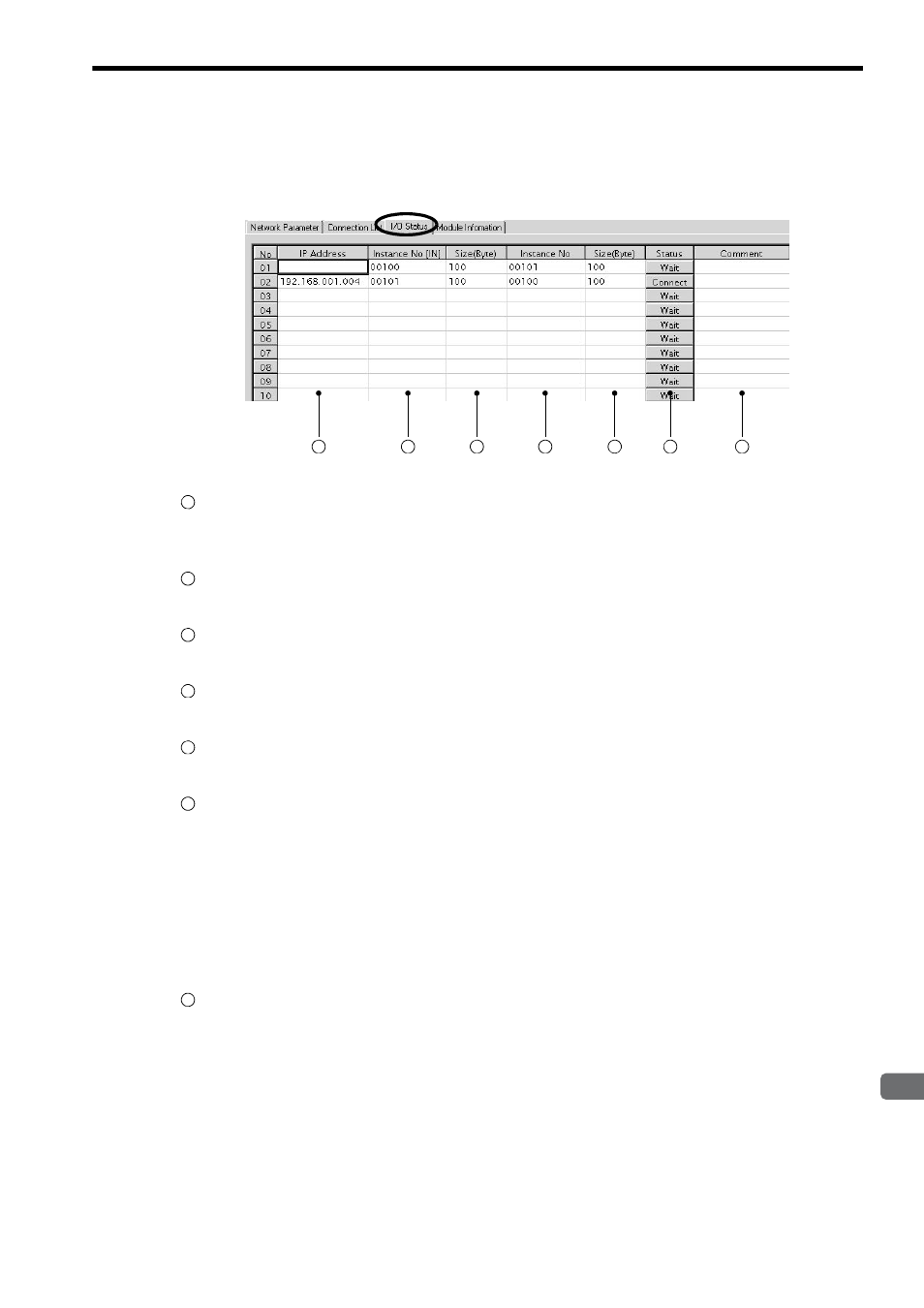

4.2.6 I/O Status Tab Page
The I/O Status tab page displays the I/O status of the devices assigned on the Connection List tab page.
On this tab page, setting is not possible.
The following explains each item displayed on the I/O Status tab page.
IP Address
Displays the IP address of the corresponding device.
For devices set as Adaptor, IP address is not displayed.
Instance No. [IN]
Displays the input instance number assigned to the corresponding device.
Size (Byte)
Displays the size of the input area (IWxxxx to IWyyyy) allocated to the corresponding device in bytes.
Instance No. [OUT]
Displays the output instance number assigned to the corresponding device.
Size (Byte)
Displays the size of the output area (OWxxxx to OWyyyy) allocated to the corresponding device in bytes.
Status (button)
Displays the I/O status of the devices in the form of a button.
The status is displayed as shown below.
Wait: The status in which communication has not started.
Connect: The status in which communication is in progress.
Pause: The status in which communication has stopped for some reason, although it did start.
The Status Detail window opens when the status button (Wait/Connect/Pause) is clicked. Details of the I/O sta-
tus of the corresponding device can be monitored in the Status Detail window.
ΠFor details on the Status Detail window, refer to 4.2.7 Status Detail Window on page 4-14.
Comment
Displays the comment set for the corresponding device.
1 2 3 4 5 6 7
1
2
3
4
5
6
7
