Dc coupling cv control via ableton® live cv tools – Solid State Logic SSL 12 USB Audio Interface User Manual
Page 32

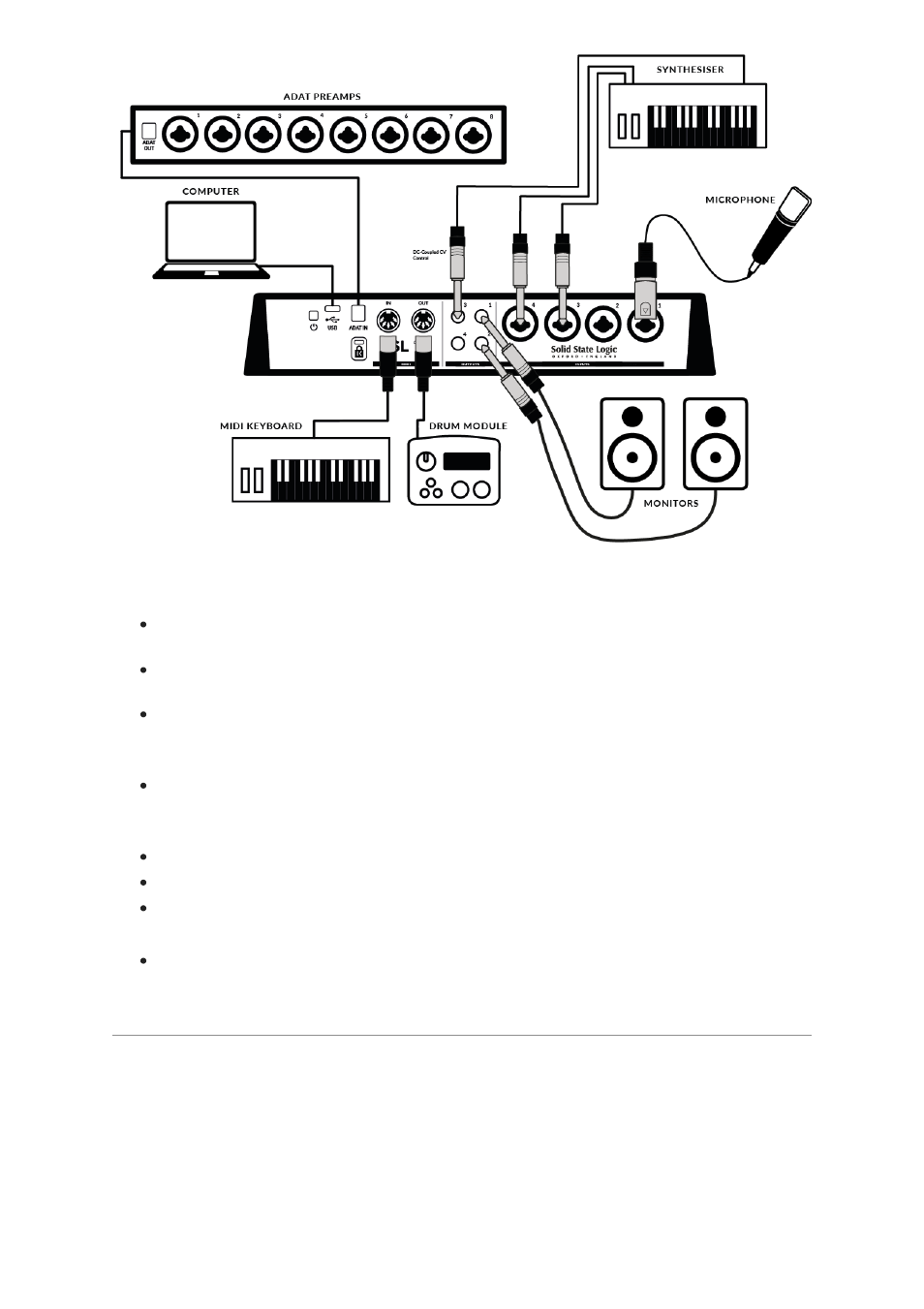

This diagram shows the following:
A microphone plugged into
INPUT 1
, using an XLR cable
A Stereo Synthesiser plugged into
INPUT 3&4
, using jack cables
Monitor speakers plugged into
OUTPUT 1
(Left) and
OUTPUT 2
(Right), using
TRS jack cables (balanced cables)
A TS cable sending DC (+/-5V) out of
OUTPUT 3
signal to the Synthesiser to
control CV parameters.
MIDI OUT
to trigger a Drum Machine
MIDI IN
from a MIDI Control Keyboard
ADAT IN
from an ADAT-enabled Preamp rack feeding 8x Channels of INPUT
signal to the DIGITAL IN Channels of the SSL 12 360° Mixer
USB cable connecting SSL 12 to the computer
DC Coupling CV Control via Ableton® Live CV Tools
All Outputs on the SSL 12 are
DC-coupled
(1, 2, 3, 4 and Headphone A and
Headphone B when set to
Line Output Mode
) and able to send +/-5v signal to allow
CV control to Semi & Modular Synths, Eurorack and CV-enabled outboard FX. This
allows the Headphone outputs to be used to send Control Voltage from the front
output pairs.
When using
DC-coupled
outputs there are a few things to keep in mind:
