10 User Guide
V1.1.0 Issue 1

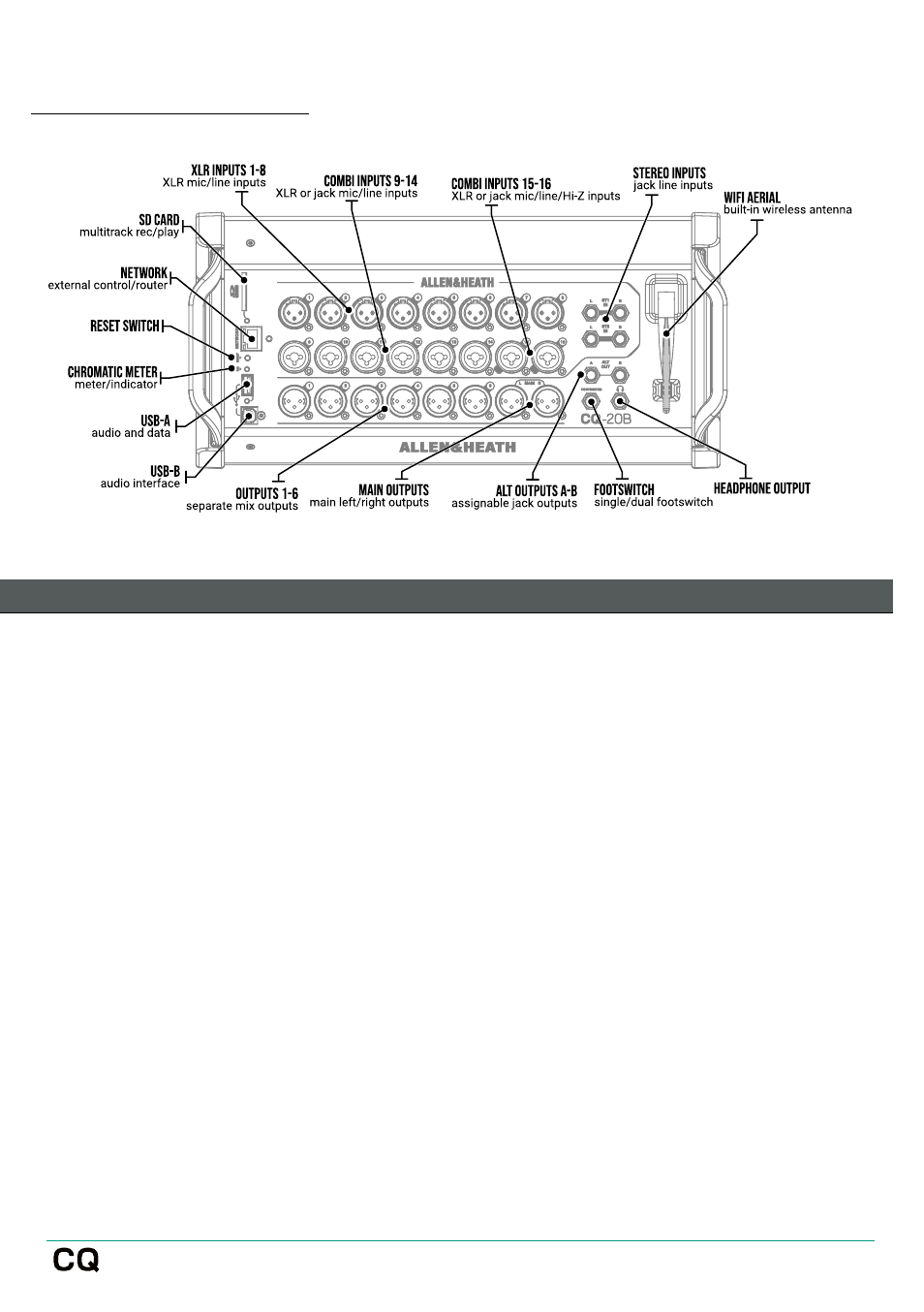

CQ-20B Hardware Overview
Images and examples in this guide
This guide uses screenshots from the CQ-18T, which includes all the features of the
CQ-12T and more.
CQ-MixPad, used to control all models, has an almost identical user interface with a
few layout differences (listed in the
CQ-MixPad section of this guide) and so is not
shown in addition.
Features specific to any model or interface are noted.
