64 User Guide
V1.1.0 Issue 1

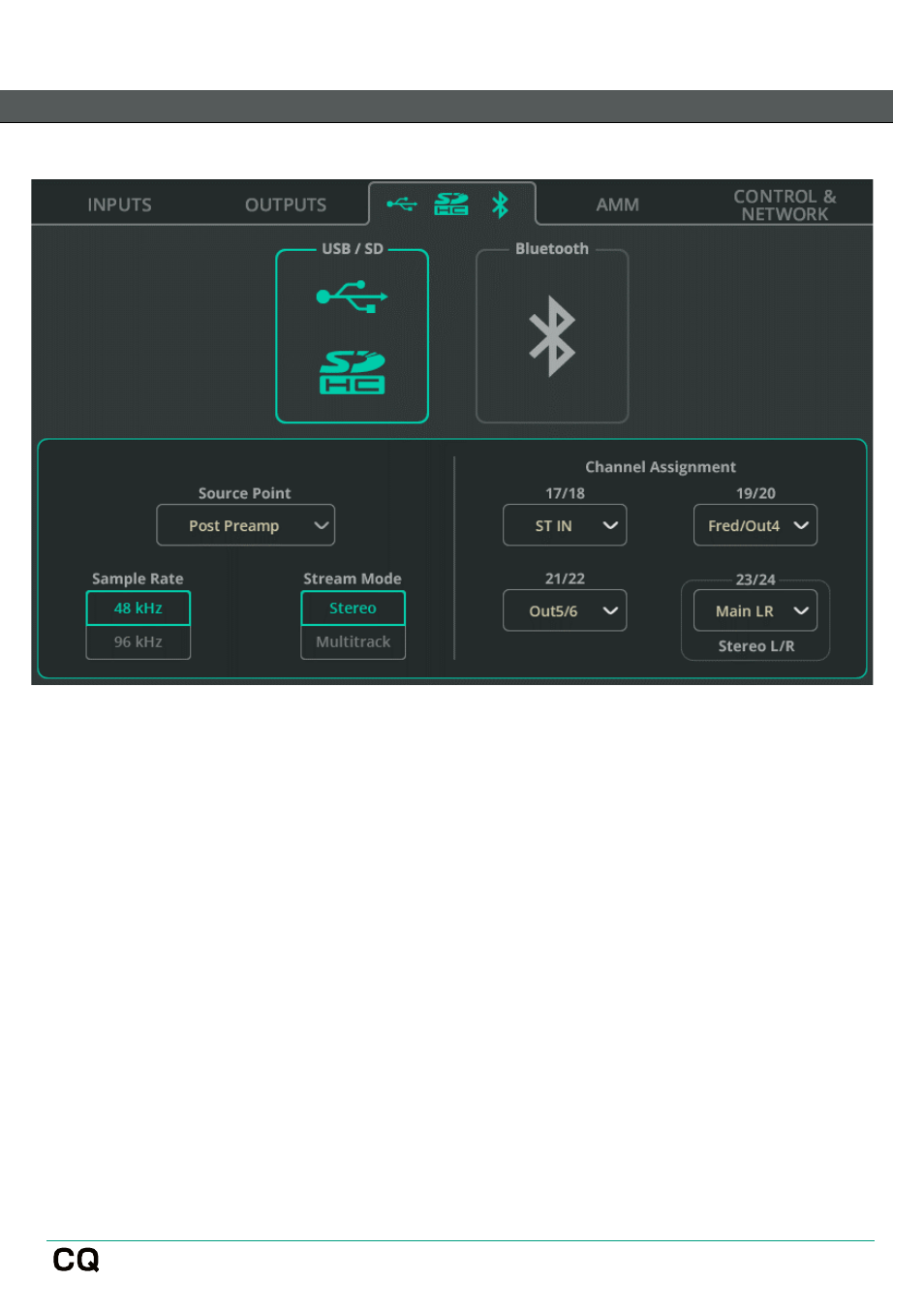

Digital Audio (Symbols) / USB/SD
Source Point – Choose whether the signal being sent to USB/SD from input
channels includes no input channel processing, some processing, or all processing.
Sample Rate – Select between 48kHz or 96kHz. This affects USB-A recording, the
USB-B connection to a computer and SD recording. With SD recording on the CQ-
18T and CQ-20B, up to 16 channels can be recorded or played back at 96kHz and all
available channels can be recorded or played back at 48kHz.
 SD card playback of 48kHz multitracks is not possible when set to 96kHz and vice
versa.
Stream Mode – Select between a Stereo or Multitrack output for the USB-B
connection. When set to Stereo, the output signal is that set in the Channel
Assignment labelled ‘Stereo L/R’.
Set to Stereo for streaming or recording with mobile devices that do not support
multichannel audio devices.
Set to Multitrack for multichannel recording to and from a DAW.
