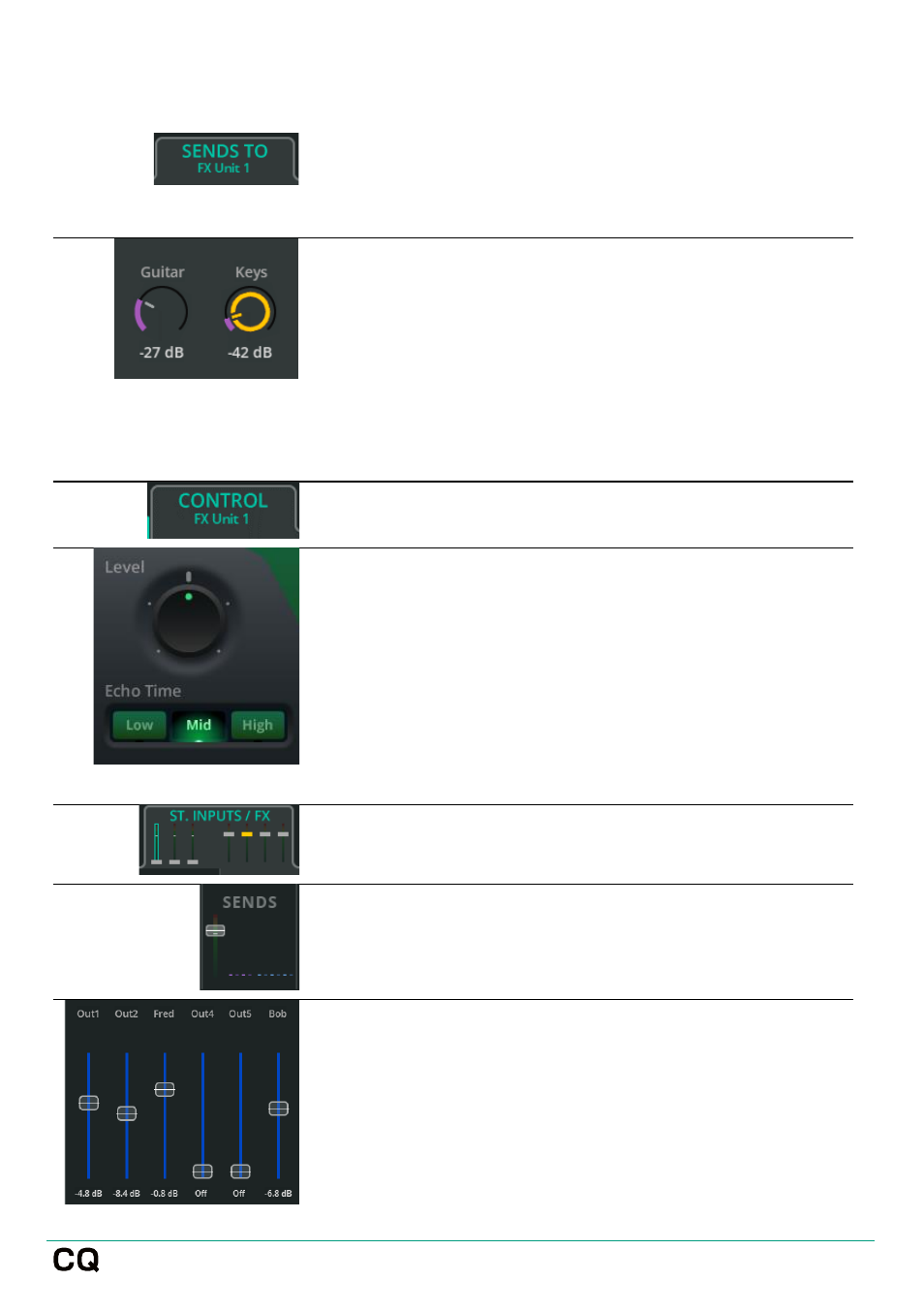

Switch to the

SENDS TO

tab at the top to

display all channel sends to the selected FX
Unit.

Select and adjust individual send levels to
the FX Unit from each channel. Note that
these send levels are the same as can be
viewed on each channel from the

PROCESSING

SENDS

screen. They can

also be adjusted using faders from the

FADER

screen by using

Sends to

and

selecting an FX Unit.

Switch back to the

CONTROL

tab.

10.

Adjust FX parameters. (Refer to the

section

of this guide for a detailed

description and configuration of each FX).
Also set Mute Mode:

Trails On

–

Delays and reverbs decay

naturally after muting.

Trails Off

–

Delays and reverbs stop

immediately when muted.

11.

In the

PROCESSING

screen, select the

ST.

INPUTS / FX tab

12.

Select the FX Unit channel, then touch/click

SENDS

to show all send levels from that FX

Unit.

13.

Adjust send levels to Main LR, other FX Units
and Outputs 1-6 as required, so the FX is
heard only where it should be.
